Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- LAS1-22F-I
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:

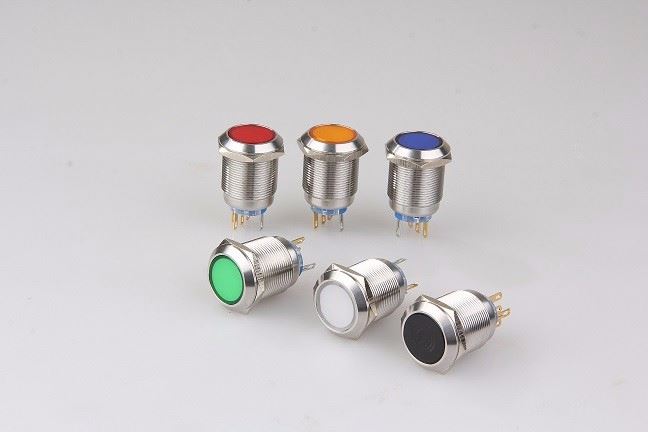

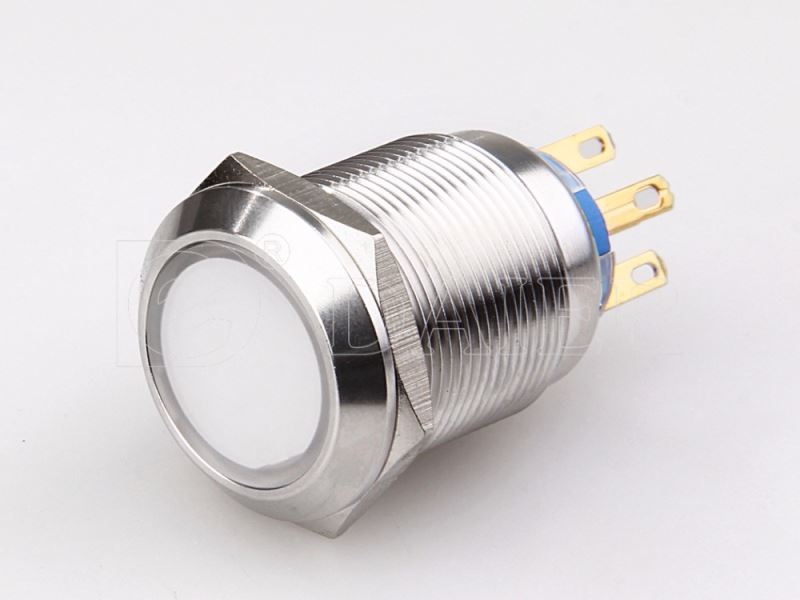

- 22mm Illuminated Stainless Steel Start Stop Push Button Engine Green
- Function:
- Latching/Momentary
- Led color:
- Red Yellow White Blue Green Orange
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5.5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Button Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- LAS1-22F-Iis 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
LAS1-22F-I
Specifications:
1. Rating: 5A 250VaC
2. Function: Latching/Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000MΩ Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
