22mm Concave Button Ring Illuminated 12V Metal Soft Touch Switch

Click on the image to view the original image

Product：	views：222mm Concave Button Ring Illuminated 12V Metal Soft Touch Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:15

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PZ22C-10E

Protection Level:: IP67

Max. Current:: 5A

Max. Voltage:: 250V

Item number:: 22mm Concave Button Ring Illuminated 12V Metal Soft Touch Switch

Function:: Momentary(Latching is available)

Led color:: Red Yellow White Blue Green

Mounting hole:: 22mm

Terminal:: Wired leads

Front head:: Concave

Material:: Stainless Steel

Housing color:: Silver.Black.Red.Yellow.Blue.Green

Operating Temperature:: -20°C ~+55°C

Electric life:: 50,000 cycles

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 1.3 kg

Package Type:: PZ22C-10Eis 40pcs/box

Lead Time:

Quantity(Piece)	1 - 40000	>40000
Est. Time(days)	10	To be negotiated

Our adventage

Product Description

Product Name	22mm Concave Button Ring Illuminated 12V Metal Soft Touch Switch
Rating	5A 250VAC
Mounting Size	22mm
IP Class	IP68
Function	Momentary(Latching is available)
Wire Size	24AWG 30mm

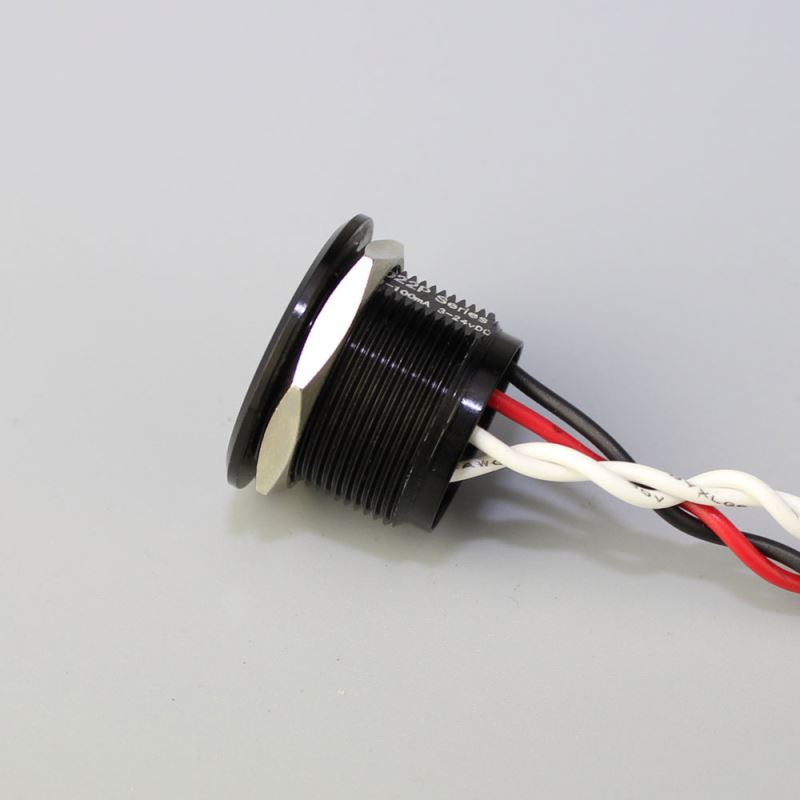

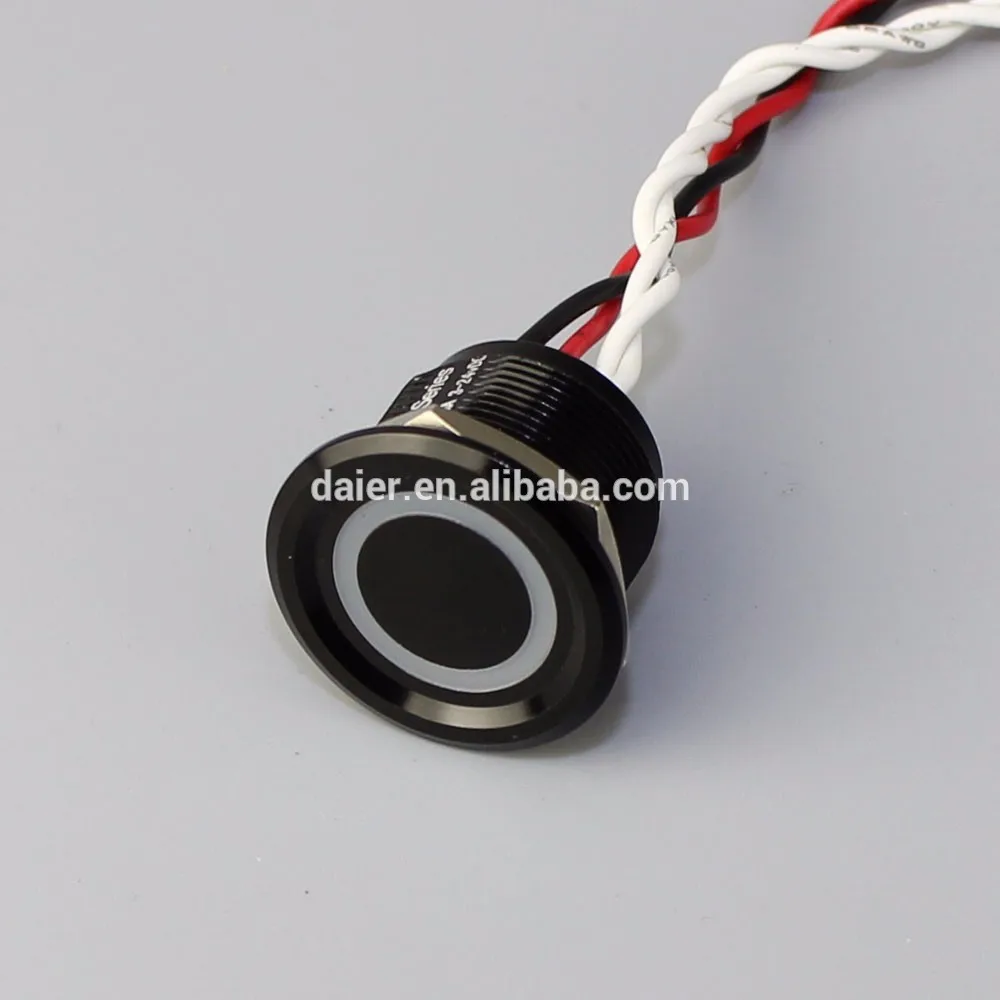

Products Show

PZ22C-10E

Specifications:
1. Rating: 5A 250VaC
2. Function: Latching/Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles

8. Operating Force: 5.5N

Piezo switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
