Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- LAS3-19F-11E
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:

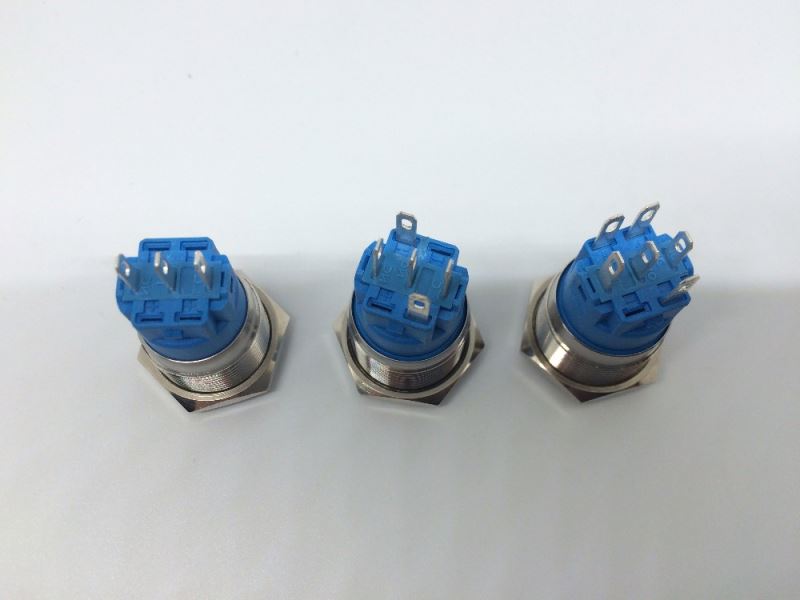

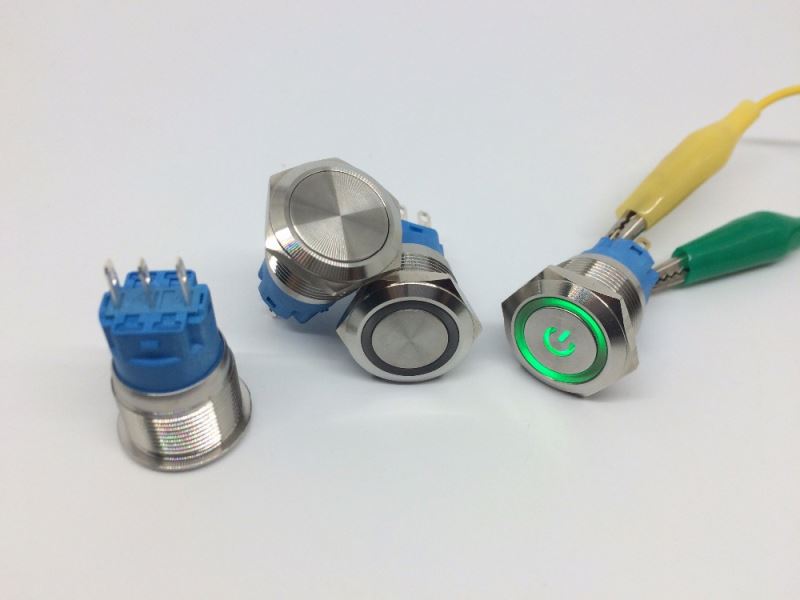

- 19mm Flat Ring IP67 Bi-Color Momentary LedPush Button Switch
- Function:
- SPDT 1NO 1NC
- Operational Force:
- 2~4N
- Contact Resistance:
- 30 mΩ max
- Insulation Resistance:
- 500V DC100MΩ Min
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Stainless Steel / Copper Plating
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- 19mm Flat Ring IP67 Bi-Color Momentary LedPush Button Switch is 20pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 10 To be negotiated
