Home > Products > 773 60A Terminal Block
773 60A Terminal Block
Click on the image to view the original image
Product： views：2773 60A Terminal Block
Branch： Daier
Type： Plug-in
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:16
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
773 Series
Number of Contacts:
1 - 10
Conductor Size:
11 - 20 AWG
Type:
Plug-in
Item:
773 Series
Rated Current:
24A
Rated Voltage:
400V
Plastic Parts:
PC
Shrapnel:
Stainless Steel
The Number of Poles:
2/4/6/8 Poles
Strip Length:
12 mm
Free Sample:
Available
Operating temperature:
-40~+105℃
OEM&ODM:
Yes

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X13X6 cm
Gross weight per batch:
0.8 kg
Package Type:
1000pcs a box of 773 60A Terminal Block
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)10To be negotiated

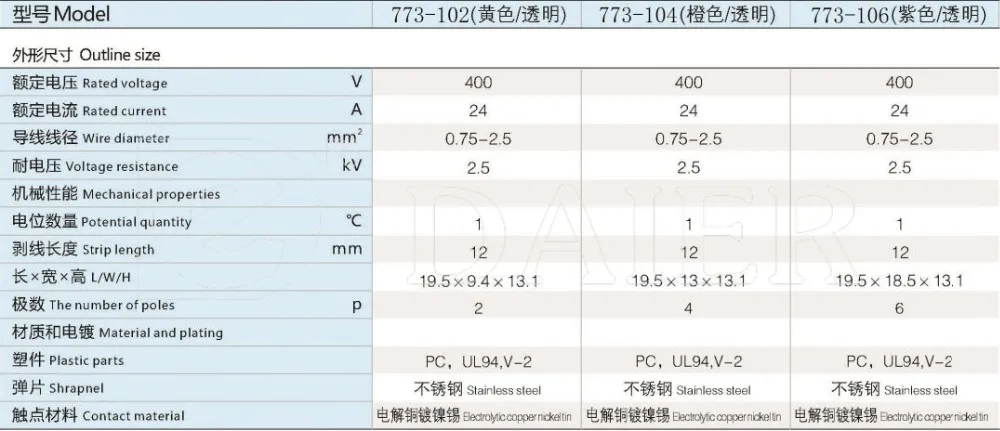

Product Description
Product Name
773 60A Terminal Block
Rating
24A 400V
Item
773-102 / 773-104 / 773-106 / 773-108
Strip Length
12 mm 60A Terminal Block
Plastic Parts
PC
Shrapnel
Stainless Steel

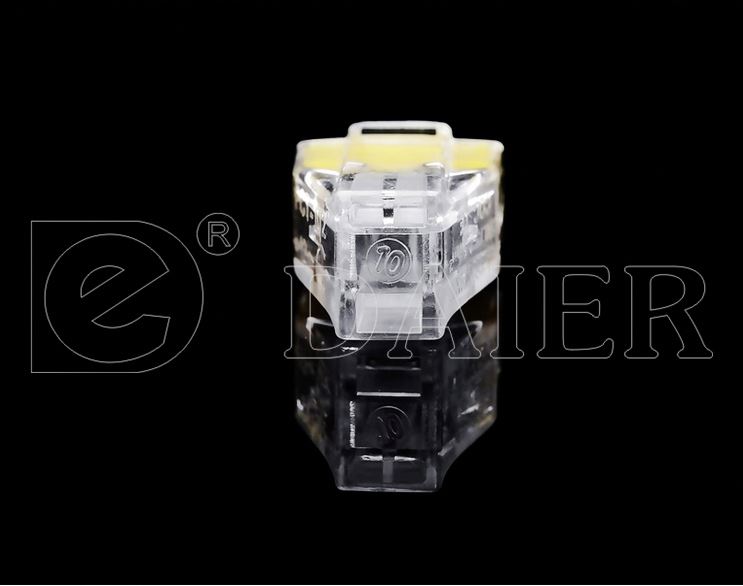

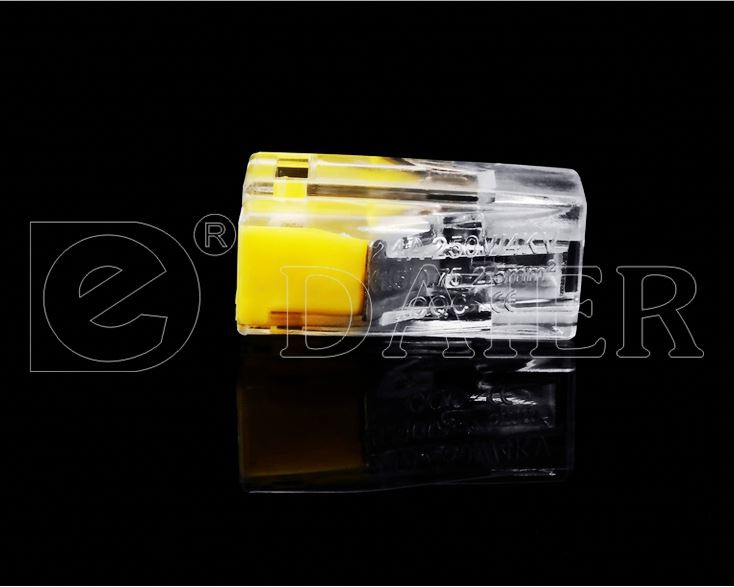

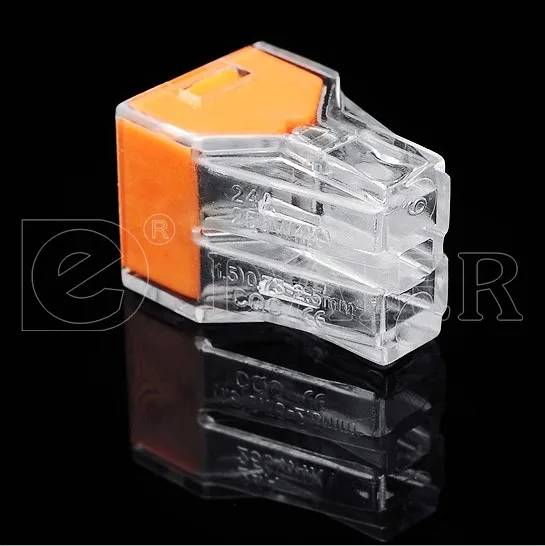

Products Show

The 773 series terminal block connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm². The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.


773 terminal block connector meet the most stringent UK and international standards including the electrical requirements of BS7671 17th Edition. Installers can be totally confident that using 773 terminal block connector enables them to follow "best practice" procedures and fully comply with the most up to date safety criteria.
