Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- A16-20SR-B
- Protection Level:
- IP65
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:
- Start Stop Push Button
- ContactConfiguration:
- DPST
- Body Color:
- Yellow
- Button Color:
- Red
- Button Shape:
- Dome Button
- Contact Resistance:
- 50mΩ Max
- Operation Force:
- 3~6N
- Mechanical Life:
- 1,000,000 cycles Min
- Operation Temperature:
- -40°C~+70°C
- IP Class:
- IP65
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 0.6 kg
- Package Type:

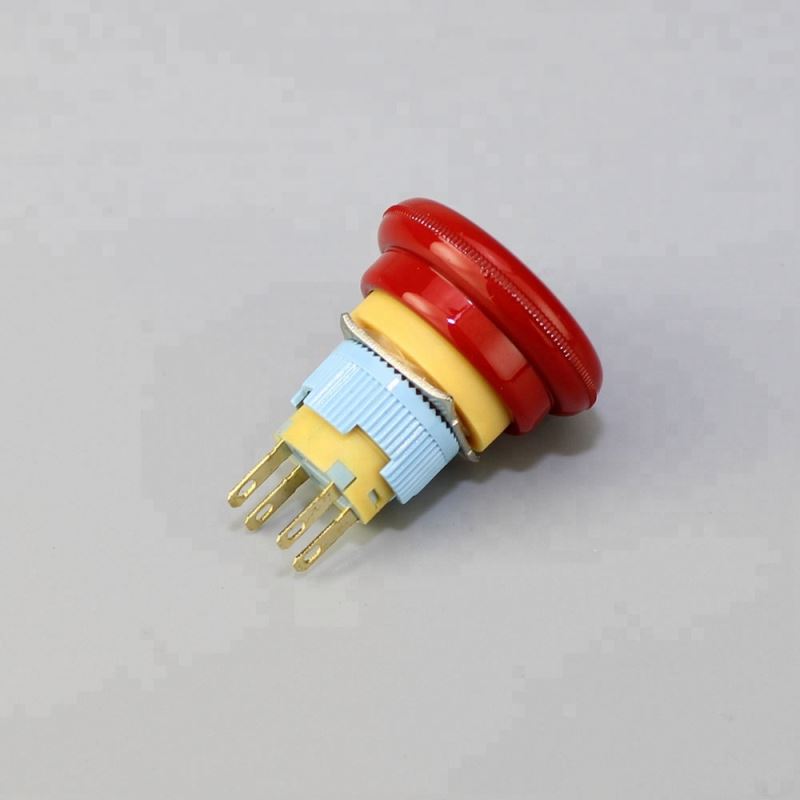

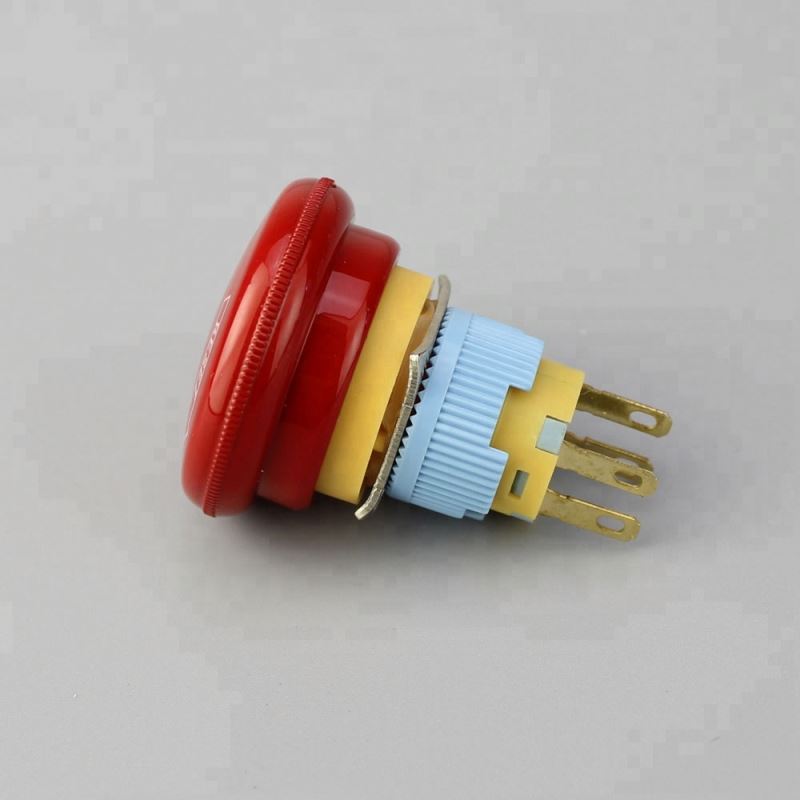

- 16MM Dome Button 4Pin Plastic Emergency Start Stop Push Button is 40pcs/box.
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
