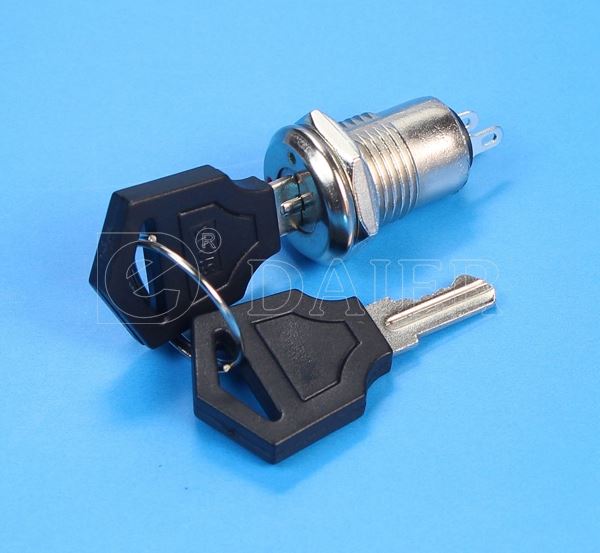

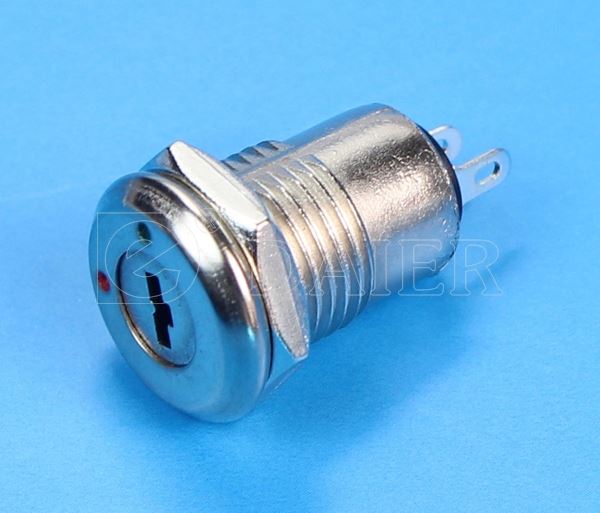

Keylock 12mm SPST 2pin Soldering Terminal ON-OFF Flat Key Lock
Click on the image to view the original image
Product： views：5Keylock 12mm SPST 2pin Soldering Terminal ON-OFF Flat Key Lock
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:23
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KS-01-101C
Item number:
Flat Key Lock
Function:
SPST
Mounting Size:
12MM
Contact Resistance:
100 mΩ max
Insulation Resistance:
500V DC100MΩ Min
Dielectric Strength:
500VAC
Mechanical Life:
5000 cycles
Operating Temperature:
-25°C ~+85°C
Rating Load:
0.5A 250VAC; 0.5A 24VDC
Air Pressure:
86Kpa-106Kpa

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X20X10 cm
Gross weight per batch:
1.5 kg
Package Type:
Keylock 12mm SPST 2pin Soldering Terminal ON-OFF Flat Key Lock 100pcs/box
Lead Time:
Quantity(Piece)1 - 500>500
Est. Time(days)7To be negotiated
Product Description
Product Name
Keylock 12mm SPST 2pin Soldering Terminal ON-OFF Flat Key Lock
Rating
0.5A  250VAC; 0.5A 24VDC
Mounting Size
12mm
Function
SPST
