Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KS-01-101C
- Item number:
- Electronic Key Lock
- Function:
- SPST
- Mounting Size:
- 12MM
- Contact Resistance:
- 100 mΩ max
- Insulation Resistance:
- 500V DC100MΩ Min
- Dielectric Strength:
- 500VAC
- Mechanical Life:
- 5000 cycles
- Operating Temperature:
- -25°C ~+85°C
- Rating Load:
- 0.5A 250VAC; 0.5A 24VDC
- Air Pressure:
- 86Kpa-106Kpa
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 25X20X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:

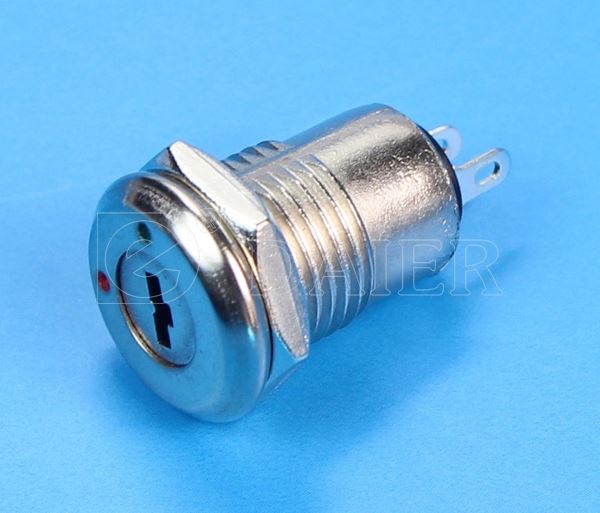

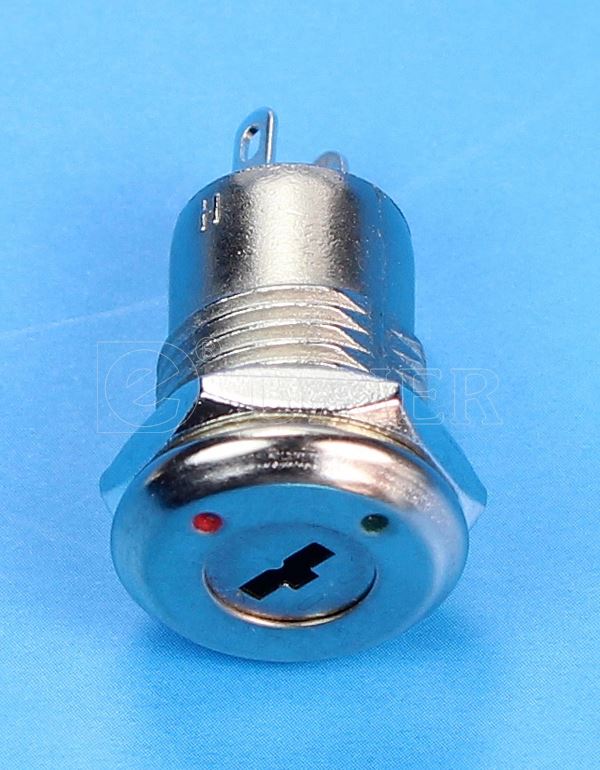

- Keylock 12mm SPST 2pin Soldering Terminal ON-OFF Electronic Key Lock 100pcs/box
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 7 To be negotiated
