Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KS-03-101
- Item Number:
- Key Switch Key
- Function:
- SPST
- Mounting Hole Size:
- 12MM
- Rating Load:
- 0.5A 250VAC; 0.5A 24VDC
- Mechanical Life:
- 5000 cycles
- Contact Resistance:
- ≤100mΩ
- Insulating Resistance:
- ≥100mΩ 500V DC
- Dielectric Strength:
- 500VAC
- Operating Temperature:
- -25°C ~+85°C
- Air Pressure:
- 86Kpa-106Kpa
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 25X20X10 cm
- Gross weight per batch:
- 1.7 kg
- Package Type:

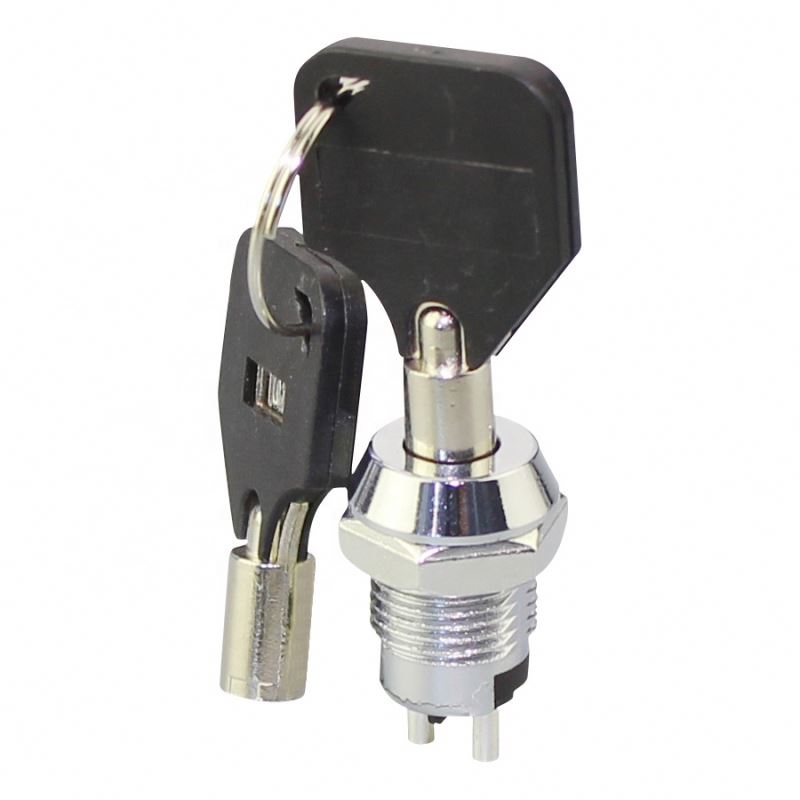

- Keylock 12mm SPST ON-OFF 2Pin Terminal Key Switch Key is 100pcs/box
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
