Home > Products > PBS-24-302(312), 110v/220v foot switch
PBS-24-302(312), 110v/220v foot switch
Click on the image to view the original image
Product： views：5PBS-24-302(312), 110v/220v foot switch
Branch： Daier
Type： PBS-24-302(312), 110v/220v foot switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:23
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
PBS-24-302(312)
Protection Level:
IP40
Max. Current:
4A
Max. Voltage:
30VDC
Type:
PBS-24-302(312), 110v/220v foot switch
Color:
Blue(Black/Red/Red brown)
Function:
3PDT Alternate ON-ON/ Momentary ON-(ON)
Panel mounting hole:
12mm

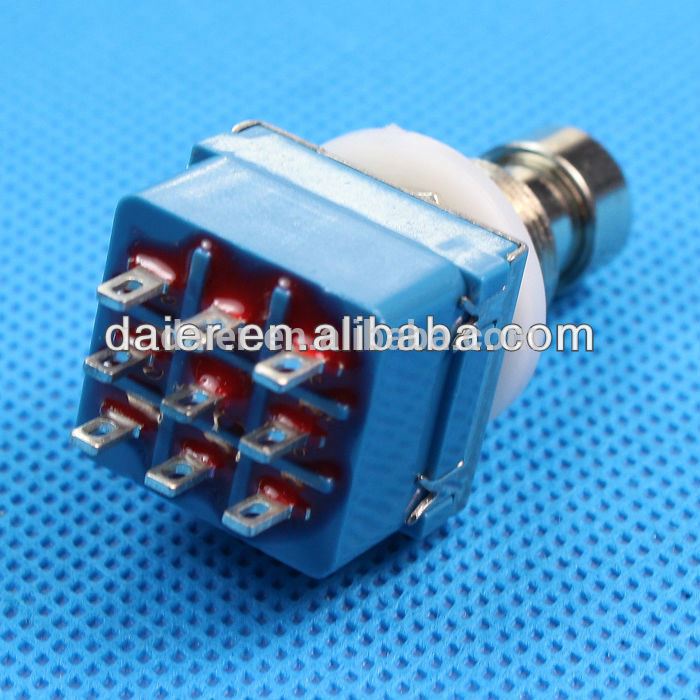

Terminal:
solder 9pins
Accessory:
Nut and washer
Weight:
0.023KGS/PCS
Package:
50pcs/bag
Material:
Copper
OEM:
Accepted

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
20X20X10 cm
Gross weight per batch:
0.75 kg
Package Type:
PBS-24-302(312), 110v/220v foot switch is 25pcs/bag
Picture Example:
package-img
package-img
Lead Time:
Quantity(Piece)1 - 25000>25000
Est. Time(days)10To be negotiated
Our adventage
Product Description
Product Name
PBS-24-302(312), 110v/220v foot switch
Rating
3A 250VAC; 6A 125VAC
Funtion
ON-ON/ON-(ON)
Color
Blue/Black/Red/Red brown
Electonical Life
50,000 Cycles
Temperature
T85
Operating Force
≤0.25N
Products Show

PBS-24-302(312)

Foot Switch Series:

Rating: 3A 250VAC ; 6A 125VAC

Insulation Strength:≥100MΩ

Contact Resistance:≤100MΩ

Test Voltage: ≥1500V AC/5S

Electonical Life：50,000 Cycles

Temperature: T85

PBS-24-302(312)

Foot Switch Series:Widely used in guitar effect enclosure,volume pedal and music equipment.

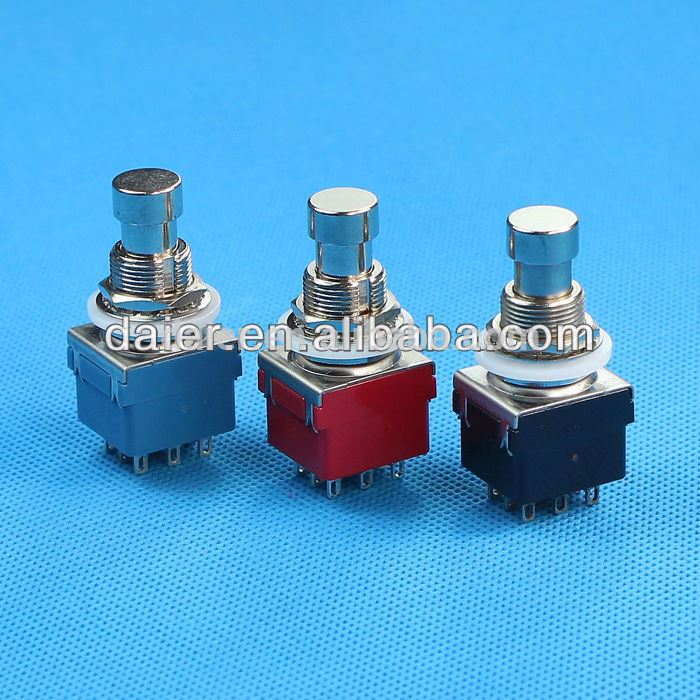

More color can be choosed: Brown Red, Blue, Red, Black  and Green.

Related Roducts

PBS-24B-4   2Pin Solder Terminal  SPST  OFF-(ON) Momentary Soft-Touch.

PBS-24-202(212)  6Pin Solder Terminal   DPDT ON-ON/ON-(ON) Function

PBS-24-402(412) 12Pin Solder Terminal  4PDT on-on/on-(on) Function

PBS-24-102P(112P) 3Pin Pcb Terminal   SPDT ON-ON/ON-(ON) Function
PBS-24-302-N LED illuminated 3PDT Footswitch Guitar
PBS-24-302P(312P) 9Pin on-on/on-(on) 3PDT Pcb Terminal
