Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-24-302
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:

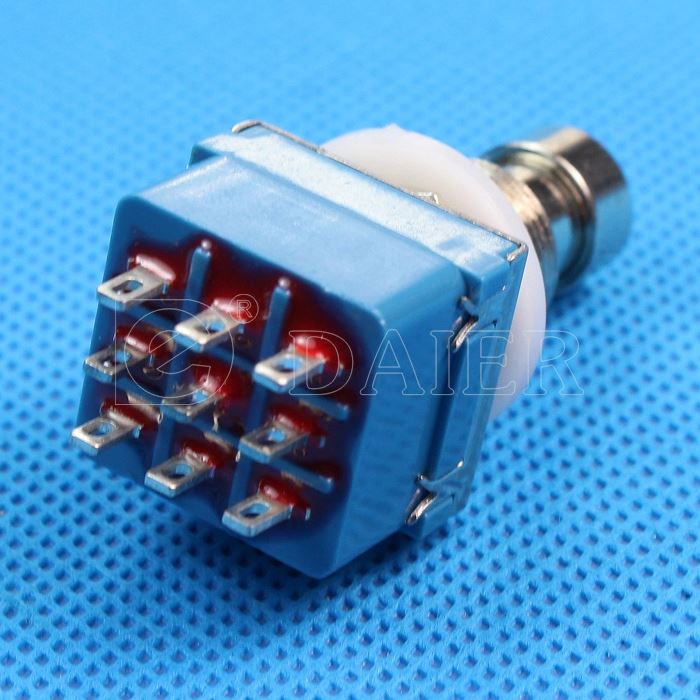

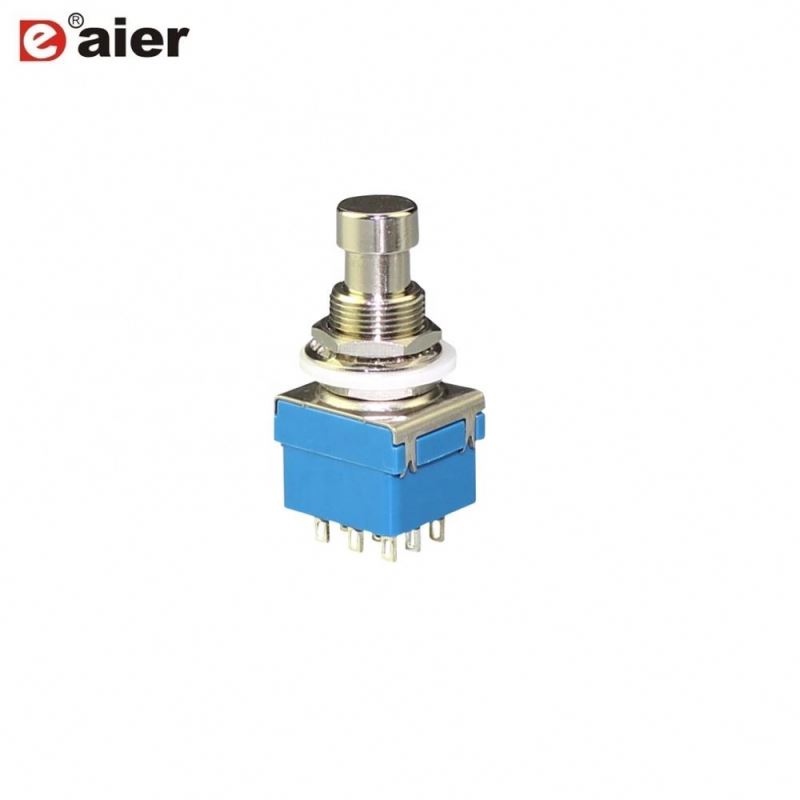

- 3PDT Foot Switch Daier
- Function:
- Latching
- Body Color:
- Blue, Green, Black, Brown, Red
- Button Color:
- Metal
- Insulation Resistance:
- 100MΩ Min
- Contact Resistance:
- 100mΩ Max
- Electric Life:
- 50,000 cycles
- Operation Force:
- 0.25N Max
- Operation Position:
- 14.6±0.5mm
- IP Class:
- IP40
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 9PIN Latching Soldering Type 3PDT Foot Switch is 50pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated
Product Description
Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:
Product Show
Related Roducts
1590A
1590B
PBS-24-202
KN-1900H
MTS-102-R
WH148-1A-1-18T
