Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-28B
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:

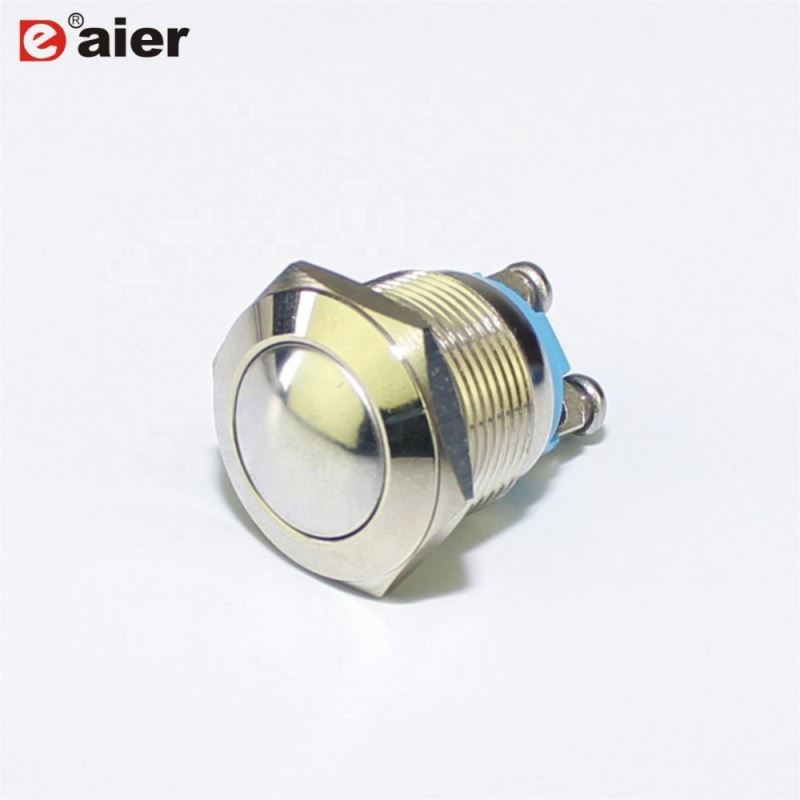

- Waterproof 19mm Pushbuttons, Spring Return
- Function:
- 1NO Momentary Metal Push Switch
- Operational Force:
- 5N Max
- Contact Resistance:
- 50 mΩ max
- Insulation Resistance:
- 500V DC1000MΩ Min
- Dielectric Strength:
- 2000V RMS 50~60Hz
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Stainless Steel / Copper Plating
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 0.8 kg
- Package Type:
- PBS-28BWaterproof 19mm Pushbuttons, Spring Return is 20pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 10 To be negotiated
