Home > Products > 8mm High button 24v push button door bell

8mm High button 24v push button door bell

Click on the image to view the original image

Product：	views：98mm High button 24v push button door bell
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:24

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: GQ-8HJ

Protection Level:: IP67

Max. Current:: 2A

Max. Voltage:: 36VDC

Item number:: Metal Push Button Switch

Panel Size:: 8mm

Function:: SPST Momentary

Terminal Type:: Soldering Terminal

Body Color:: Black/ Silver/Others

Button Shape:: High Button

IP Class:: IP67

Certificate:: CE, Rohs, CQC

OEM&ODM:: YES

Package:: 50pcs/box

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X15X10 cm

Gross weight per batch:: 1.0 kg

Package Type:: GQ-8HJ8mm Miniature 2 Pin SPST Momentary Metal Push Button Switchis 50pcs/box

Lead Time:

Quantity(Piece)	1 - 50000	>50000
Est. Time(days)	10	To be negotiated

Our adventage

Product Description

Product Name	8mm High button 24v push button door bell
Rating	2A 36VDC
Mounting Size	8mm
IP Class	IP67
Function	SPST NO Momentary
Body Color Avaliable	Black/ Silver/Others

Products Show

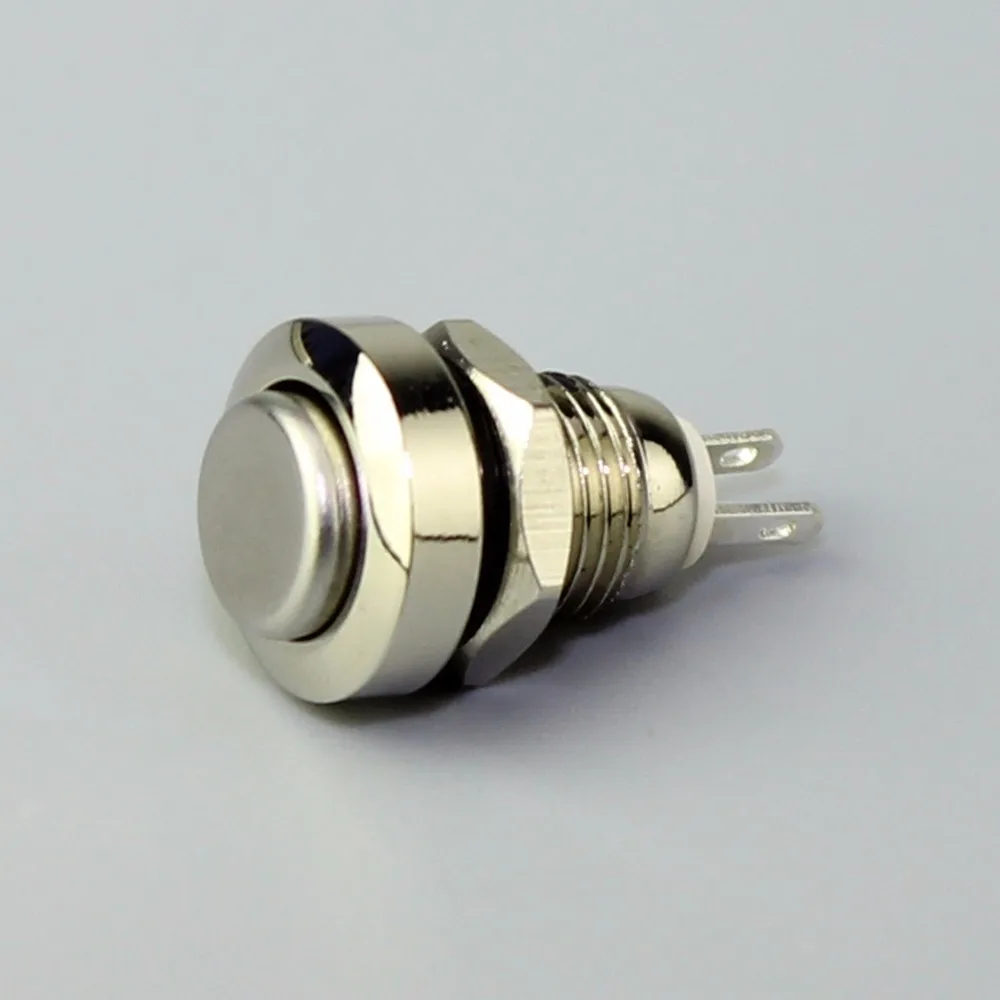

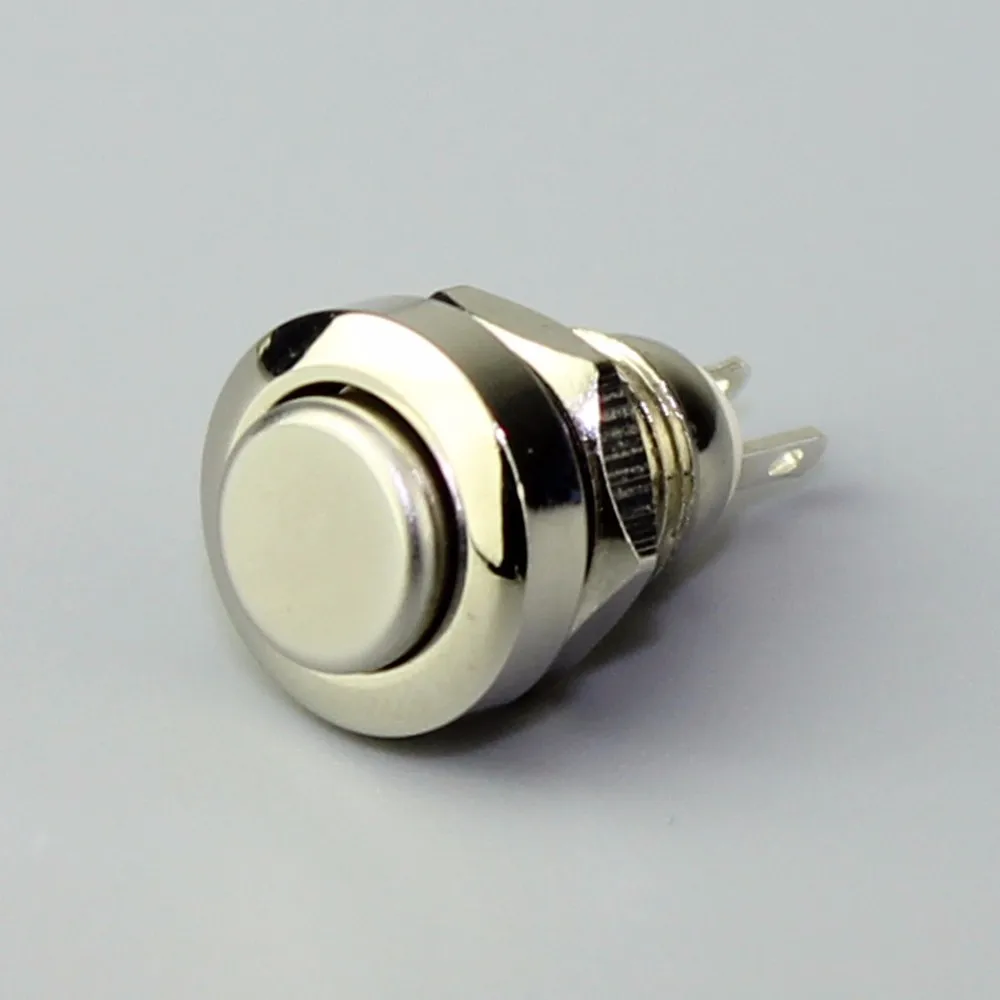

GQ-8HJ

Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000VAC
6. Operating Temperature:-20°C~+55°C
7. Function: 1NO Momentary
8. IP Class: IP67 protection
9. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
