- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- R16-503AD-K
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:

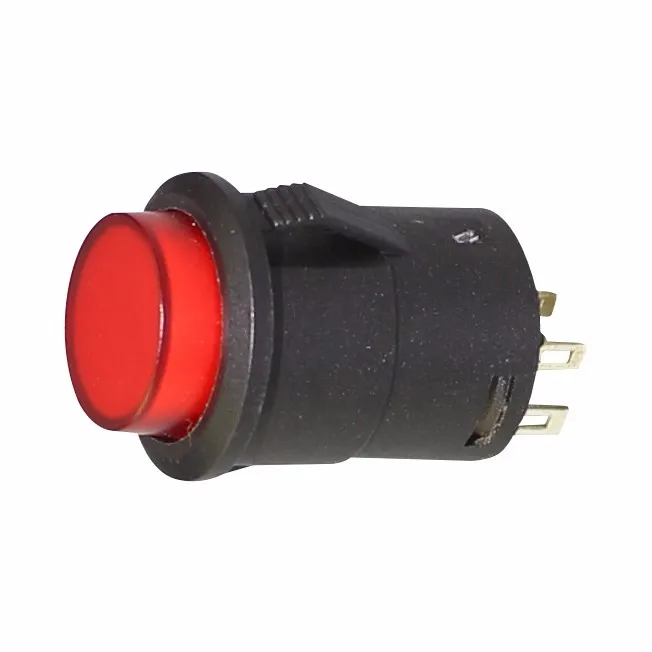

- 16mm SPST 4Pin Plastc 250VAC Latching Illuminated Push Button Switch
- Body Color:
- Black/Grey
- Function:
- Latching Button Switch
- Material:
- Plastic
- Operational Temperature:
- -25°C ~ +85°C
- Contact Resistance:
- 50 mΩ max
- Insulation Resistance:
- ≥100MΩ
- Dielectric Strength:
- AC 1500V 1Minute
- Electric life:
- ≥10,000 cycles
- approved:
- CQC. Rohs. CE
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- R16-503AD-K16mm SPST 4Pin Plastc 250VAC Latching Illuminated Push Button Switch is 100pcs/bag
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
R16-503AD-K
Specifications:
1. Rating: 3A 250VAC
2. Function: Latching Button Switch
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: AC 1500V 1 Minute
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: 10,000 Cycles Min
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
