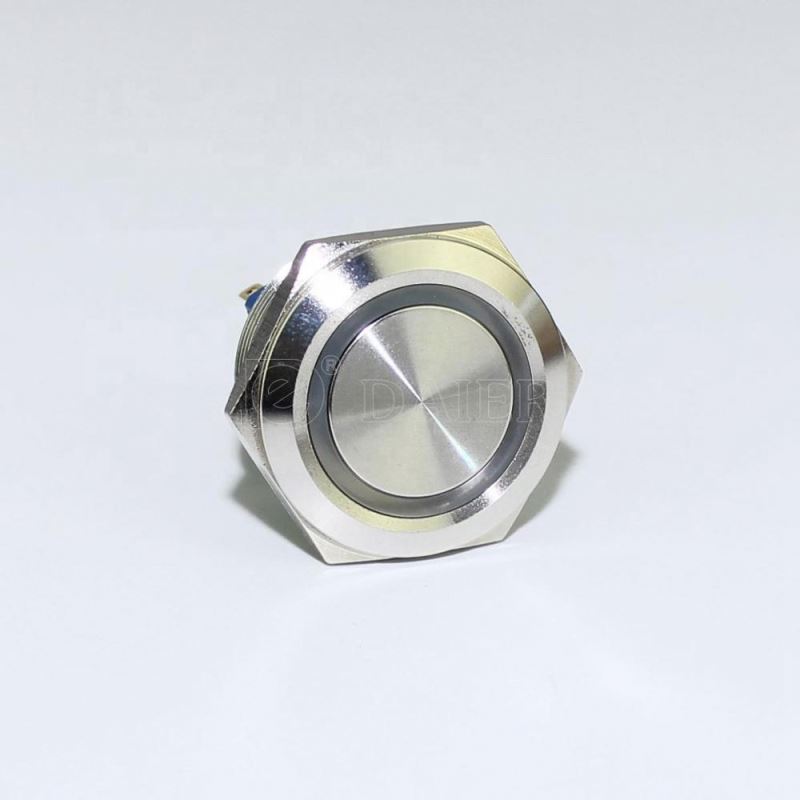

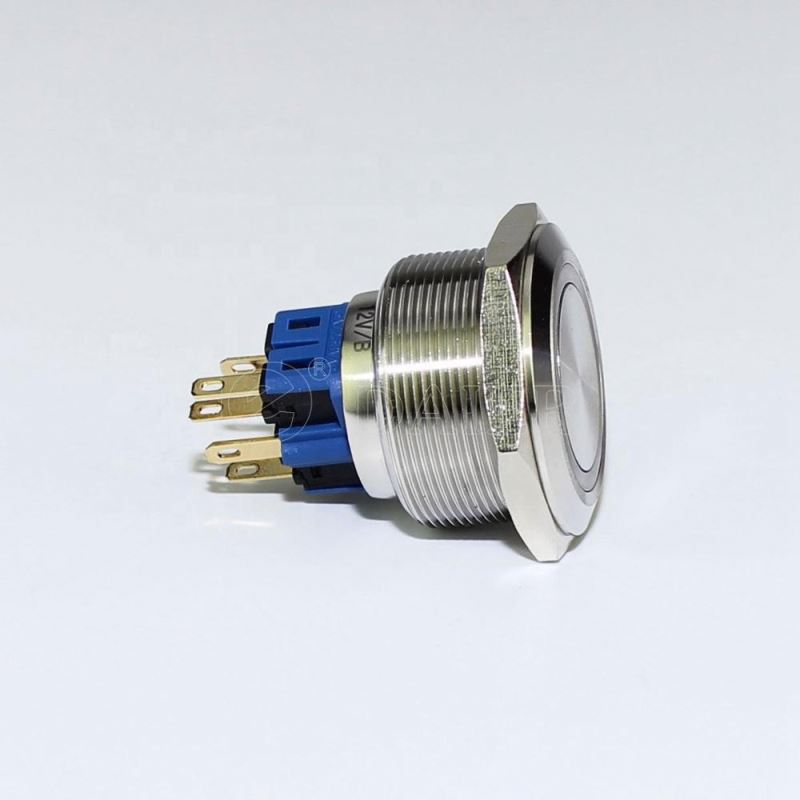

30MM Flat Button Ring Illuminated Momentary Waterproof Metal Mitsubishi Push Button

Click on the image to view the original image

Product：	views：230MM Flat Button Ring Illuminated Momentary Waterproof Metal Mitsubishi Push Button
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:24

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: GQ30F-10EM

Protection Level:: IP67

Max. Current:: 5A

Max. Voltage:: 250VAC

Product type:: Mitsubishi Push Button

LED color:: Red Yellow Green White Blue

Electrical life:: 50,000 cycles

Contact resistance:: 50m-ohms max

Insulation resistance:: 1,000M-ohms min @ 500VDC

Dieiectric strength:: 2,000V RMS 50~60Hz

Operating temperature:: -20~+55°C

Function:: Momentary

Protection level:: IP67

Operating force:: 5.5-7N

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 21X14X6 cm

Gross weight per batch:: 1.2 kg

Package Type:: 30MM Flat Button Ring Illuminated Momentary Waterproof Metal Mitsubishi Push Button is 20pcs/ box.

Lead Time:

Quantity(Piece)	1 - 20000	>20000
Est. Time(days)	10	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	30MM Flat Button Ring Illuminated Momentary Waterproof Metal Mitsubishi Push Button
Electrical life	50,000 cycles
Contact resistance	50m-ohms max
Insulation resistance	1,000M-ohms min @ 500VDC
Dieiectric strength	2,000V RMS 50~60Hz
Operating temperature	-20~+55°C
Function	Momentary
Protection level	IP67
Operating force	5.5-7N max
