Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KCD5-101
- Max. Current:
- 6A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item Number:
- KCD5-101
- Button Color:
- Black/Red/White/Green/Gray
- Function:
- ON-OFF
- Contact Configuration:
- SPST
- Rating:
- 6A 125VAC/3A 250VAC
- Contact Resistance:
- 35mΩ max
- Insulation Resistance:
- 500 VDC100MΩ
- Dielectric Strength:
- 1500VAC 1 minute
- Electrical Life:
- 100,000 cycles
- Certification::
- CE, CQC, SGS
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X28X15 cm
- Gross weight per batch:
- 0.7 kg
- Package Type:
- 200PCS Per Bag of Miniature 6A 125VAC SPST 2PIN ON OFFT85 55 Rocker Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 200000 >200000 Est. Time(days) 10 To be negotiated
Our adventage
Product Description
Products Show

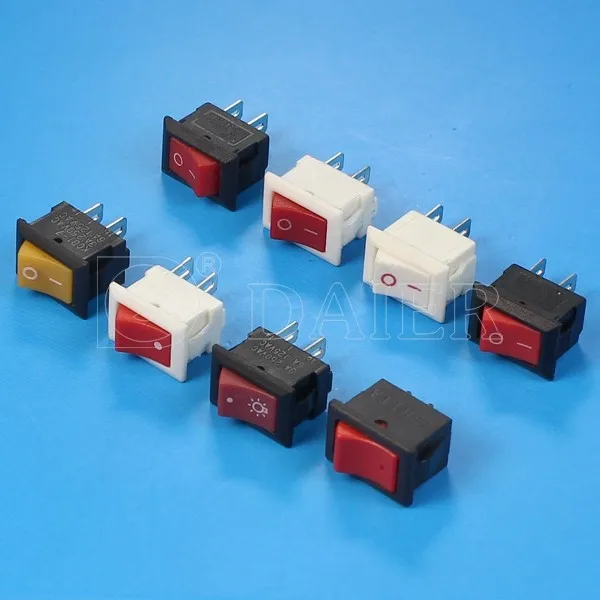

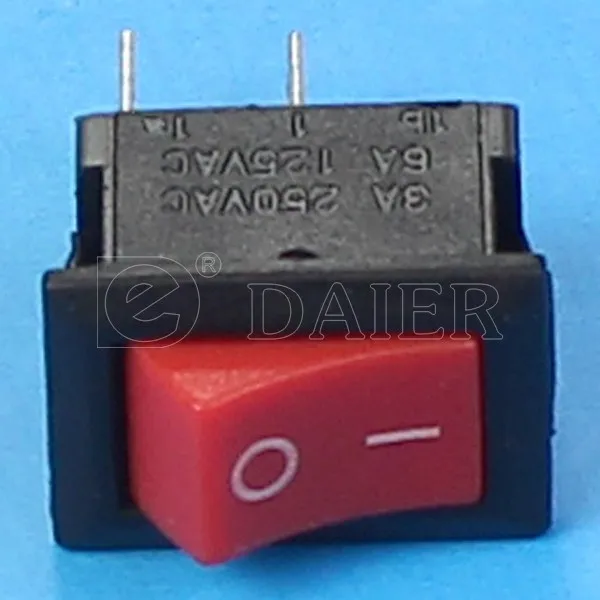

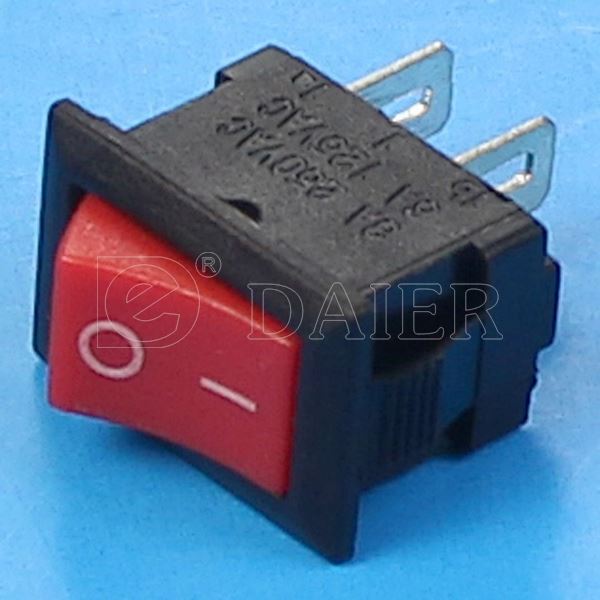

KCD5-101 ROCKER SWITCH
Daier KCD5-101 rocker switch offer a low switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
KCD5-101 ROCKER SWITCH
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
