Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KCD2-202N
- Max. Current:
- 20A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item Number:
- KCD2-202N
- Button Color:
- Transparent Red/Green/Yellow/Blue
- Function:
- ON-ON
- Contact Configuration:
- DPDT
- Rating:
- 20A 125VAC/16A 250VAC
- Contact Resistance:
- 35mΩ max
- Insulation Resistance:
- 500 VDC100MΩ
- Dielectric Strength:
- 1500VAC 1 minute
- Electrical Life:
- 100,000 cycles
- Certification::
- CE, CQC, SGS
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X28X15 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- 50PCS Per Bag of Mini DPDT 6 PIN ON ON 2Ways Rocker Switch With Green LED
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated
Our adventage
Product Description
Products Show

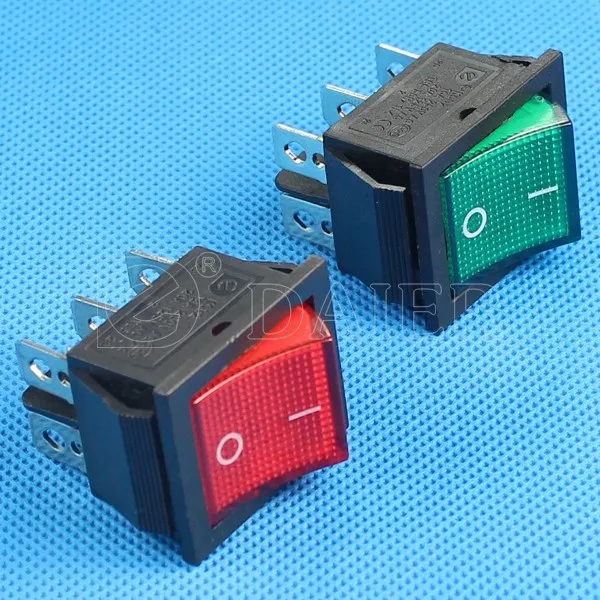

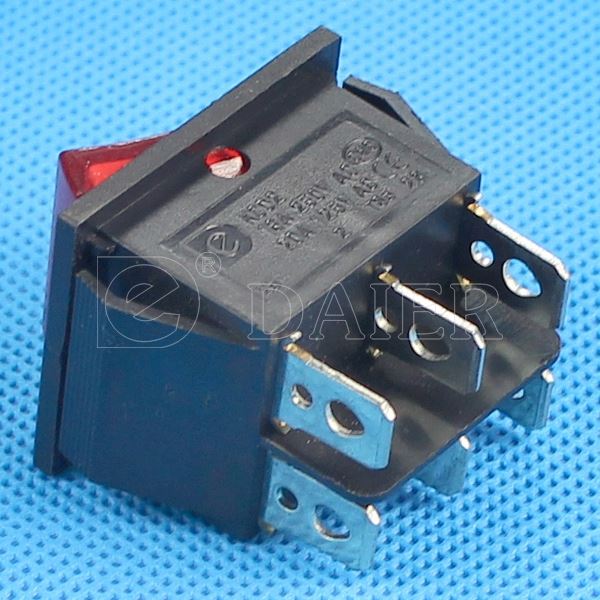

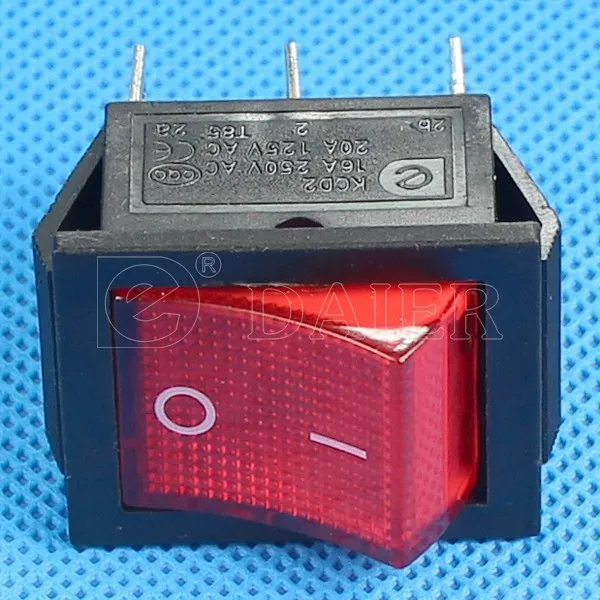

KCD2-202N ROCKER SWITCH
Daier KCD2-202N rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
KCD2-202N ROCKER SWITCH
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
