Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KCD1-1-203
- Max. Current:
- 6A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Function:
- DPDT ON-OFF-ON

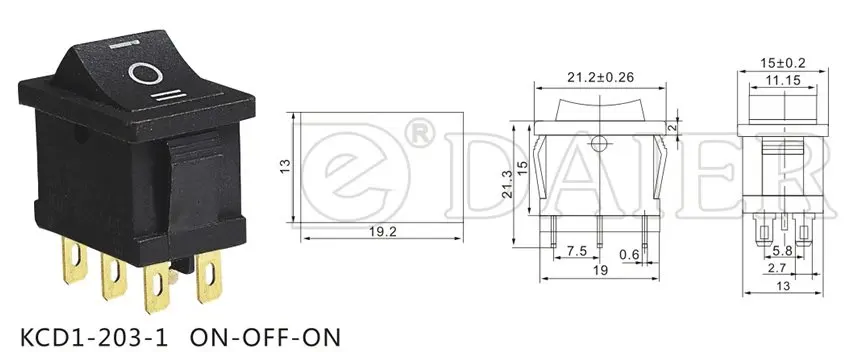

- Panel size:
- 19.2mm X 13mm
- Button Color:
- black,red,grey
- Body Color:
- grey,black
- Rating:
- 6A 250VAC
- Material:
- PA66
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 45X30X40 cm
- Gross weight per batch:
- 0.5 kg
- Package Type:
- 3000pcs/ctn of 6PIN ON-OFF-ON Switch Rocker DPDT 6A 250VAC KCD1-203 Rocker Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5000 >5000 Est. Time(days) 7 To be negotiated

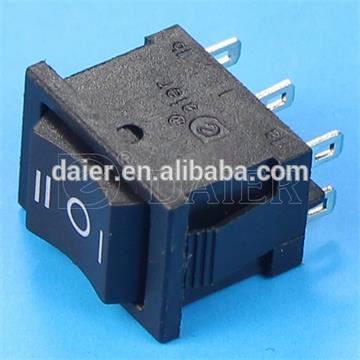

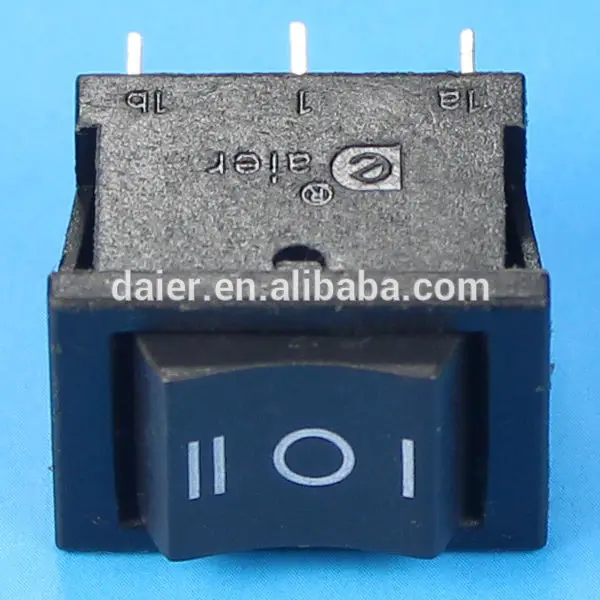

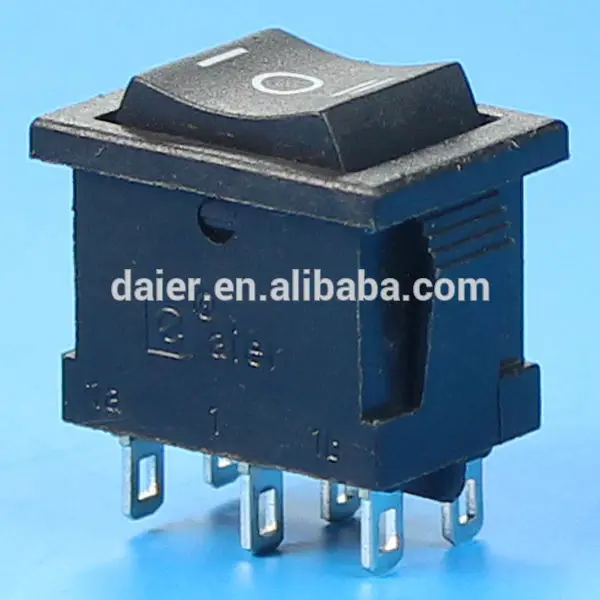

6PIN ON-OFF-ON Switch Rocker DPDT 6A 250VAC KCD1-203 Rocker Switch
1.funtion : on off on
2. 6A 250VAC
3.10A 125VAC
4.Electrical life :10000cycles
- SPECIFICATION
RATING: | 6A 250VAC;10A 125VAC; |
MECHANICAL LIFE: | >50000 CYCLES |
ELECTRICAL LIFE | >10000 CYCLES |
CONTACT RESISTANCE | < 50MΩ |
INSULATION RESISTANCE | >1000MΩ |
WITHSTAND VOLTAGE | >1500V/MINUTE |
AMBIENT TEMPERATURE | -10°C~+85°C |
STORAGE TEMPERATURE | -25°C~+85°C |
- Product show
switch rocker dpdt 16a 250v,kcd1-203 rocker switch switch rocker dpdt 16a 250v,kcd1-203 rocker switch switch rocker dpdt 16a 250v,kcd1-203 rocker switch switch rocker dpdt 16a 250v,kcd1-203 rocker switch switch rocker dpdt 16a 250v,kcd1-203 rocker switch switch rocker dpdt 16a 250v,kcd1-203 rocker switch switch rocker dpdt 16a 250v,kcd1-203 rocker switch switch rocker dpdt 16a 250v,kcd1-203 rocker switch
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested in, the best price will be provided upon receipt of your inquiry.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free Samples are available!
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
- PAYMENT AND SHIPMENT
Paypal, T/T, Western Union, MoneyGram , or other method.
Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST...
- OUR CUSTOMERS
80% Percent of our products are widely exporting to Europe, North&South America, Asia.
We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service.
- ABOUT US
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, enclosures, AC sockets and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
