Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- LAS3-19F-11EL
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item Number:
- Push Lock Switch
- Mounting Hole Size:
- 19MM
- Body Color:
- Metal
- Electric Life:
- 50,000 cycles
- Contact Resistance:
- ≤30mΩ
- Insulating Resistance:
- ≥100mΩ 500V DC
- Dielectric Strength:
- 2000VAC
- Operating Temperature:
- -25°C ~+55°C
- IP Class:
- IP67
- Operating Force:
- 2-4N
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X14X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:

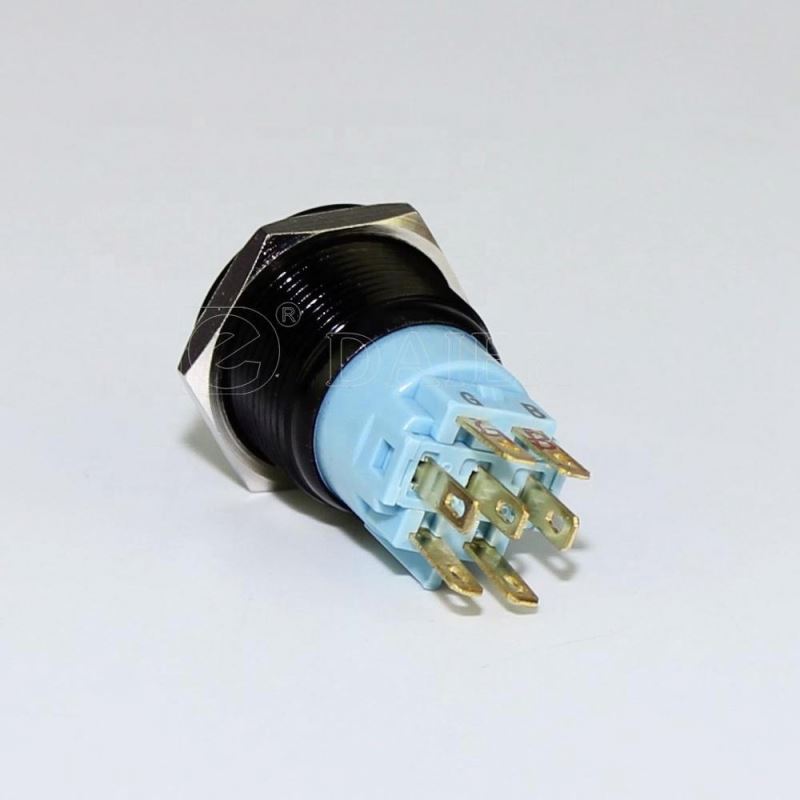

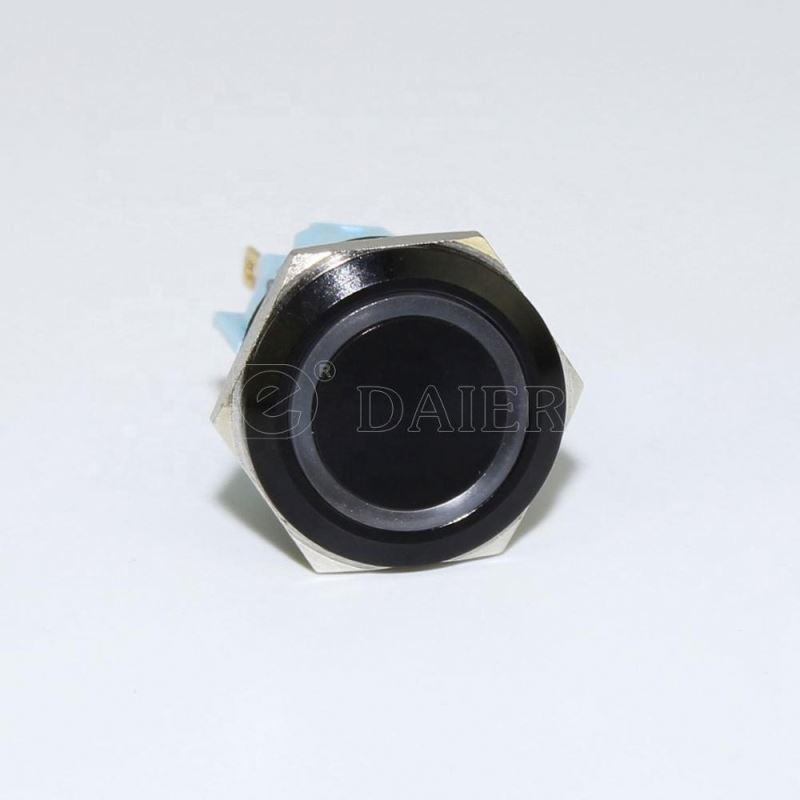

- 19MM Flat Button Ring Illuminate Latching Waterproof IP67 Metal Push Lock Switch is 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
Product Description
Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:
