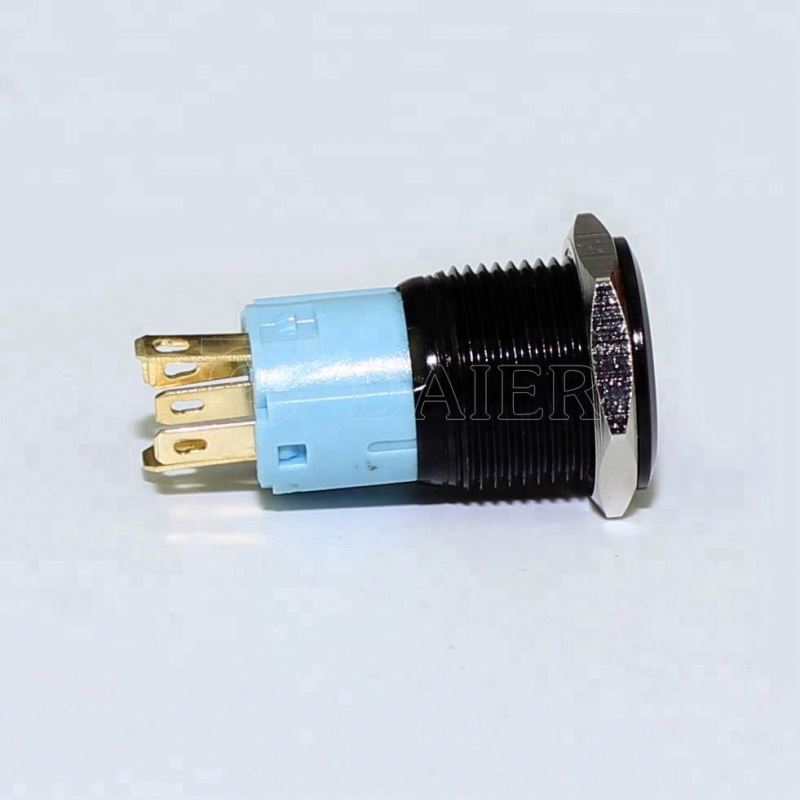

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- LAS3-16F-11E
- Protection Level:
- IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item Number:
- Push Button Switch 220V
- Mounting Hole Size:
- 16MM
- Body Color:
- Metal
- Electric Life:
- 50,000 cycles
- Contact Resistance:
- ≤30mΩ
- Insulating Resistance:
- ≥100mΩ 500V DC
- Dielectric Strength:
- 2000VAC
- Operating Temperature:
- -25°C ~+55°C
- IP Class:
- IP67
- Operating Force:
- 2-4N
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X14X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 16MM Flat Button Ring Illuminate Momentary Or Latching Waterproof Metal Push Button Switch 220V is 40pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
