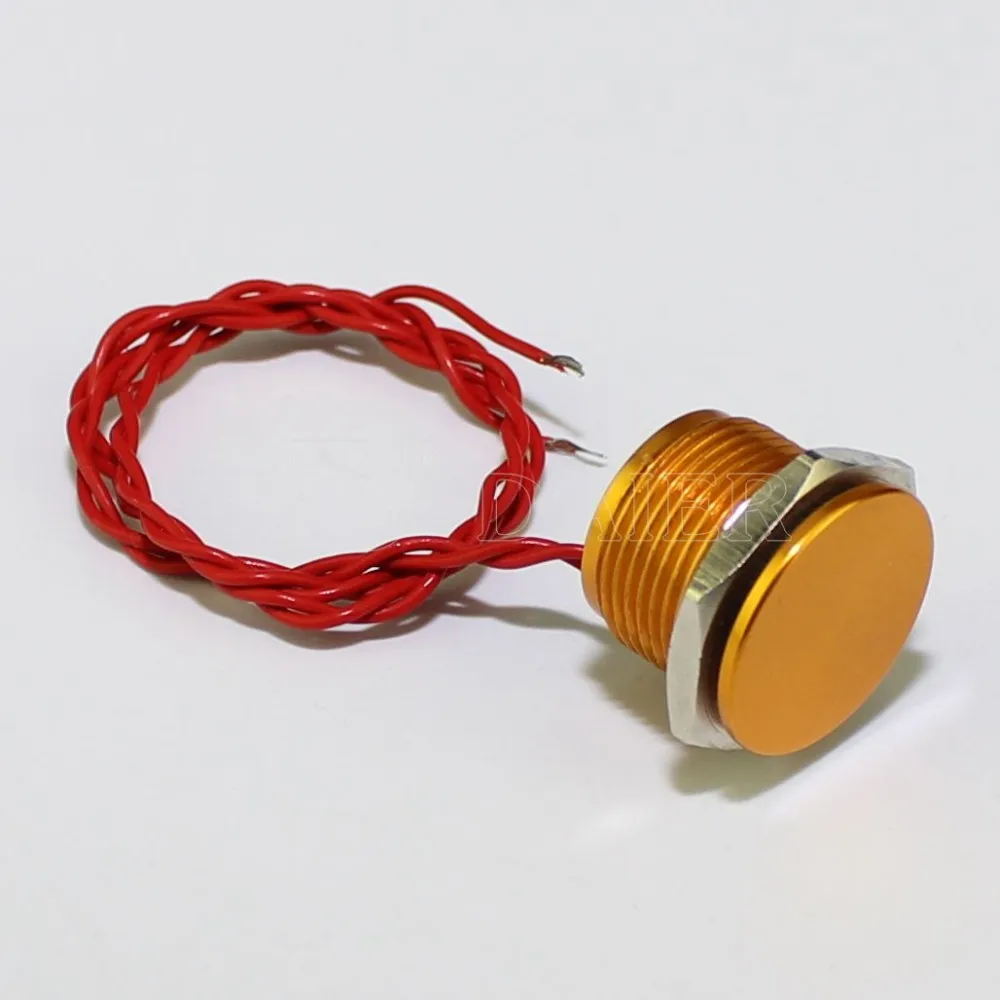

16MM Flat Button Metal Momentary IP68 Push Button Switch

Click on the image to view the original image

Product：	views：516MM Flat Button Metal Momentary IP68 Push Button Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PZ16F-10

Protection Level:: IP68

Max. Current:: 100mA

Max. Voltage:: 24VDC

Item number:: IP68 Push Button Switch

Mounting Size:: 16MM

Body Color:: Red Green Blue Yellow Black White

Operation Type:: Momentary

Button Shape:: Flat Button

Dielectric Intensity:: 1100VAC

Operation Force:: 2~6N

Mechanical Life:: 5,000,000 cycles Min

Operation Temperature:: -20°C~+55°C

IP Class:: IP68

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X15X10 cm

Gross weight per batch:: 1.1 kg

Package Type:: 16MM Flat Button Metal Momentary IP68 Push Button Switch is 40pcs/box.

Lead Time:

Quantity(Piece)	1 - 40000	>40000
Est. Time(days)	10	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	16MM Flat Button Metal Momentary IP68 Push Button Switch
Rating	100mA 24VDC
Mounting Size	16mm
IP Class	IP68
Operating Temperature	-20°C~+55°C
Mechanical Life	5,000,000 cycles
Operating Force	2~6N
