16MM 2Pin Momentary Waterproof Dome Explosion Proof Stainless Steel Switch

Click on the image to view the original image

Product：	views：516MM 2Pin Momentary Waterproof Dome Explosion Proof Stainless Steel Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: GQ-16F

Protection Level:: IP65

Max. Current:: 2A

Max. Voltage:: 36VDC

Product type:: Stainless Steel Switch

Brand:: Daier

Electrical life:: 50,000 cycles

Contact resistance:: 50m-ohms max

Insulation resistance:: 1,000M-ohms min @ 500VDC

Dieiectric strength:: 2,000V RMS 50~60Hz

Operating temperature:: -40~+85°C

Function:: 1NO Momentary

Protection level:: IP65

Operating force:: 5N max

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 21X14X6 cm

Gross weight per batch:: 1.5 kg

Package Type:: 16MM 2Pin Momentary Waterproof Dome Explosion Proof Stainless Steel Switch is 50pcs/ box.

Lead Time:

Quantity(Piece)	1 - 50000	>50000
Est. Time(days)	10	To be negotiated

Product Description

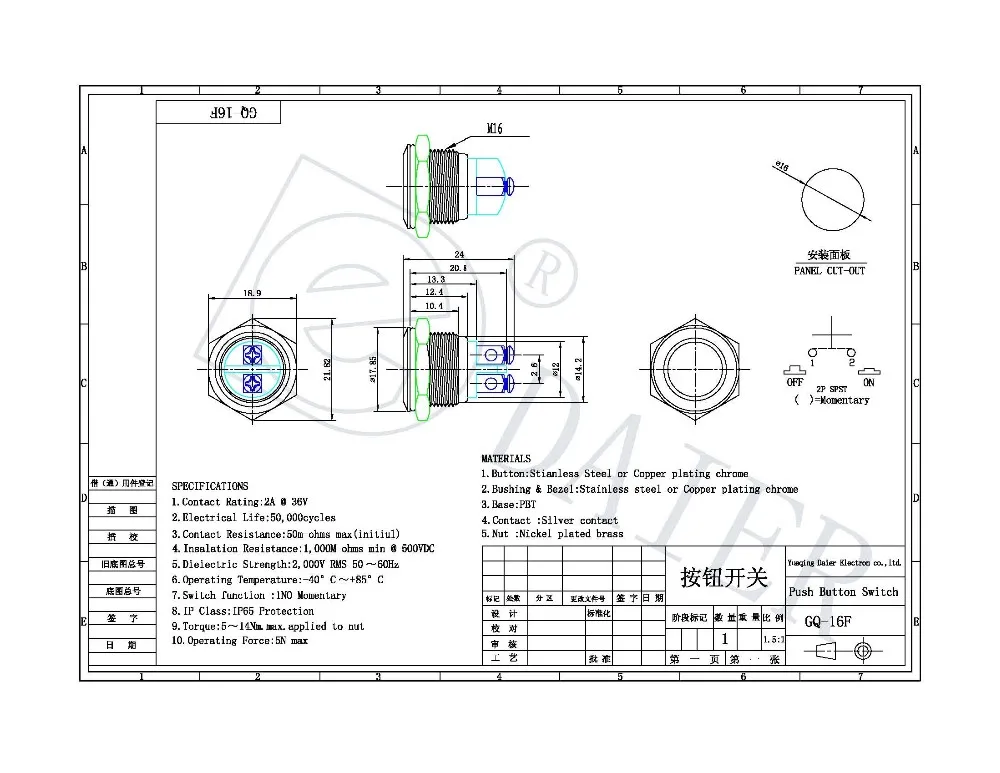

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	16MM 2Pin Momentary Waterproof Dome Explosion Proof Stainless Steel Switch
Electrical life	50,000 cycles
Contact resistance	50m-ohms max
Insulation resistance	1,000M-ohms min @ 500VDC
Dieiectric strength	2,000V RMS 50~60Hz
Operating temperature	-40~+85°C
Function	1NO Momentary
Protection level	IP65
Operating force	5N max
