Home > Products > High Round Button Soldering terminal Latching Or Momentary 4Pin SPST Metal Illuminated 10MM Pushbutton Switch

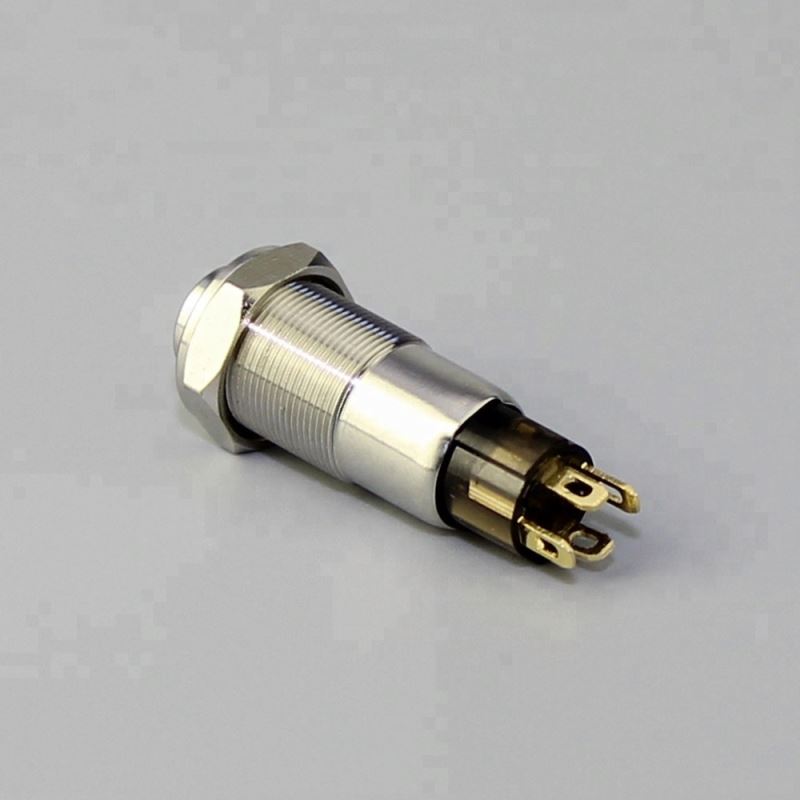

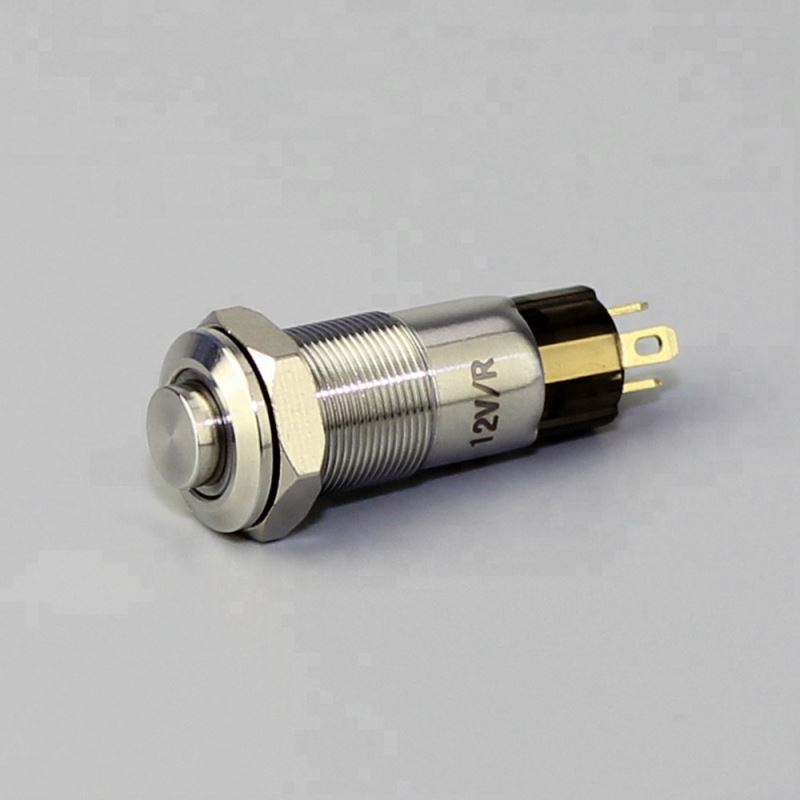

High Round Button Soldering terminal Latching Or Momentary 4Pin SPST Metal Illuminated 10MM Pushbutton Switch
Click on the image to view the original image
Product： views：2High Round Button Soldering terminal Latching Or Momentary 4Pin SPST Metal Illuminated 10MM Pushbutton Switch
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:25
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
GQ-10H-10E
Protection Level:
IP67
Max. Current:
2A
Max. Voltage:
250VAC
Item number:
Illuminated 10MM Pushbutton Switch
Contact Rating:
2A 250VAC
Electric life:
10,000 cycles
Contact Resistance:
50 mΩ max
Insulation Resistance:
>100Ω 500VDC
Dielectric Strength:
>2000VAC 1Min
Operational Temperature:
-25°C ~ +55°C
Function:
SPST
IP Class:
IP67
Operating Force:
3-6N Max

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
21X14X6 cm
Gross weight per batch:
1.1 kg
Package Type:
High Round Button Soldering terminal Latching Or Momentary 4Pin SPST Metal Illuminated 10MM Pushbutton Switch is 50pcs/box.
Lead Time:
Quantity(Piece)1 - 50000>50000
Est. Time(days)10To be negotiated
Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name
High Round Button Soldering terminal Latching Or Momentary 4Pin SPST Metal Illuminated 10MM Pushbutton Switch
Contact Rating
2A  250VAC
Electrical Life
10,000 cycles
Contact Resistance
50m-ohms max
Insulation Resistance
1,00m-ohms min @ 500VDC
Dieiectric Strength
>2,000VAC 1Min
Operating Temperature
-20~+55°C
Function
SPST
Protection Level
IP67
Operating Force
3-6N
