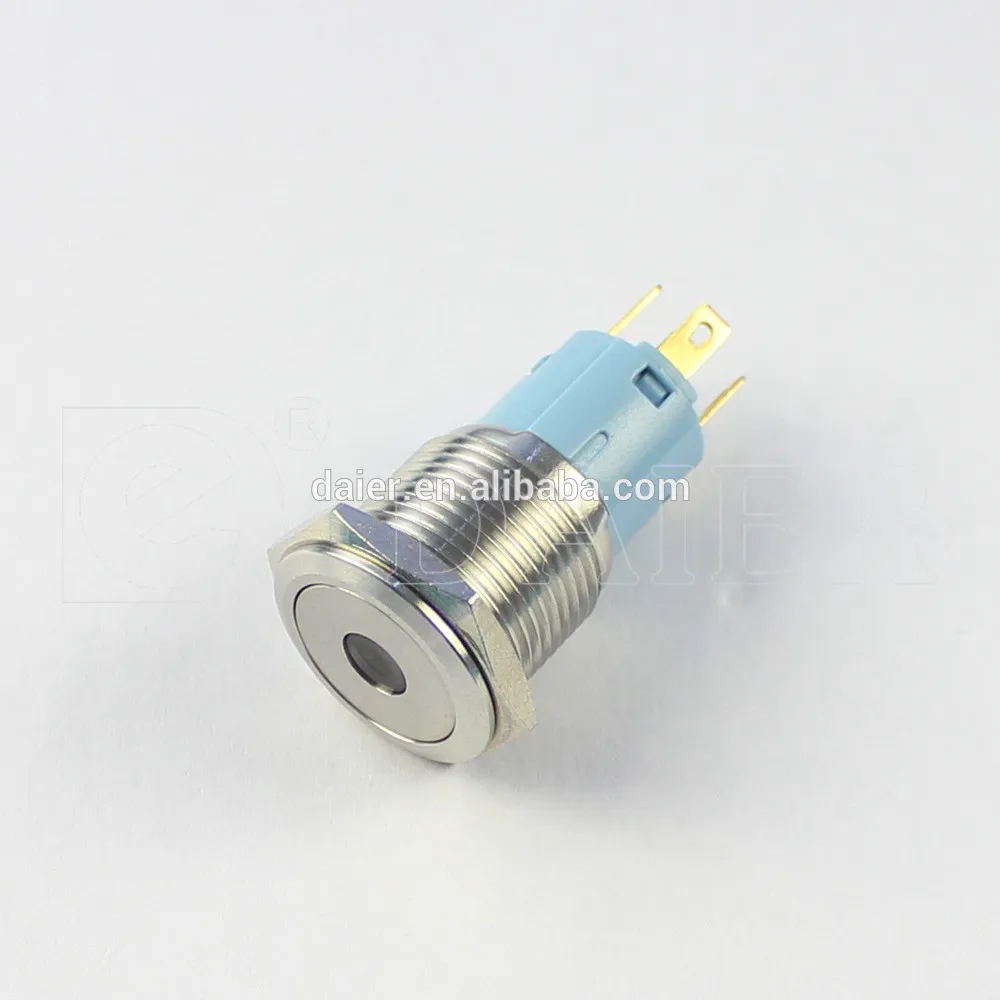

LAS3-16F-11D 16mm waterproof illuminated led metal push button switch

Click on the image to view the original image

Product：	views：3LAS3-16F-11D 16mm waterproof illuminated led metal push button switch
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: LAS3-16F-11D

Protection Level:: IP67

Max. Current:: 3A

Max. Voltage:: 250VAC

Standard:: IEC standard

Panel size:: 16mm

Voltage:: 250VAC

Certificate:: CE,Rohs,CQC

LED color:: Red,green,yellow,blue,white

Button Color:: Red,green,yellow,blue,white,black

Switch type:: Push button switch

Product name:: waterproof electrical push button switch

Material:: Stainless Steel/Aluminum/Chrome-plated brass

Supply Ability

Supply Ability:: 3000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: 20pcs/box.for LAS3-16F-11D button switch, ring illuminated push button switch*

Port: Ningbo,Wenzhou,Shanghai

Lead Time:

Quantity(Pieces)	1 - 1000	>1000
Est. Time(days)	10	To be negotiated

Our adventage

Product Description

Product Name	LAS3-16F-11D button switch, ring illuminated push button switch*
Rating	3A 250VAC
Funtion	SPDT，1NO+1NC1
Button Color	Blue/Yellow/Red/Green/Black
Electonical Life	500,000 Cycles
The Front Shape	Flat Shape
Lamp type	Ring Illuminated

Products Show

LAS3-16F-11D

Metal Push Button Switch Series:
1.nice appearence,free from rust,metal body with bright led lamp, Sliver contact, Gilded Solder terminal
2.3A 250VAC
3.Contact resistance:≤50mΩ
4. Insulation resistance: ≥1000MΩ
5. Dielectric Intensity: 2000VAC
6. IP Degress: IP67 ,IK10
7. Electrical life: 50,000 Cycles

LAS3-16F-11D

Metal Push Button Switch Series: Widely used in home application,electronic equipment,automatic machine,communication equipment,car electron,apparatus and instrument electric motion tool etc.
