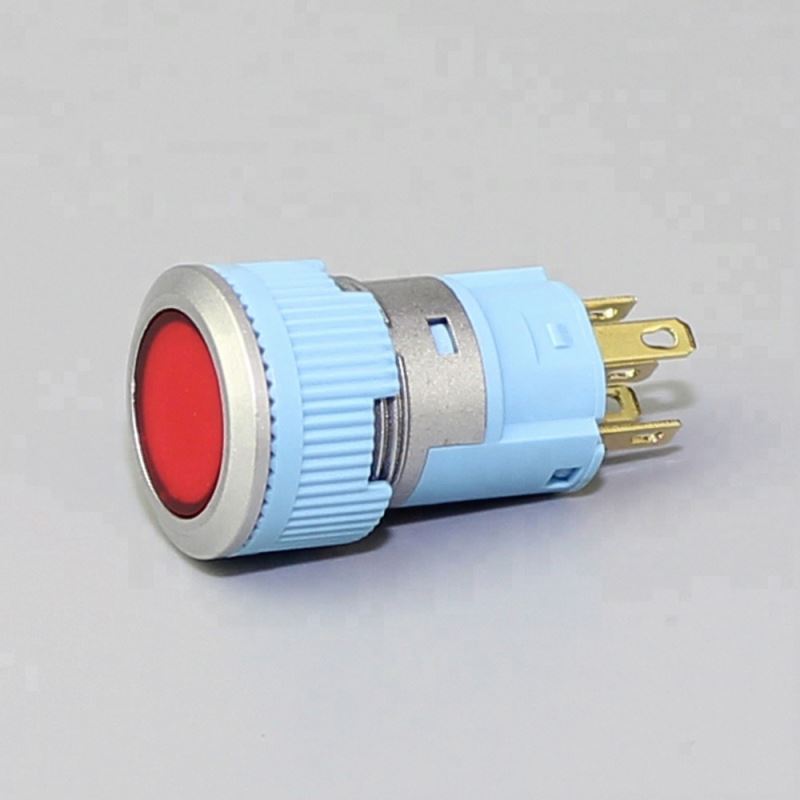

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L16F-11NL
- Protection Level:
- IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:
- 16MM Button Switch
- Function:
- Latching
- Led color:
- Red Yellow White Blue Green
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5.5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 100,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X14X6 cm
- Gross weight per batch:
- 1.1 kg
- Package Type:
- Flat Button 5Pin Latching Lens Illuminated Waterproof Plastic 16MM Button Switch is 40pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
