Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L12F-10N
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 250VAC
- Item number:

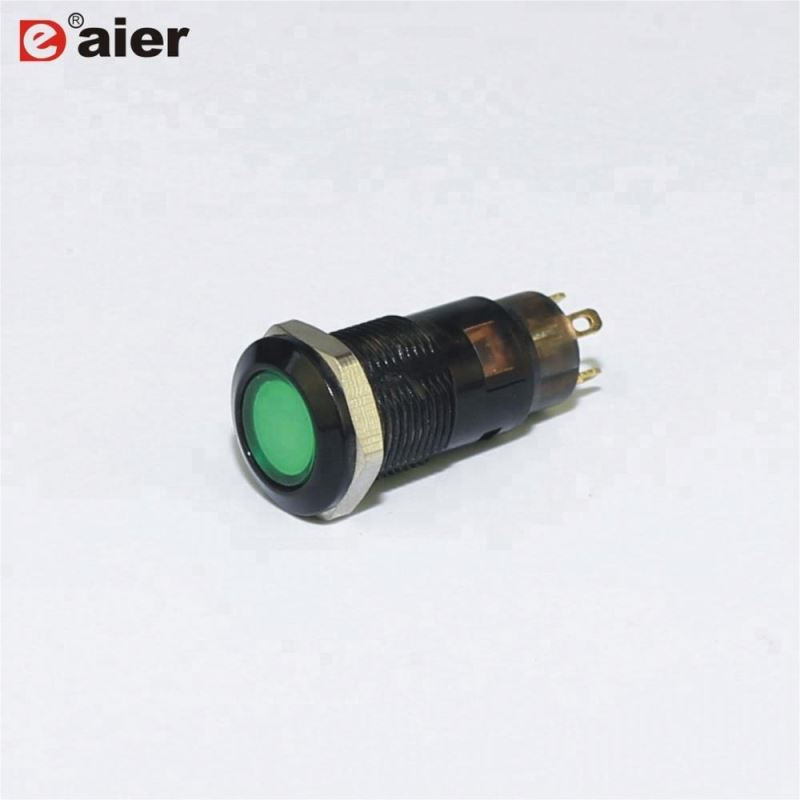

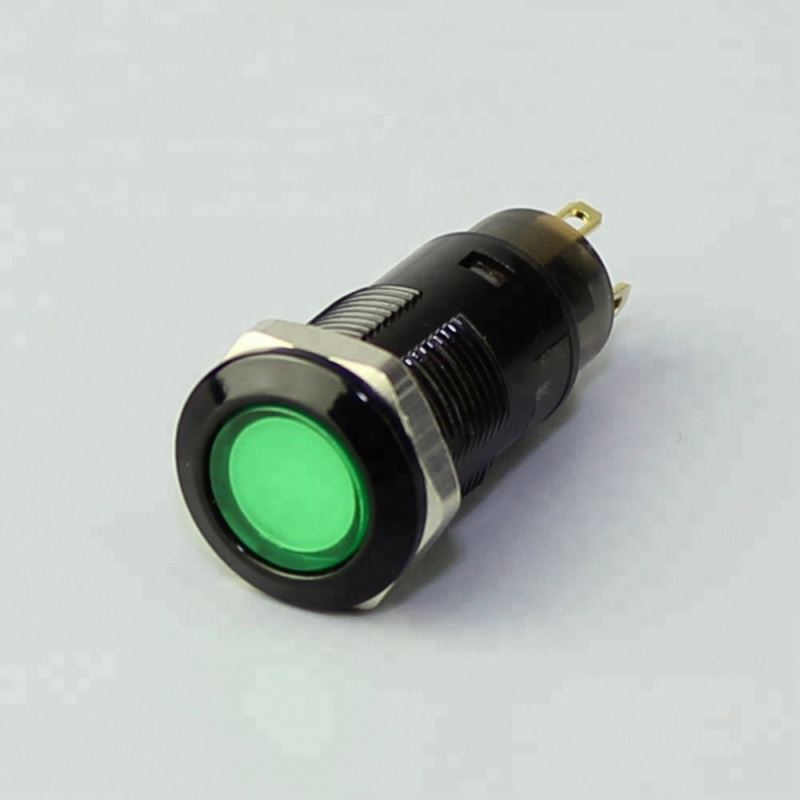

- 12MM Push Button Switch
- Function:
- Momentary Or Latching
- Led color:
- Red Yellow White Blue Green
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 3-6N
- Dielectric Strength:
- >2000VAC 1Min
- Electric life:
- 100,000 cycles
- Operating Temperature:
- -25°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X14X6 cm
- Gross weight per batch:
- 1.1 kg
- Package Type:
- Plastic Flat Button 4Pin Momentary Or Latching Illuminated Waterproof 12MM Push Button Switch is 40pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated
