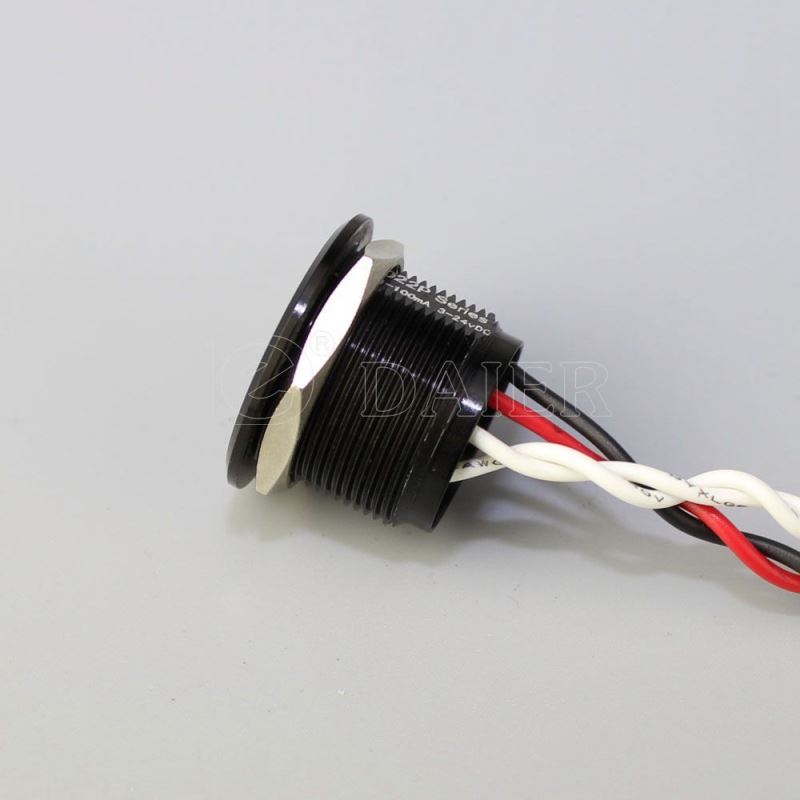

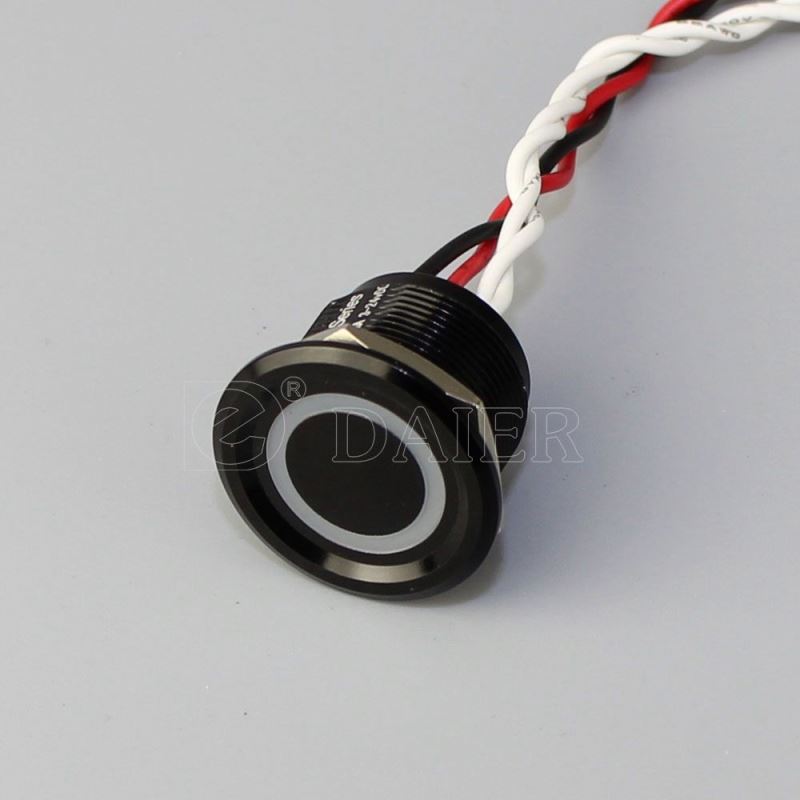

22mm Concave Button Metal 12V Black Color Illuminated Momentary Waterproof Switch Touch

Click on the image to view the original image

Product：	views：222mm Concave Button Metal 12V Black Color Illuminated Momentary Waterproof Switch Touch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: TS22C-10E

Protection Level:: IP68

Max. Current:: 100MA

Max. Voltage:: 24VDC

Product type:: Switch Touch

Brand:: Daier

OEM&ODM:: Available

LED color:: Red Green Yellow Blue White Orange

Operating temperature:: -40~+70°C

Operating force:: 2-6N

Protection level:: IP68 IEC529

Function:: Momentary

Operating life:: 1,000,000 cycles

Wire Size:: 22AWG

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 25X20X10 cm

Gross weight per batch:: 1.3 kg

Package Type:: 22mm Concave Button Metal 12V Black Color IlluminatedMomentary Waterproof Switch Touch is 50pcs/ box.

Lead Time:

Quantity(Piece)	1 - 50000	>50000
Est. Time(days)	10	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	22mm Concave Button Metal 12V Black Color IlluminatedMomentary Waterproof Switch Touch
LED color	Red Green Yellow Blue White Orange
Operating temperature	-40~+70°C
Material	Rubber
Operating force	2-6N
Protection level	IP68 IEC529
Function	Momentary
Operating life	1,000,000 cycles
Wire Size	22AWG
