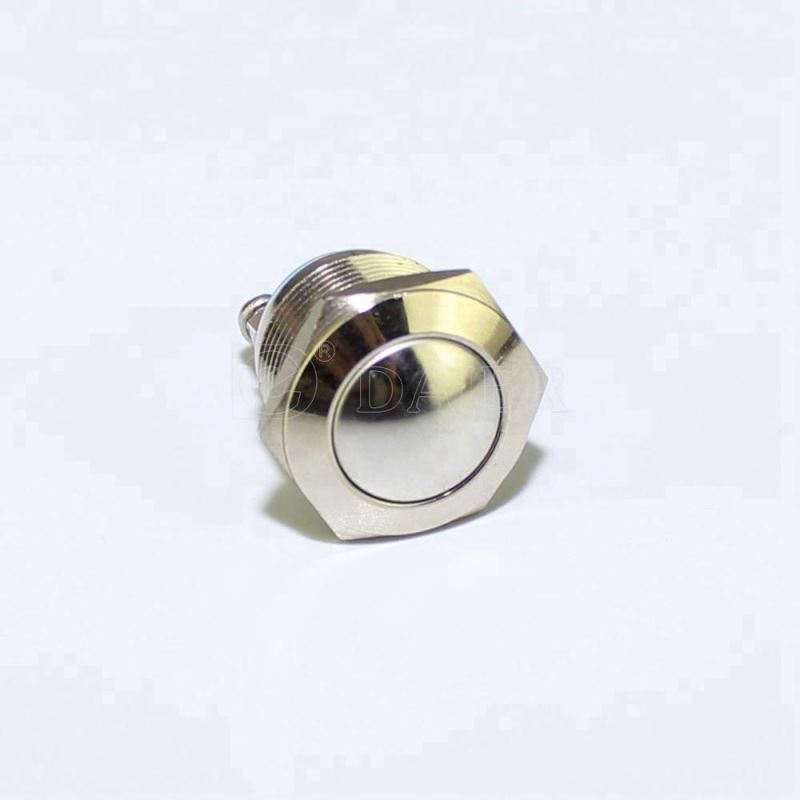

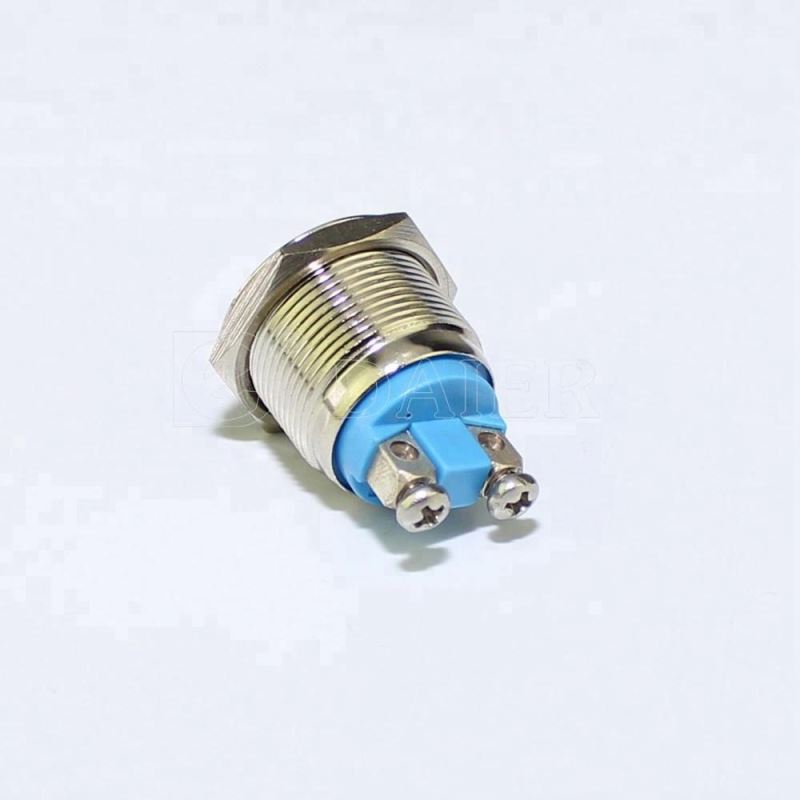

Dome Button SPST Momentary Metal Waterproof Screw Terminal 2 Pin 19MM Metal Push Button

Click on the image to view the original image

Product：	views：4Dome Button SPST Momentary Metal Waterproof Screw Terminal 2 Pin 19MM Metal Push Button
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PBS-28B

Protection Level:: IP65

Max. Current:: 5A

Max. Voltage:: 250VAC

Item number:: 19MM Metal Push Button

Material:: Metal

Contact Rating:: 5A 250VAC

Electric life:: 50,000 cycles

Contact Resistance:: 50 mΩ max

Insulation Resistance:: ≥1000Ω

Dielectric Strength:: 2000V RMS 50~60Hz

Operational Temperature:: -20°C ~ +55°C

Function:: 1NO Momentary

Operating Force:: 5N Max

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 21X14X6 cm

Gross weight per batch:: 1.5 kg

Package Type:: Dome Button SPST Momentary Metal Waterproof Screw Terminal 2 Pin 19MM Metal Push Button is 40pcs/box.

Lead Time:

Quantity(Piece)	1 - 50000	>50000
Est. Time(days)	10	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	Dome Button SPST Momentary Metal Waterproof Screw Terminal 2 Pin 19MM Metal Push Button
Button Size	19mm
Electrical Life	50,000 cycles
Contact Resistance	50m-ohms max
Insulation Resistance	1,000M-ohms min @ 500VDC
Dieiectric Strength	2,000V RMS 50~60Hz
Operating Temperature	-20~+55°C
Function	1NO Momentary
Protection Level	IP65
Operating Force	5N max
