Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-28B
- Protection Level:
- IP65
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Product type:

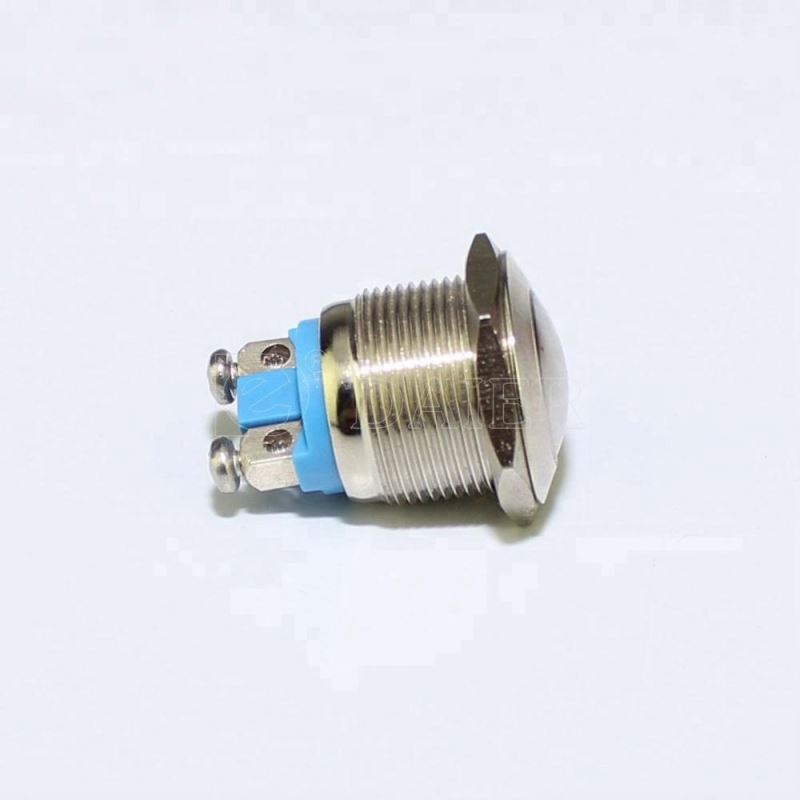

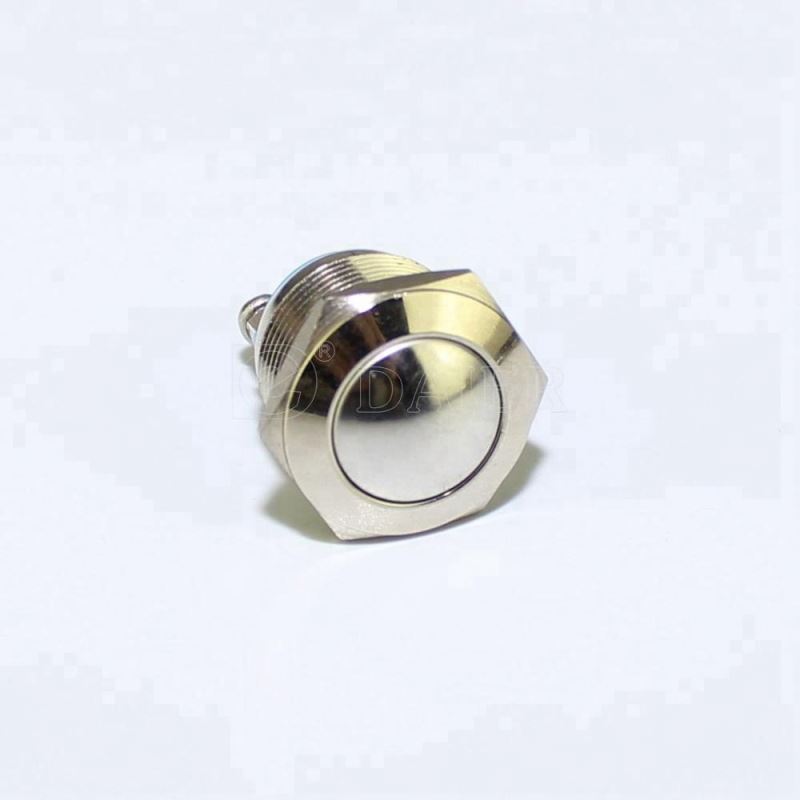

- Stainless Steel Switch
- Brand:
- Daier
- Electrical life:
- 50,000 cycles
- Contact resistance:
- 50m-ohms max
- Insulation resistance:
- 1,000M-ohms min @ 500VDC
- Dieiectric strength:
- 2,000V RMS 50~60Hz
- Operating temperature:
- -20~+55°C
- Function:
- 1NO Momentary
- Protection level:
- IP65
- Operating force:
- 5N max
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X14X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 19MM 2Pin Momentary Waterproof Dome Explosion Proof Stainless Steel Switch is 50pcs/ box.
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated
