Home > Products > 2PIN ON OFF Mini Push Button Tactile Switch

2PIN ON OFF Mini Push Button Tactile Switch

Click on the image to view the original image

Product：	views：32PIN ON OFF Mini Push Button Tactile Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PBS-07

Protection Level:: IP40

Max. Current:: 1A

Max. Voltage:: 30VDC

Item number:: ON OFF Mini Micro Push Button Tactile Switch

Function:: Latching

Body Color:: Black

Button Color:: Black

Insulation Resistance:: DC 500V100MΩ Min

Contact Resistance:: 100mΩ Max

Dielectric Strength:: 500VAC for 1 Min

Electric Life:: 10,000 cycles Min

Operation Temperature:: -25°C~+70°C

IP Class:: IP40

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 1.5 kg

Package Type:: 2PIN ON OFF Mini Push Button Tactile Switch is 1000pcs/bag.

Lead Time:

Quantity(Piece)	1 - 1000000	>1000000
Est. Time(days)	10	To be negotiated

Product Description

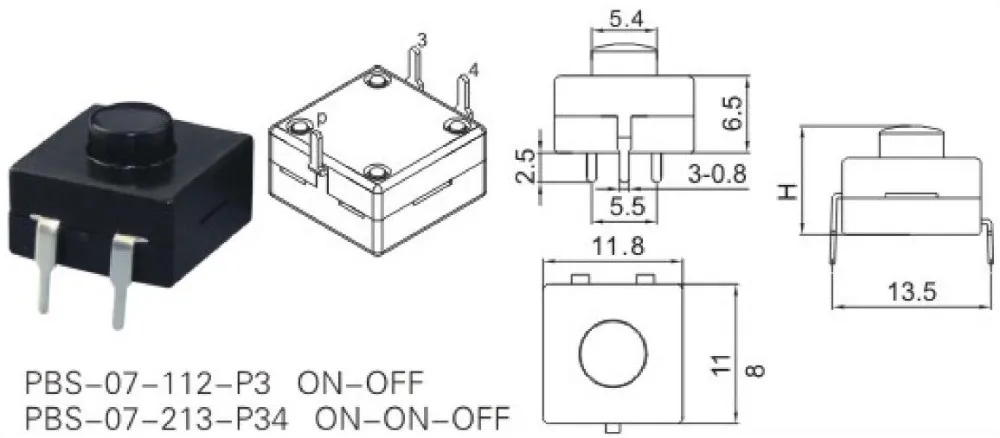

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	2PIN ON OFF MiniPush Button Tactile Switch
Rating	1A 30VDC Push Button Tactile Switch
IP Class	IP40
Function	Latching
Button Color	Black
Contact Resistance	100 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	500V AC for 1 min

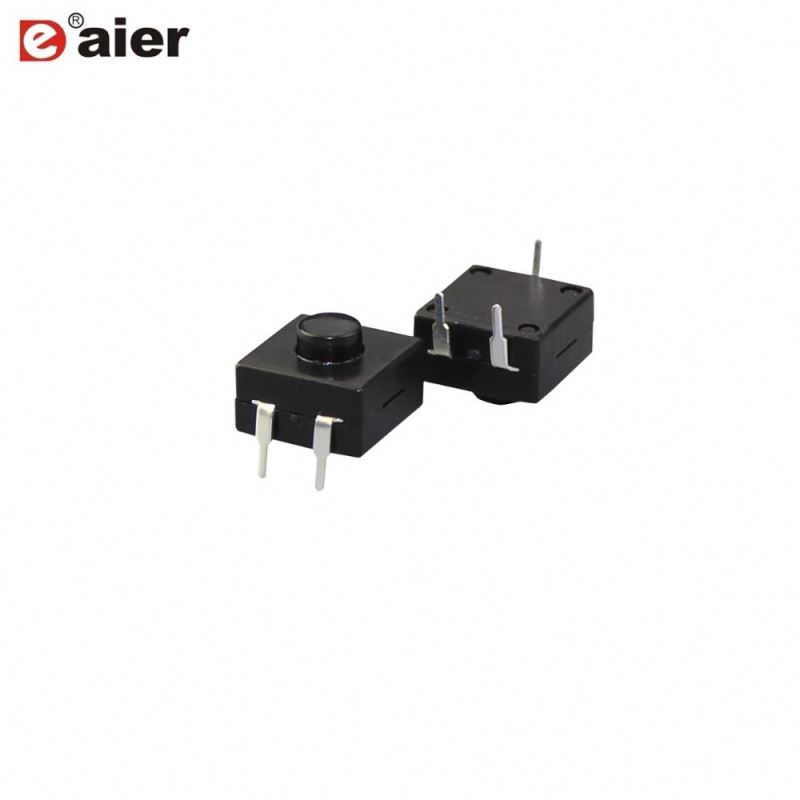

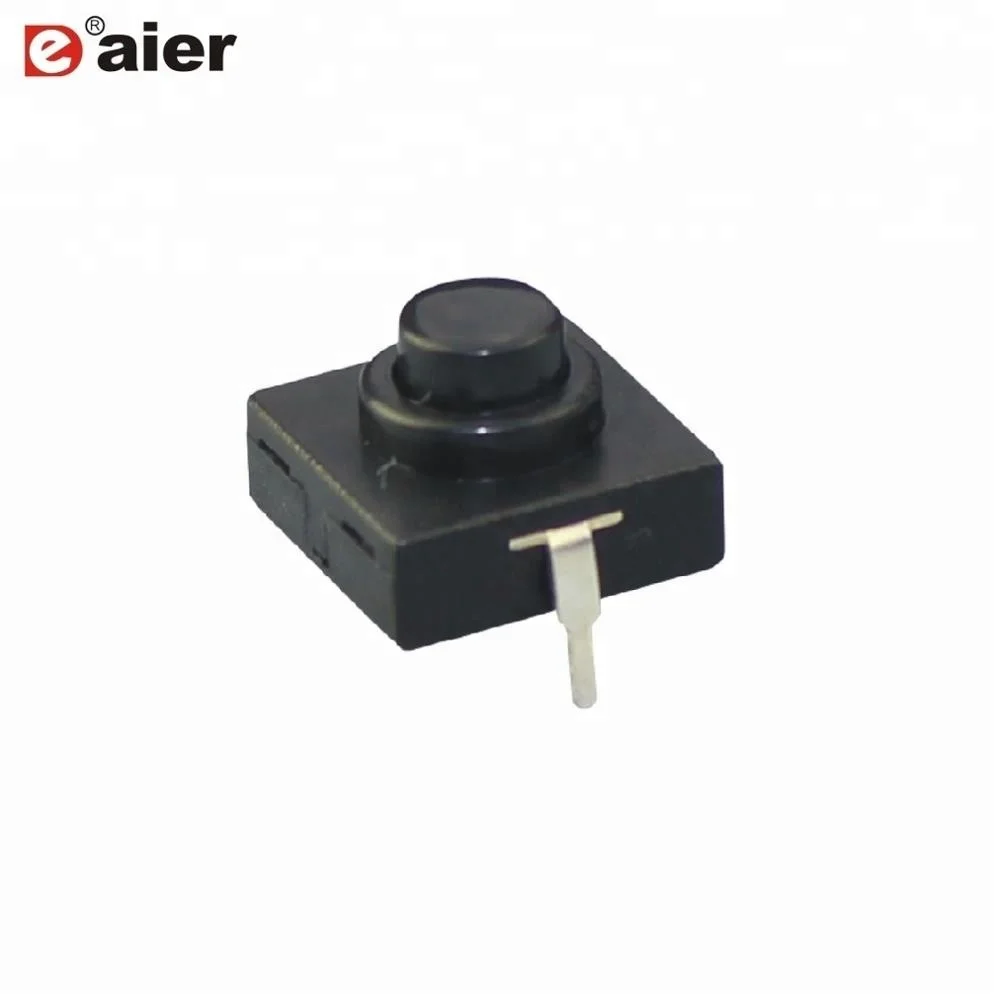

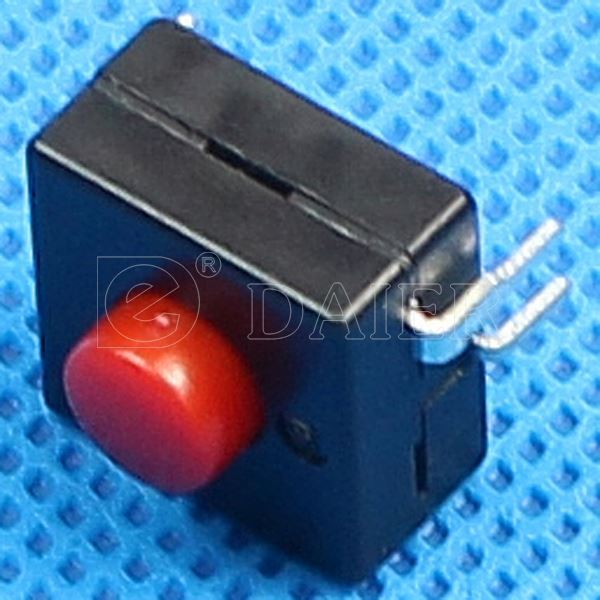

Product Show
