Home > Products > 30VDC Latching Black Thin Flashlight ON OFF Switch

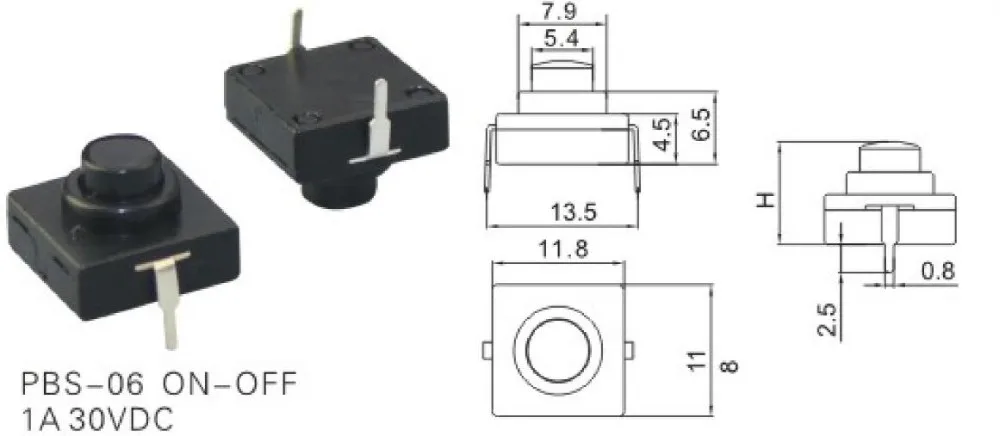

30VDC Latching Black Thin Flashlight ON OFF Switch
Click on the image to view the original image
Product： views：530VDC Latching Black Thin Flashlight ON OFF Switch
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:25
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
PBS-06
Protection Level:
IP40
Max. Current:
1A
Max. Voltage:
30VDC
Item number:
Flashlight ON OFF Switch
Function:
Latching
Body Color:
Black
Button Color:
Black
Insulation Resistance:
DC 500V100MΩ Min
Contact Resistance:
100mΩ Max
Dielectric Strength:
500VAC for 1 Min
Electric Life:
10,000 cycles Min
Operation Temperature:
-25°C~+70°C
IP Class:
IP40

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X13X6 cm
Gross weight per batch:
1.5 kg
Package Type:
30VDC Latching Black Thin Flashlight Button Switches is 1000pcs/bag.
Lead Time:
Quantity(Piece)1 - 1000000>1000000
Est. Time(days)10To be negotiated
Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name
30VDC Latching Black Thin Flashlight ON OFF Switch
Rating
1A 30VDC Flashlight ON OFF Switch
IP Class
IP40
Function
Latching
Button Color
Black
Contact Resistance
100 mΩ max
Insulation Resistance
≥100MΩ
Dielectric Strength
500V AC for 1 min
Product Show
