Home > Products > 30VDC Latching Black Thin Remote Push Button Switch

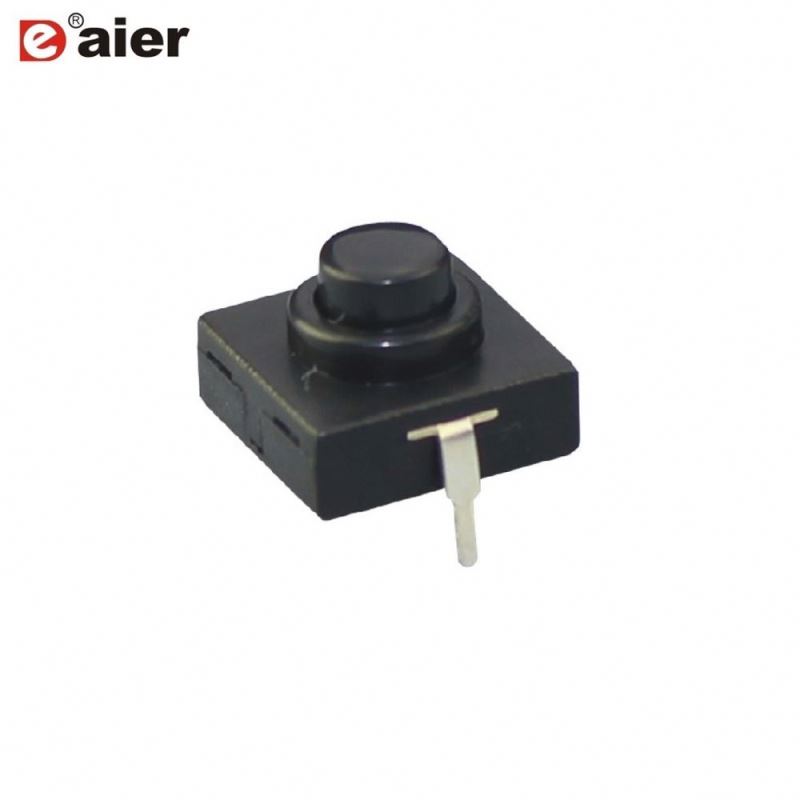

30VDC Latching Black Thin Remote Push Button Switch

Click on the image to view the original image

Product：	views：430VDC Latching Black Thin Remote Push Button Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PBS-06

Protection Level:: IP40

Max. Current:: 1A

Max. Voltage:: 30VDC

Item number:: PBS-06

Function:: Latching

Body Color:: Black

Button Color:: Black

Insulation Resistance:: DC 500V100MΩ Min

Contact Resistance:: 100mΩ Max

Dielectric Strength:: 500VAC for 1 Min

Electric Life:: 10,000 cycles Min

Operation Temperature:: -25°C~+70°C

IP Class:: IP40

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 1.5 kg

Package Type:: 30VDC Latching Black Thin Remote Push Button Switch is 1000pcs/bag.

Lead Time:

Quantity(Piece)	1 - 1000000	>1000000
Est. Time(days)	10	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	30VDC Latching Black Thin Remote Push Button Switch
Rating	1A 30VDC Remote Push Button Switch
IP Class	IP40
Function	Latching
Button Color	Black
Contact Resistance	100 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	500V AC for 1 min

Product Show
