Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- RTS-01-3P
- Max. Current:
- 0.3A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Product Name:
- 7 Position PCB Rotary Switch
- Pole:
- 3 Pole
- Position:
- 7 Positions
- Terminal:
- PC Terminals
- Rated Current:
- 0.3A 125VAC; 0.15A 250VAC
- Contact resistance:
- 20MΩ Max
- Insulation resistance:
- 500VDC 100MΩ min
- Electrical Life:
- 10000 Cycles
- Dielectric Strength:
- 1 Minute 1000VAC
- Operating Temperature:
- -25℃~+85℃
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 30X20X15 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:

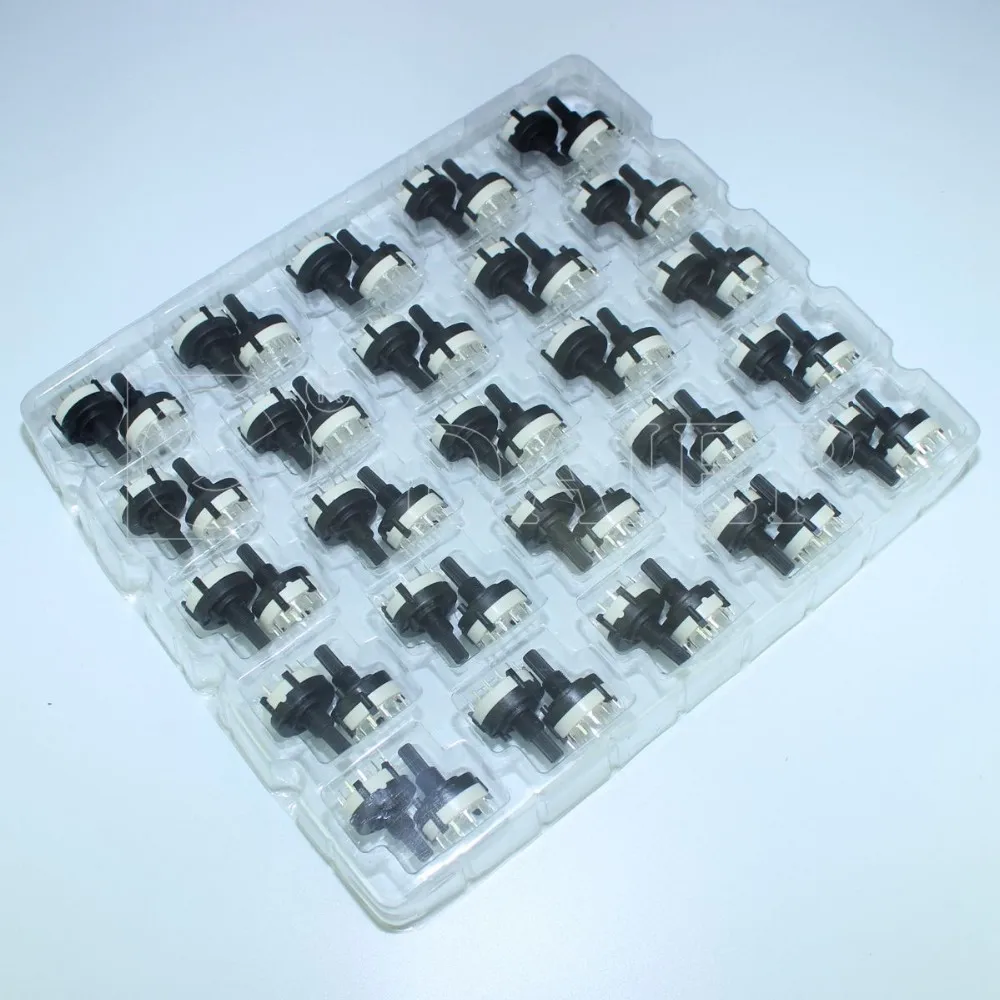

- 50pcs in a plastic box of 0.15A 250VAC 3 Pole Rotary Knob Switch
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
RTS-01-1P

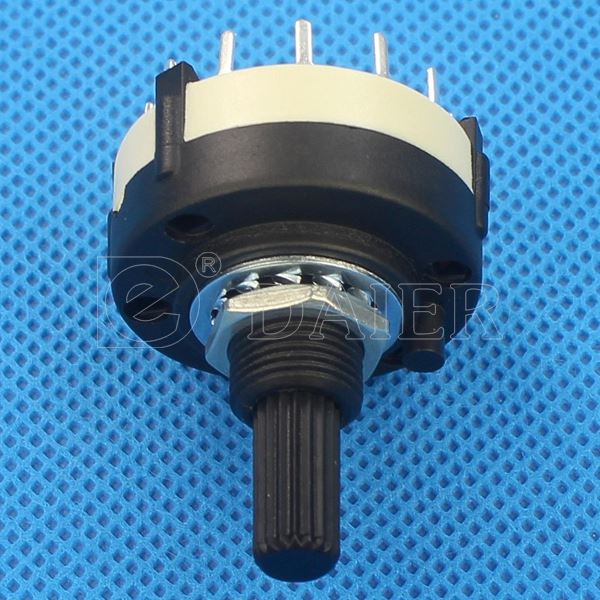

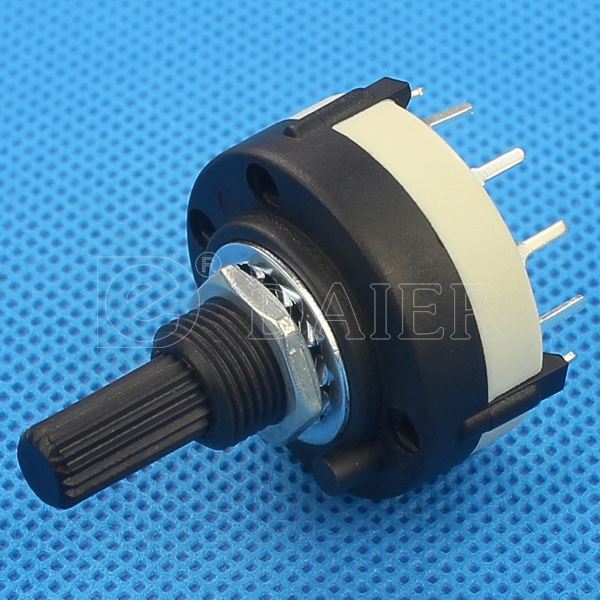

This is our RTS-01 rotary switch.
They can be made with PCB terminal.
They also can be made with different poles and different poles.
It is most popular used in audio equipment.
20mm shaft length 1Pole 7 Position PCB Rotary Switch
RTS-01-1P
Many of our rotary switches are MIL qualified to exacting electrical, mechanical and environmental standards. We offer many options including isolated positions, spring returns, adjustable stops, concentric shaft switches and configurable keylock switches. Standard rotaries can be configured with solder lug termination, PC termination, various angles of throw and multiple poles.
20mm shaft length 1Pole 7 Position PCB Rotary Switch
