Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- RTS-01-4P
- Max. Current:
- 0.3A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Product Name:

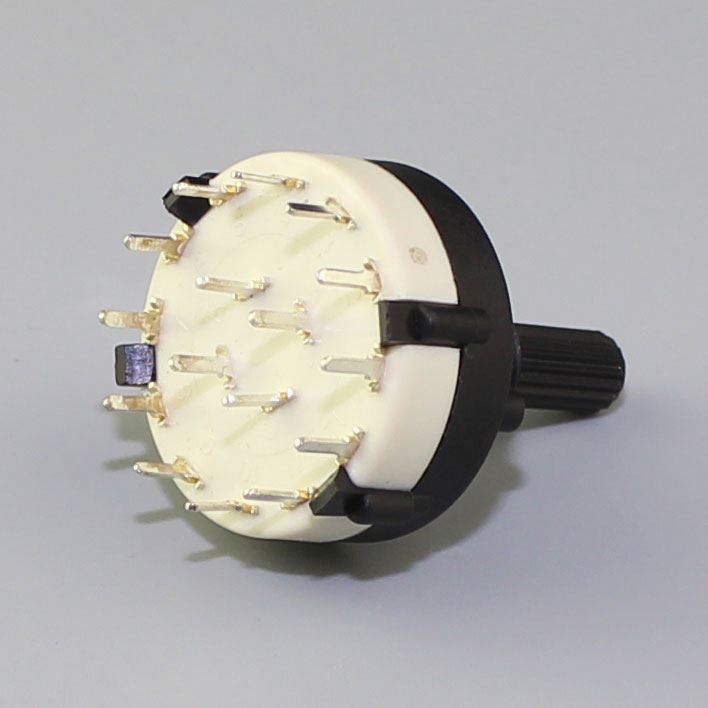

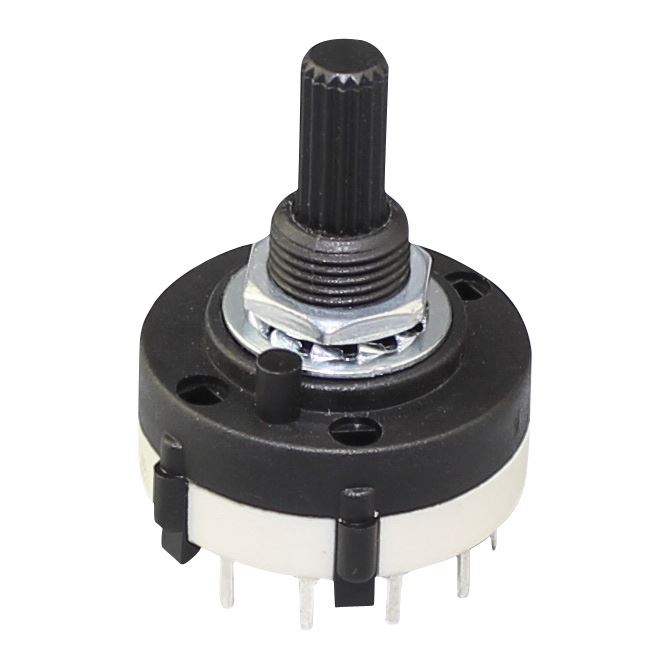

- 0.15A 250VAC 4 Pole Ark-les Rotary Switch
- Pole:
- 4 Pole
- Position:
- 7 Positions
- Terminal:
- PC Terminals
- Rated Current:
- 0.3A 125VAC; 0.15A 250VAC
- Contact resistance:
- 20MΩ Max
- Insulation resistance:
- 500VDC 100MΩ min
- Electrical Life:
- 10000 Cycles
- Dielectric Strength:
- 1 Minute 1000VAC
- Operating Temperature:
- -25℃~+85℃
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 30X20X15 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:

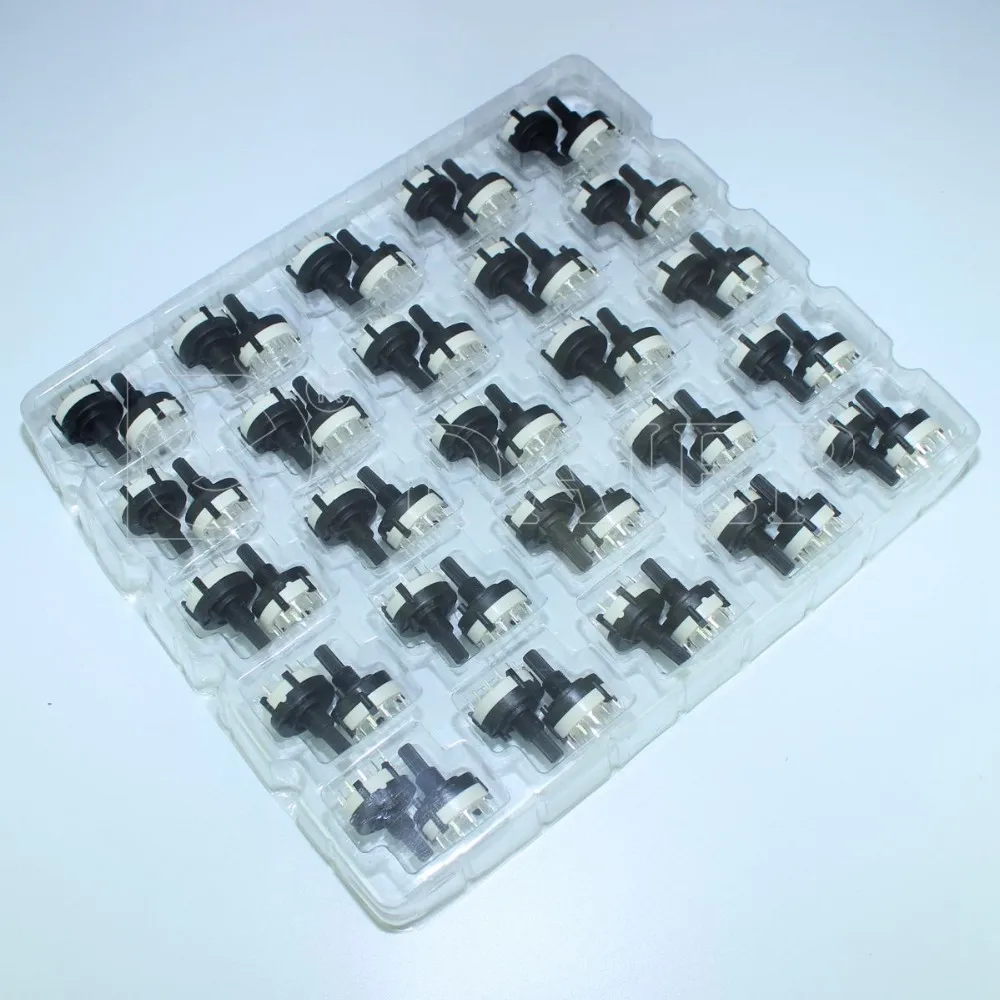

- 50pcs in a plastic box of 0.15A 250VAC 4 Pole Ark-les Rotary Switch
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
