Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- GQ30F-22EM
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:
- 2 pole push button switch
- Function:
- DPDT 2NO+2NC
- Operational Force:
- 5.5N
- Operating Temperature:
- -20°C ~+55°C
- Contact Resistance:
- 50 mΩ max
- Dielectric Strength:
- 2000VAC
- Insulation Resistance:
- 1000MΩ Min
- Led Color:
- Red/Green/Blue/Yellow/ White/Orange
- IP Class:
- IP67
- Material:
- Stainless Steel
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- push button round 30mm is 10pcs/box

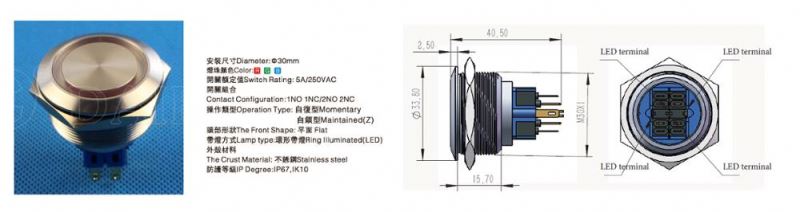

- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 10 To be negotiated
