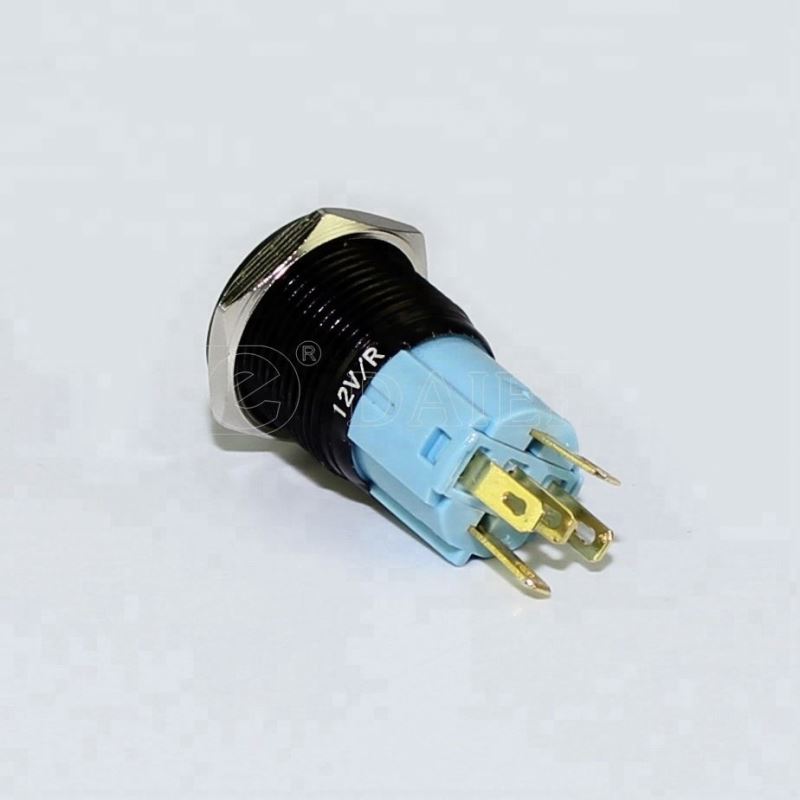

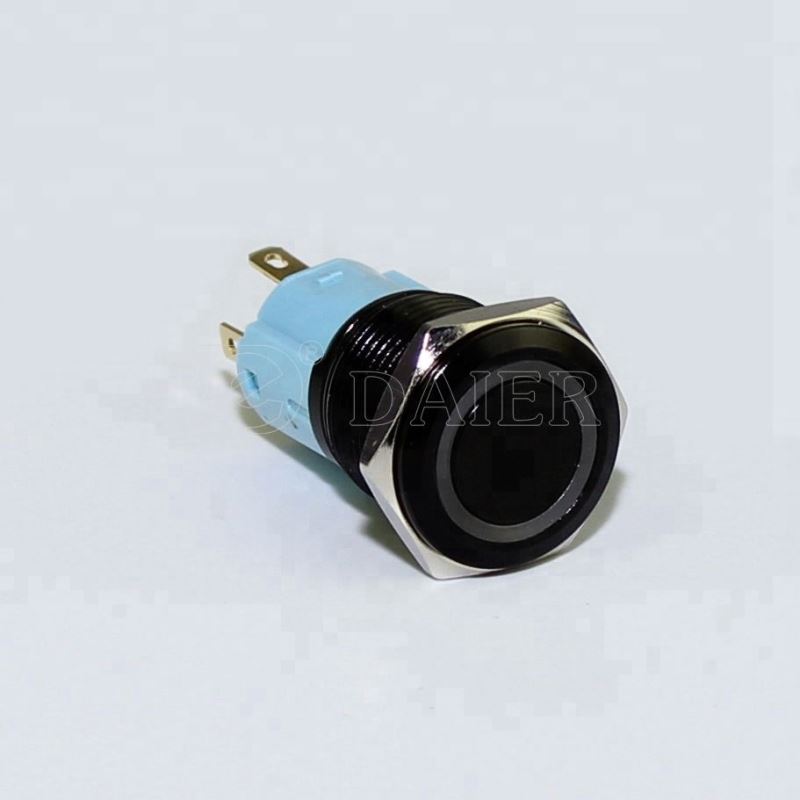

16MM Flat Button Ring Illuminate Momentary Or Latching Waterproof Metal Exit Push Button

Click on the image to view the original image

Product：	views：416MM Flat Button Ring Illuminate Momentary Or Latching Waterproof Metal Exit Push Button
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:26

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: LAS3-16F-11E

Protection Level:: IP67

Max. Current:: 3A

Max. Voltage:: 250VAC

Item Number:: Exit Push Button

Mounting Hole Size:: 16MM

Body Color:: Metal

Electric Life:: 50,000 cycles

Contact Resistance:: ≤30mΩ

Insulating Resistance:: ≥100mΩ 500V DC

Dielectric Strength:: 2000VAC

Operating Temperature:: -25°C ~+55°C

IP Class:: IP67

Operating Force:: 2-4N

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 21X14X6 cm

Gross weight per batch:: 1.5 kg

Package Type:: 16MM Flat Button Ring Illuminate Momentary Or Latching Waterproof Metal Exit Push Button is 40pcs/box

Picture Example:

Lead Time:

Quantity(Piece)	1 - 40000	>40000
Est. Time(days)	10	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	16MM Flat Button Ring Illuminate Momentary Or Latching Waterproof Metal Exit Push Button
Rating	3A 250VAC
Contact Resistance	30mΩ Max
Insulation Resistance	100mΩ Min
Dielectric Strength	2000VAC
Operating Temperature	-25°C ~+55°C
Electrical Life	50,000 Cycles
Operating Force	2-4N
