Home > Products > KFC-045-H 4.5x4.5 Tactile Switch

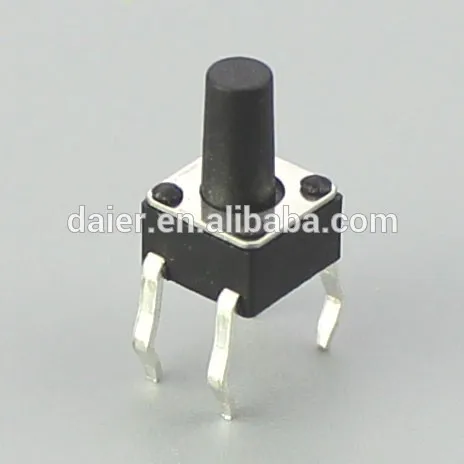

KFC-045-H 4.5x4.5 Tactile Switch
Click on the image to view the original image
Product： views：5KFC-045-H 4.5x4.5 Tactile Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KFC-045-H
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Rated Current:
50mA
Rated Voltage:
12VDC
Type of Actuation:
Tactile feedback
Housing Color:
Black
Terminal:
PCB Terminal
Size:
4.5x4.5xHmm
Free sample:
Available
OEM&ODM:
Yes
Packing:
Carton box
Operating Temperature:
-20~+70℃

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X18X7 cm
Gross weight per batch:
1.0 kg
Package Type:
1000pcs a box of KFC-045-H 4.5x4.5 Tactile Switch
Lead Time:
Quantity(Piece)1 - 1000000>1000000
Est. Time(days)10To be negotiated
Product Description
Product Name
KFC-045-H 4.5x4.5 Tactile Switch
Rating
50mA 12VDC
Funtion
OFF-(ON) Momentary
Button Color
Black 4.5x4.5 Tactile Switch
Electonical Life
100,000 Cycles
Environment temperature
 T-25 - T70
Operating Force
180/280(±30gf)
Products Show

KFC-045-H Mini Switch:

KFC-045-H is an on/off electronic 4.5*4.5 mini switch that is only on when the button is pressed or if there is a definitive change in pressure.
It was used for circuit board, there are many different kinds of height for the switch:3.8, 4.3, 4.8, 5.0, and 7.0mm.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
