Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- A16-20SR-B
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:

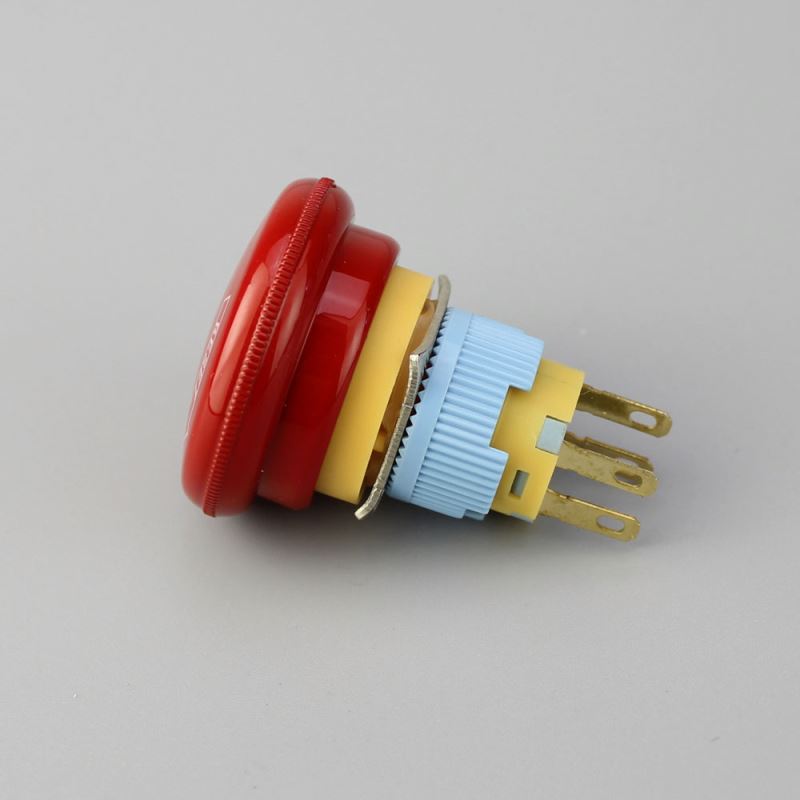

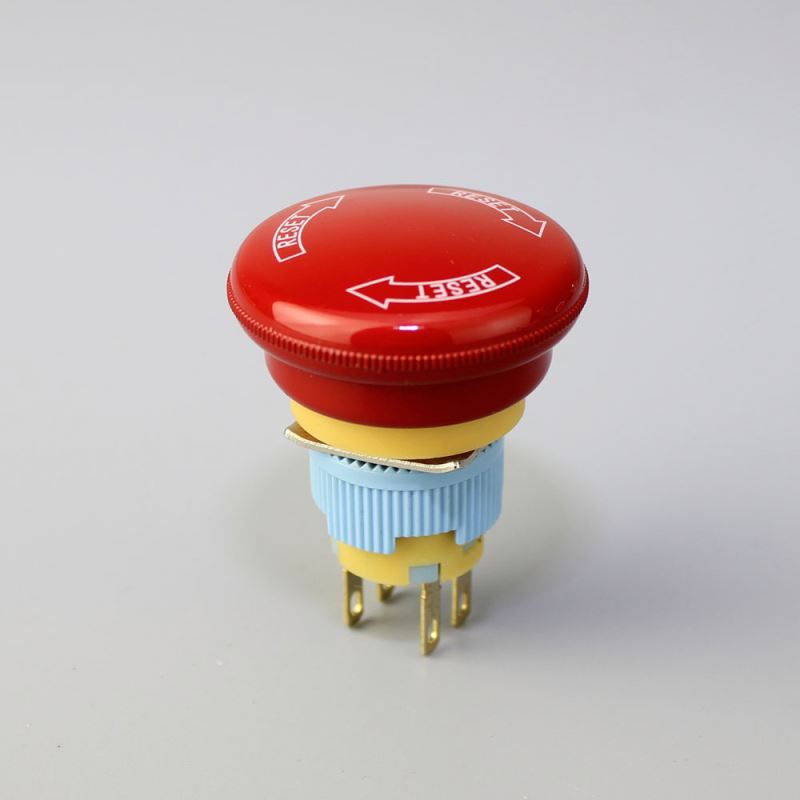

- 16mm IP65 Emergency Push-pull Button Switch
- Material:
- Plastic
- Electric life:
- 50,000 cycles
- Contact Resistance:
- 50 mΩ max
- Dielectric Strength:
- 2000VAC
- The Front Shape:
- Ball
- Operation Type:
- Push-Lock Turn-Reset
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- A16-20SR-B 16mm IP65 Emergency Push-pull Button Switch is 20pcs/bag
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 10 To be negotiated
