Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- A16-11SJ
- Protection Level:
- IP40, IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item:

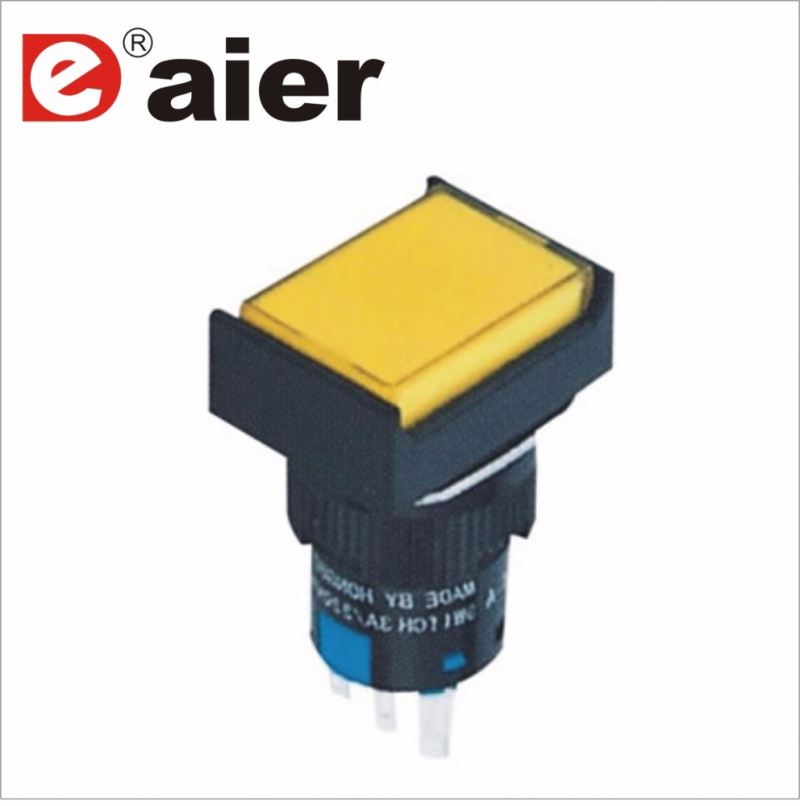

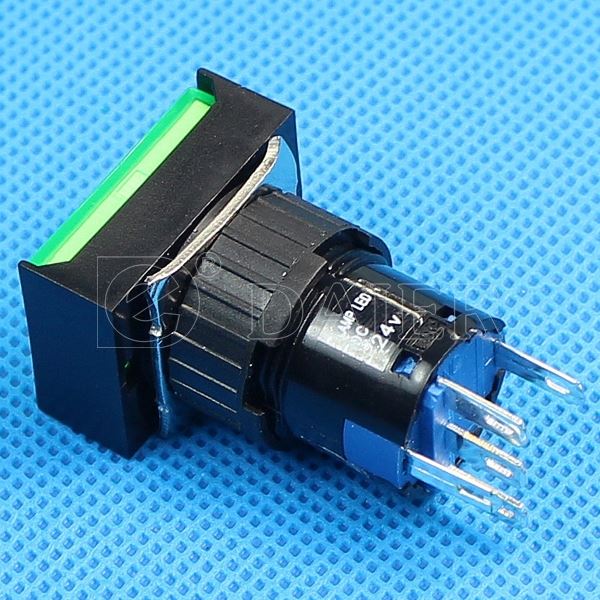

- 16mm momentary square illuminated pushbutton switch
- Material:
- Plastic
- Function:
- Momentary Push Button Switch
- Panel Size:
- 16mm
- Body Color:
- Black
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 100pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- A16-11SJ 16mm momentary square illuminated pushbutton switch is 40pcs/bag
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
A16-11SJ
Specifications:
1. Rating: 3A 250VAC
2. Function: Momentary Button Switch
3. IP Class: IP40
4. Insulation Resistance:100MΩ Min
5. Dielectric Strength: AC 1500V 1 Minute
6. Operating Temperature:-25°C~+55°C
7. Electrical Life: 10,000 Cycles Min
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
