- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- A16-11ZX
- Protection Level:
- IP40, IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item:

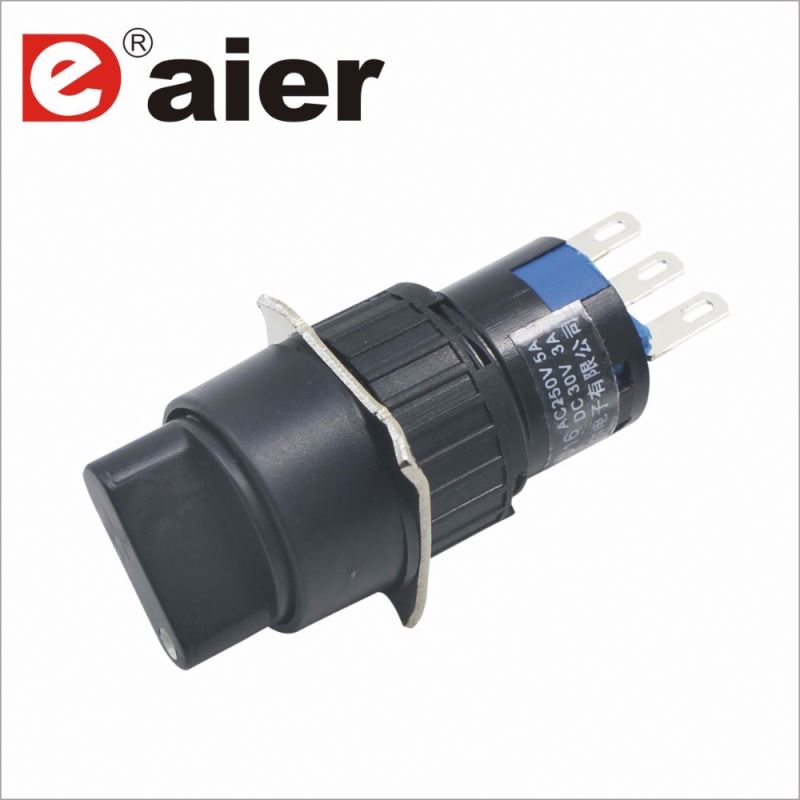

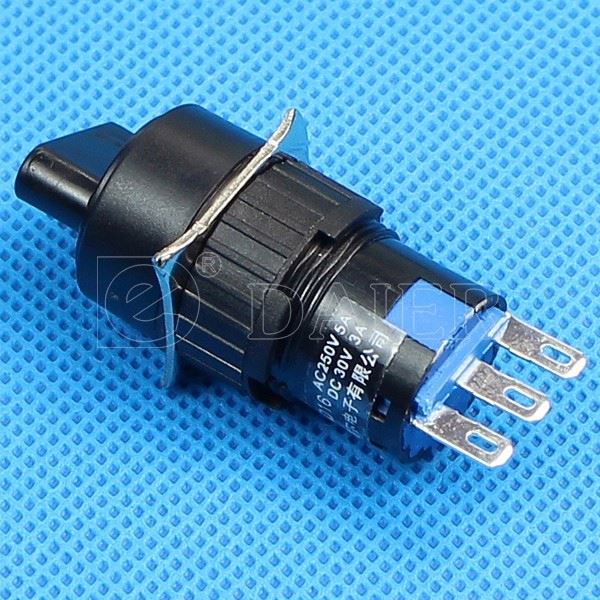

- 3 Terminal 3 Position Push Switch
- Material:
- Plastic
- Function:
- 2 Position(or 3 Position)
- Panel Size:
- 16mm
- Body Color:
- Black
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 40pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 0.5 kg
- Package Type:
- A16-11ZX is 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
A16-11ZX
Specifications:
1. Rating: 3A 250VaC
2. Function: 2 Position(or 3 Position)
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 2.5-4N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
A16-11SJ-N
16mm 1NO1NC Momentary Rectangular Button Illuminated Plastic Push Button Switch
A16-11SM
16mm 1NO1NC Round Mushroom Button Momentary Plastic Push Button Switch
16mm 1NO1NC Mushroom Button Emergency Stop Push Button Switch
A16-11ZK2
16mm 5A 250VAC IP65 Emergency Mushroom Push Button Switch
16mm Buzzer
A16-11ZK

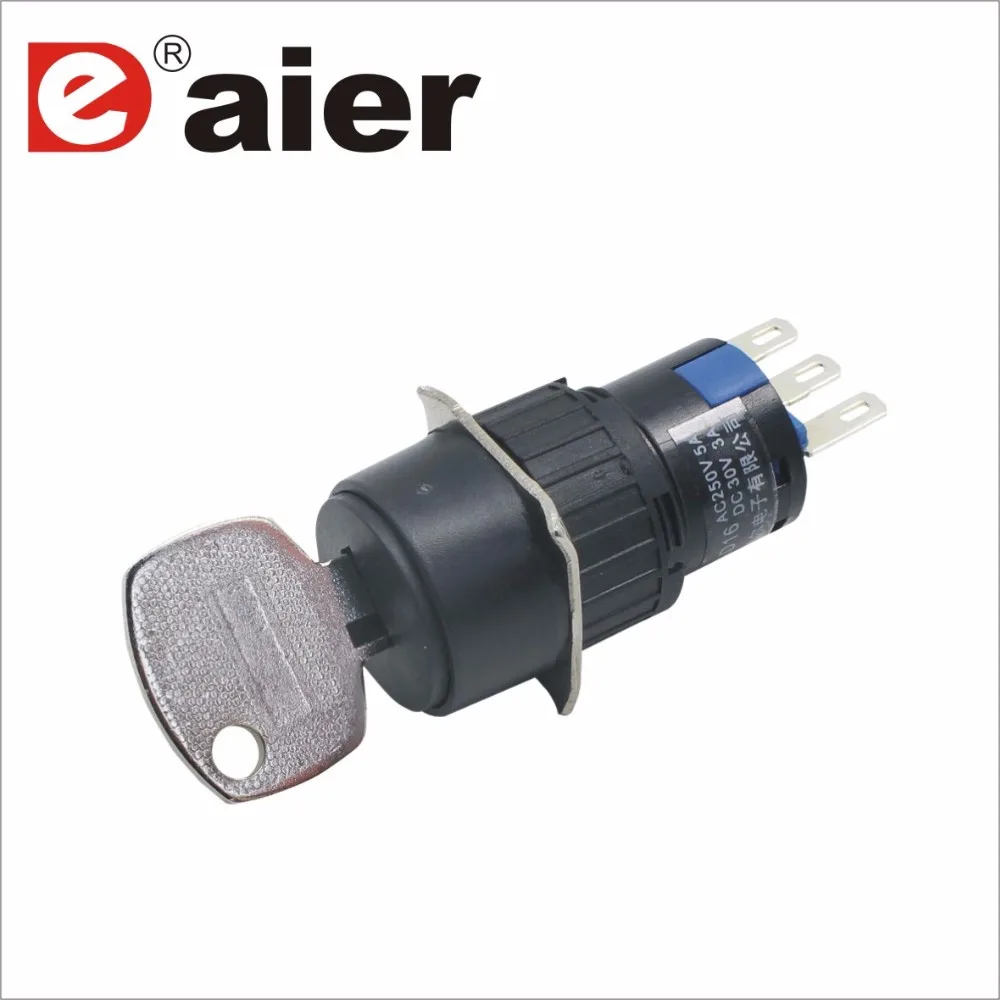

16mm 3Pin SPDT 2Postion Key Switch
