Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- PZ19C-10
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:
- 19mm Wireless Colorful Momentary Metal Piezo Push Button Switch
- Function:
- Momentary
- Led:
- Without
- Mounting hole:
- 19mm
- Terminal:
- Wired leads
- Front head:
- Concave
- Material:
- Stainless Steel/Aluminum Plating
- Housing color:
- Silver/Black/Red/Yellow/Blue/Green
- Operating Temperature:
- -20°C ~+55°C
- Electric life:
- 50,000 cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.3 kg
- Package Type:
- 40pcs PZ19C-10 of 19mm Aluminum Plating IP67 Push Button Piezo Igniter
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 10 To be negotiated
PZ19C-10

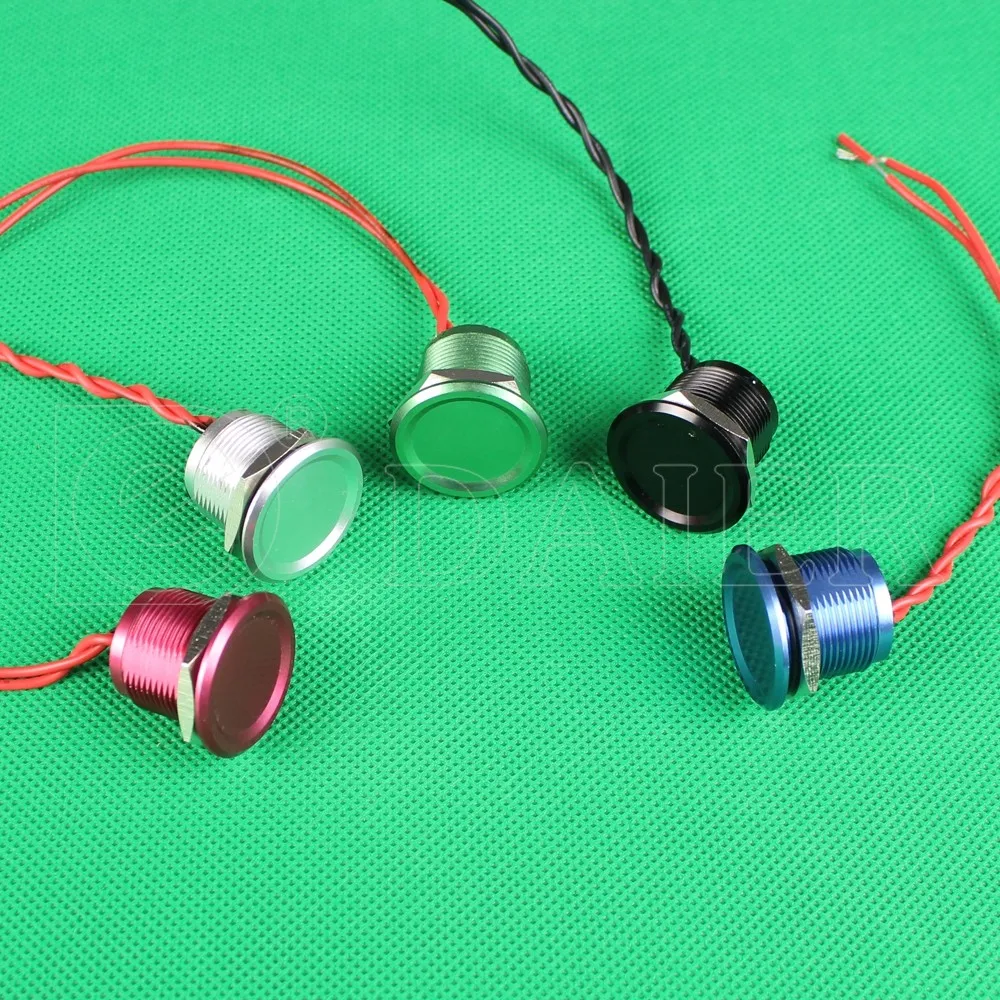

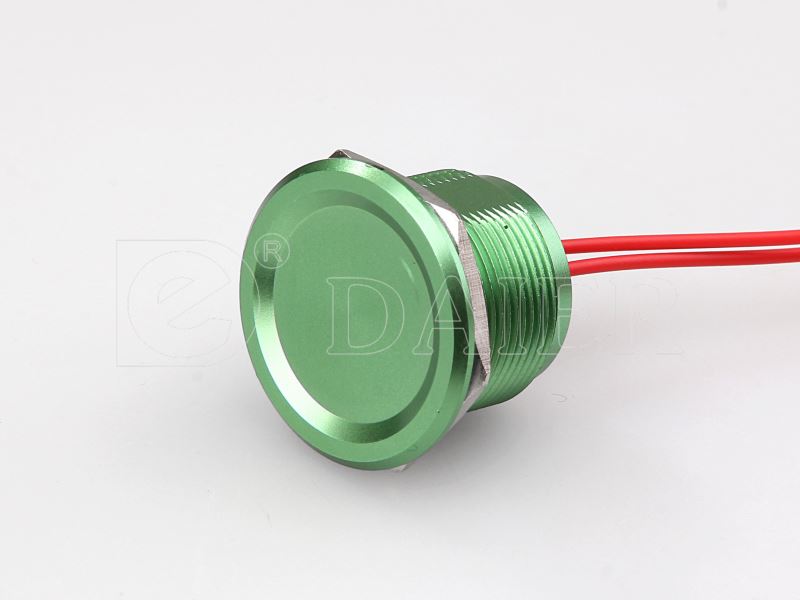

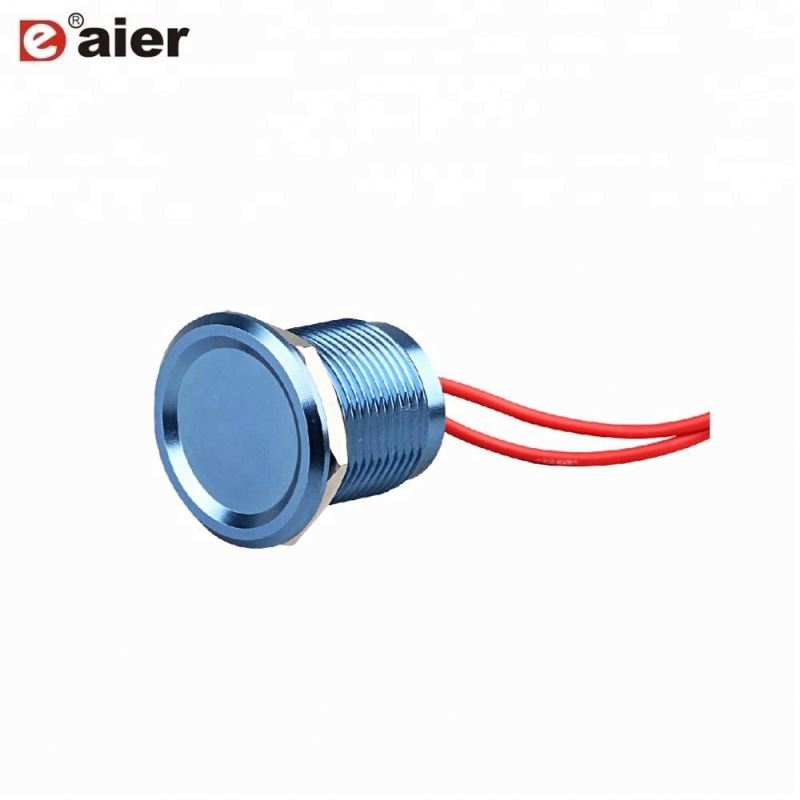

19mm Wireless Colorful Momentary Metal Piezo Push Button Switch
Specifications:
1. Rating: 5A 250VaC
2. Function: Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N
Piezo switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
