Home > Products > JQX-13F(LY2) 14Pins 4NO4NC 12V/24VDC/220VAC Electric Relay

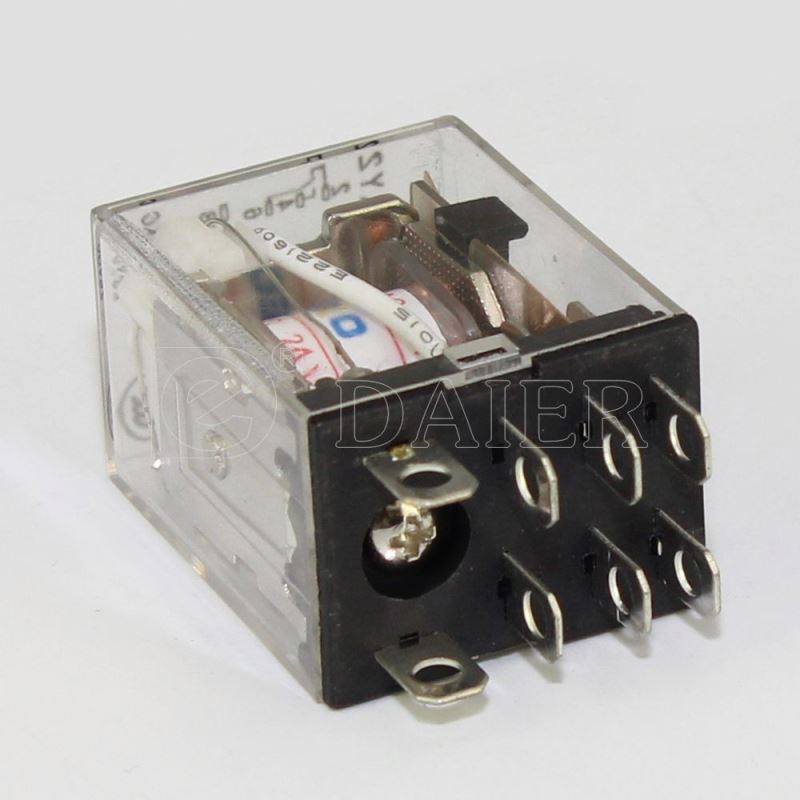

JQX-13F(LY2) 14Pins 4NO4NC 12V/24VDC/220VAC Electric Relay
Click on the image to view the original image
Product： views：4JQX-13F(LY2) 14Pins 4NO4NC 12V/24VDC/220VAC Electric Relay
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
JQX-13F(LY2)
Theory:
Electromagnetic Relay
Usage:
General Purpose
Size:
Miniature
Protect Feature:
Sealed
Contact Load:
Low Power
Item:
JQX-13F(LY2)
Rating:
10A
Voltage:
240VAC/28VDC
Coil Rating:
6V-250V
LED Color:
RED
Terminal:
8PIN Solder terminal
Circuit:
2NO2NC
Popular Used Voltage:
6VDC/12VDC / 24VDC/ 220 VAC
Operating Temperature:
-25℃~+75℃
Electrical Life:
≥10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X15X7 cm
Gross weight per batch:
1.5 kg
Package Type:
20pcs/box,JQX-13F(LY2) 14Pins 4NO4NC 12V/24VDC/220VAC Electric Relay
Lead Time:
Quantity(Piece)1 - 20000>20000
Est. Time(days)10To be negotiated
Product Description
Item
JQX-13F(LY2) 14Pins 4NO4NC 12V/24VDC/220VAC Electric Relay
Rating
10A 240VAC /28VDC
Circuit
2NO2NC
Housing Color
Black
Contact Resistance
≦30MΩ
Dielectric Resistance
1500VAC 1 Minute
Insulation Resistance
≧100MΩ
Important:
The Price is not include the socket, if you need the socket, pls check the related product for purchase, pls note!!!
Electrical life
>10000 Cycles

Electromagnetic RELAY & RELAY SOCKET:


It has applied to all kinds of equipment, it is remote control, testing, communication, automatic control, electromechanical integration door control industry relay.


Its main functions are simultaneous switching, interrupting, switching on parallel circuits and controlling large currents with small control variables. It can form control circuits to realize automatic operation..
