5mm Mini Normally Open Push Button Switch

Click on the image to view the original image

Product：	views：45mm Mini Normally Open Push Button Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:26

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: DS-402

Protection Level:: IP40

Max. Current:: 0.5A

Max. Voltage:: 125VAC

Product type:: 5mm Mini Normally Open Push Button Switch

Product name:: DS-402

Rating:: 0.5A 125V

Function:: Momentary

Panel Size:: 5.2mm

Button Color:: Red/ Green//Black/White

Terminal:: 2 Pin, PCB Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Package:: 500pcs/bag

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X5 cm

Gross weight per batch:: 1.0 kg

Package Type:: 500pcs/bag of 5mm Mini Normally Open Push Button Switch

Lead Time:

Quantity(Piece)	1 - 5000	>5000
Est. Time(days)	7	To be negotiated

Product Description

Model	DS-402
Type	5mm Mini Normally Open Push Button Switch
Rating	0.5A 125VAC
Function	Momentary Push Button Switch
Button Size	5.2mm
Light	Without Light
Degree of Protection	IP40

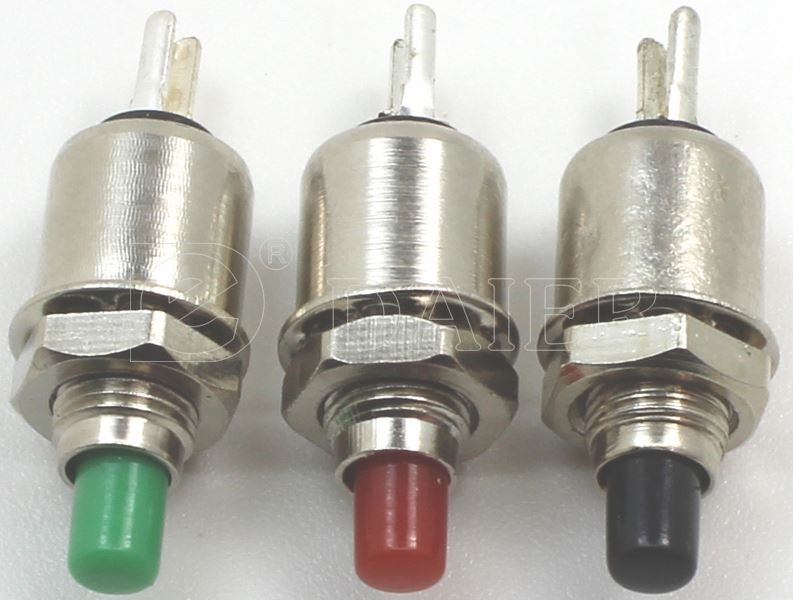

Button Color Avaliable	Red/ Green/Black/White
Operating Temperature	-25°C ~+85°C
Contact Resistance	50mΩ max.
Insulation Resistance	100MΩmin. 500V DC
Dielectric Strength	AC 1500V 1 minute
Electrical Life	10,000 cycles min

Product Show

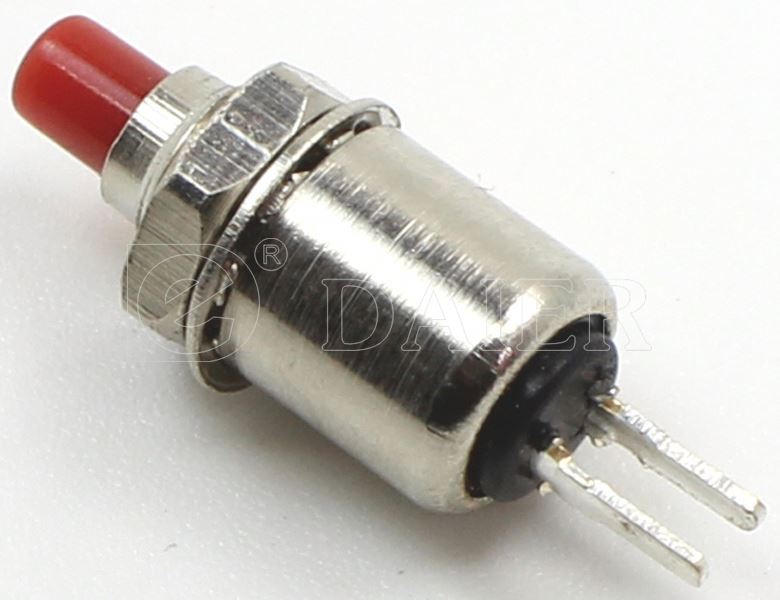

DS-402

5mm Mini Normally Open Push Button Switch

Specifications:
1. Rating: 0.5A 125VDC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min
6. Operating Temperature:-40°C~+85°C
7. Function: Latching/ Momentary Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
