Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- ASW-13D
- Max. Current:
- 20A
- Max. Voltage:
- 12VDC
- Mechanical Life:
- 10000Cycles
- Item:

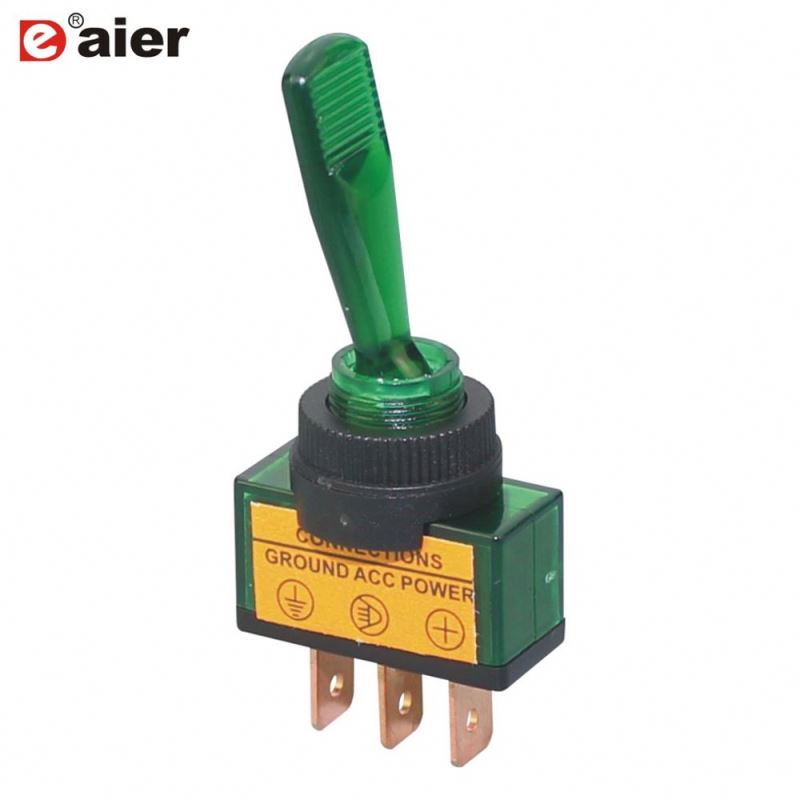

- ASW-13D 20A 12MM Single Pole 3P ON OFF Toggle Switch Green 24V
- Model:
- ASW-13D
- Circuitry trait:
- ON-OFF
- Housing color:
- Red,Green,Yellow,Blue
- Terminal type:
- PC Terminals
- Rating Current:
- 20A
- Rating Voltage:
- 12VDC
- Bubble Rating:
- 12V,24V(Only Red Color)
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,TUV
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 25X19X7 cm
- Gross weight per batch:
- 1.11 kg
- Package Type:
- 100pcs/box,2500pcs/carton of ASW-13D 20A 12MM Single Pole 3P ON OFF Toggle Switch Green 24V

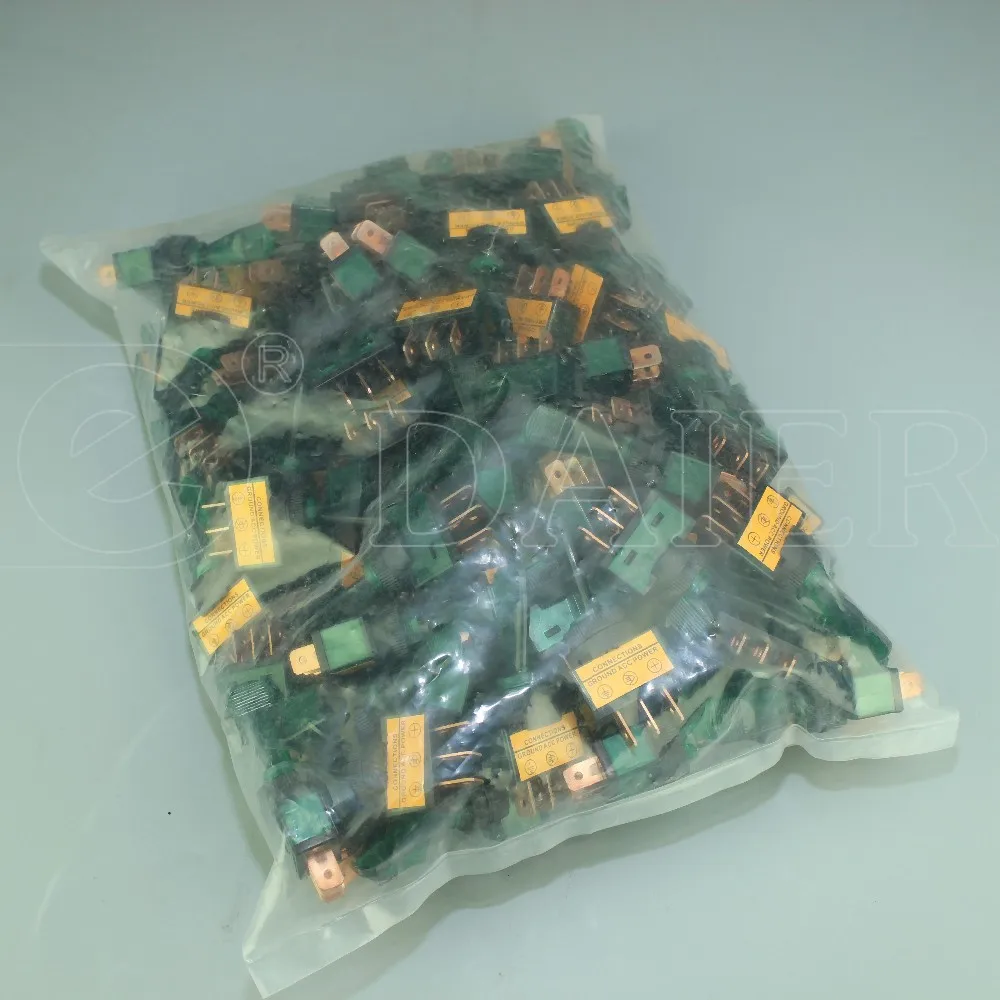

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
