Home > Products > KCD5-2-101 2PIN ON OFF SPST T85 CQC Round Rocker Switch 1E4
KCD5-2-101 2PIN ON OFF SPST T85 CQC Round Rocker Switch 1E4
Click on the image to view the original image
Product： views：4KCD5-2-101 2PIN ON OFF SPST T85 CQC Round Rocker Switch 1E4
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:27
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KCD5-2-101
Max. Current:
6A
Max. Voltage:
250VAC
Mechanical Life:
10000 Cycles
Item:
Rocker Switch
Model:
KCD5-2-101
Fuction:
ON-OFF
Rating:
3A 250VAC; 6A 125VAC
Housing Color:
Black, White
Button Color:
Red, Green, Yellow, Blue
Terminal type:
Solder Terminals
Operating Temperature:
-25℃~+85℃
Certificate:
CE,CQC
Standard:
IEC Standard

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X15X7 cm
Gross weight per batch:
1.0 kg
Package Type:
100pcs/box,1000pcs/carton of KCD5-2-101 2PIN ON OFF SPST T85 CQC Round Rocker Switch 1E4
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)10To be negotiated
Product Description
lItem
KCD5-2-101 2PIN ON OFF SPST T85 CQC Round Rocker Switch 1E4
Function
ON OFF  t85 cqc round rocker swtich 1e4
Rating
3A 250VAC; 6A 125VAC
Contact Resistance
< 35MΩ
Insulation Resistance
500VDC 1000MΩMinute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
10000 CYCLES

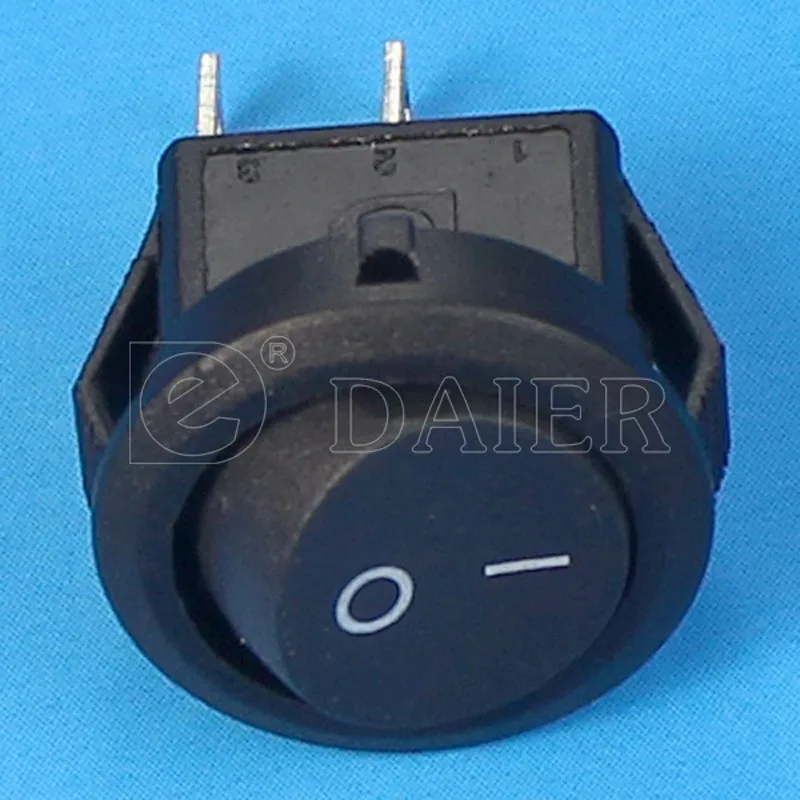

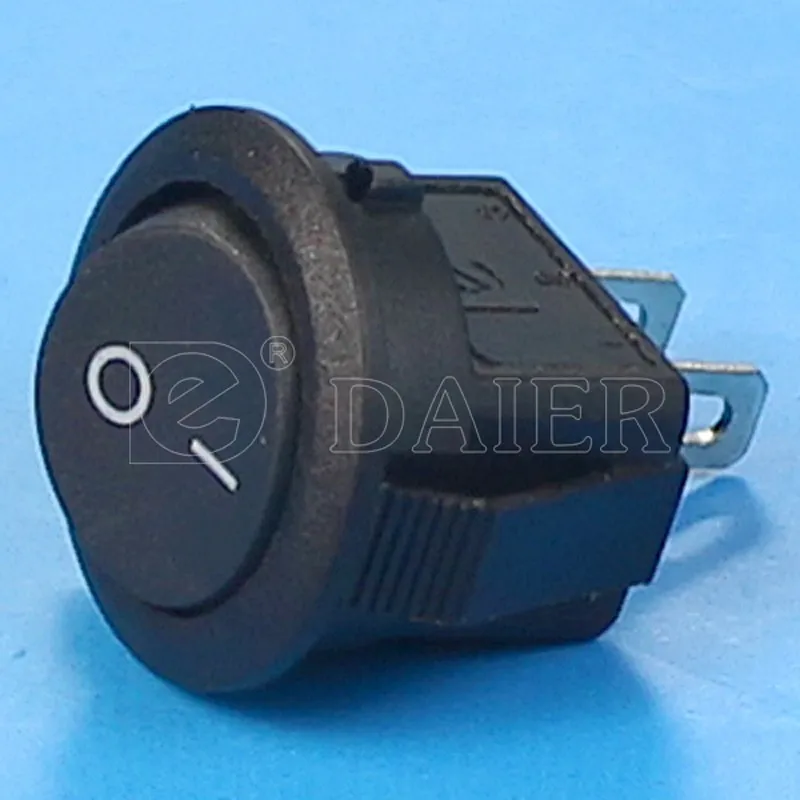

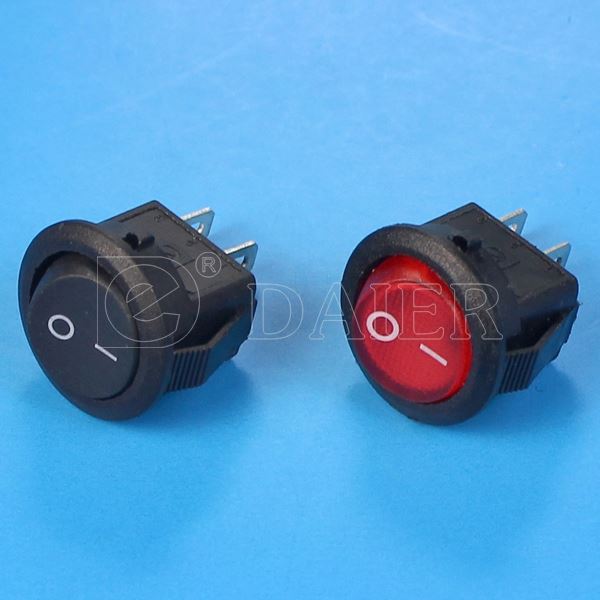

KCD5-2-101 White Rocker Switch:

Daier KCD5-2-101 on offsub-miniatur rocker switch offer a low switching current in a compact design.

It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.

They have high quality for long life at heavy loads and industry-standard mounting dimensions.

This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
