Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KCD1-4-201W
- Max. Current:
- 10A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item:
- Rocker Switch
- Model:
- KCD1-4-201W
- Fuction:
- ON-OFF
- Rating:
- 10A 125VAC; 6A 250VAC
- Housing Color:
- Black
- Button Color:
- Black, Red, Green, Orange, Blue
- Terminal type:
- Solder Terminals
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,CQC
- Standard:
- IEC Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X7 cm
- Gross weight per batch:
- 0.375 kg
- Package Type:
- 100pcs/box,3000pcs/carton of Double Pole ON OFF 4PIN IP67 110V Rocker Switch With Solder Terminal

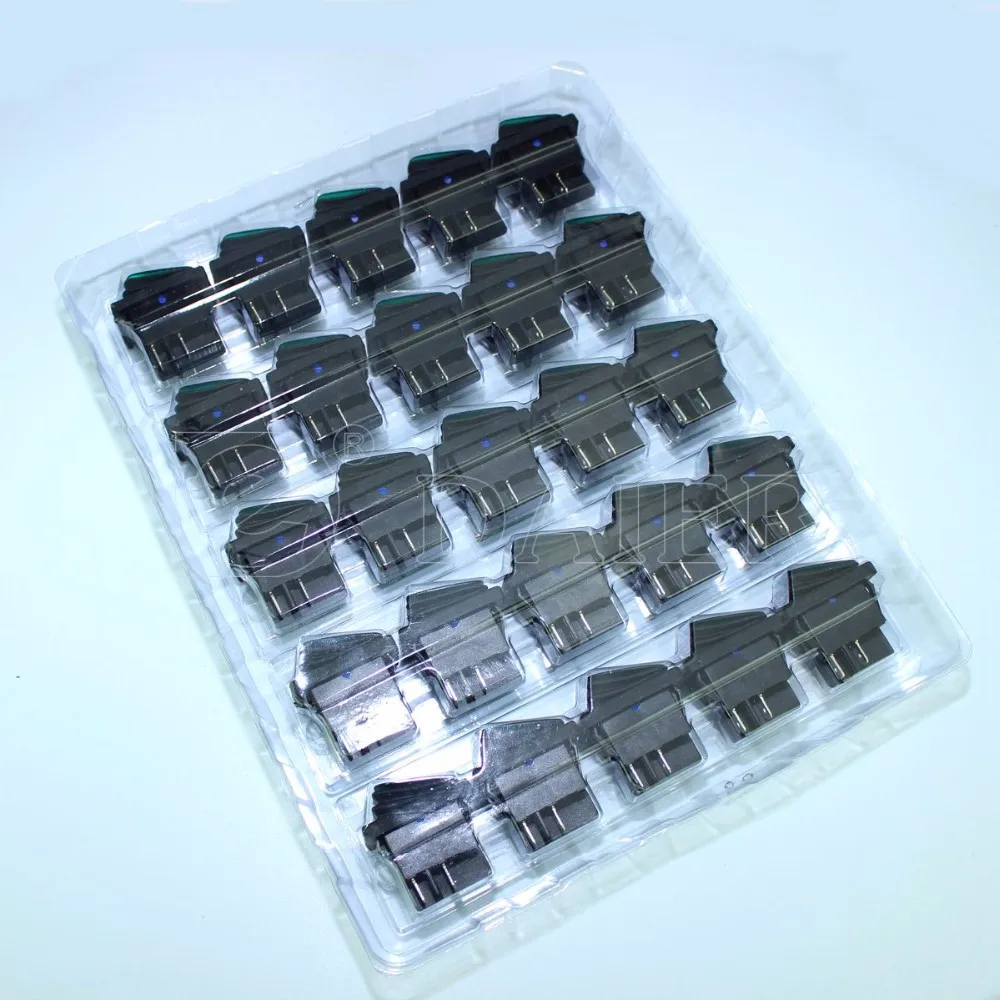

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
Product Description

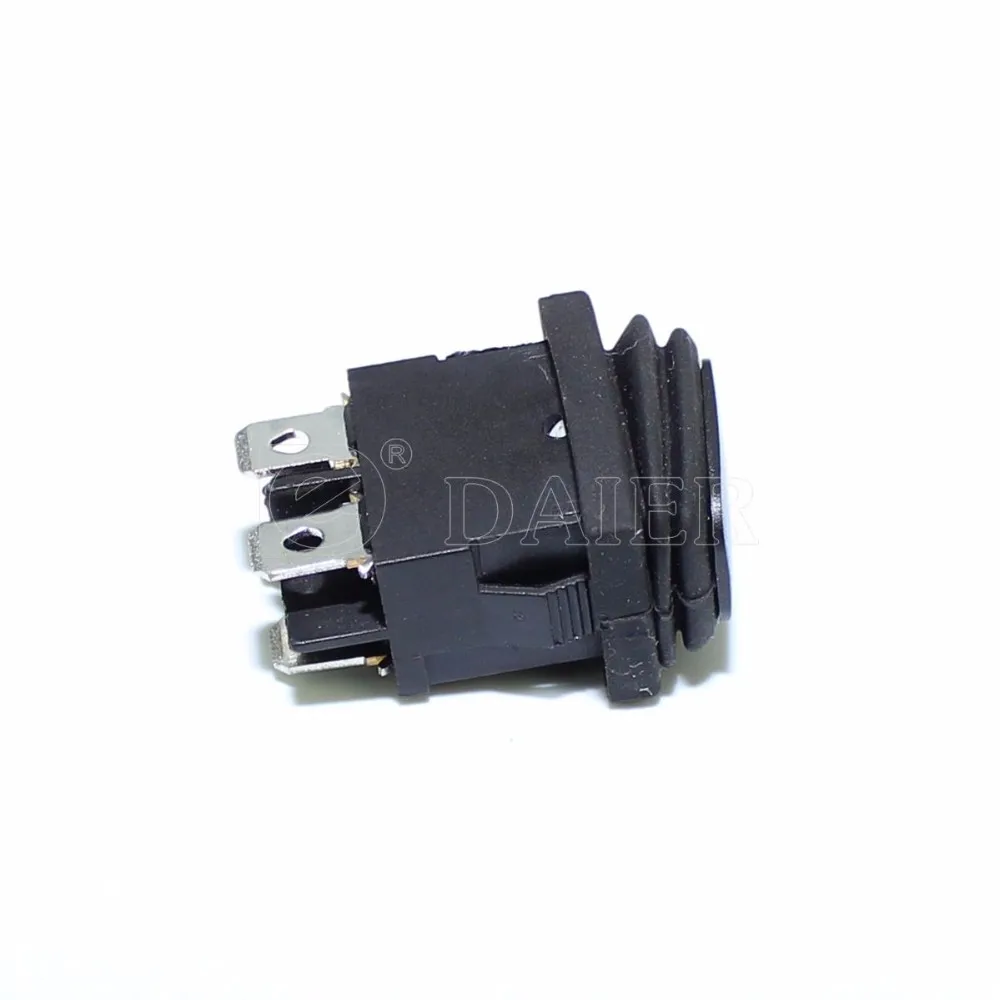

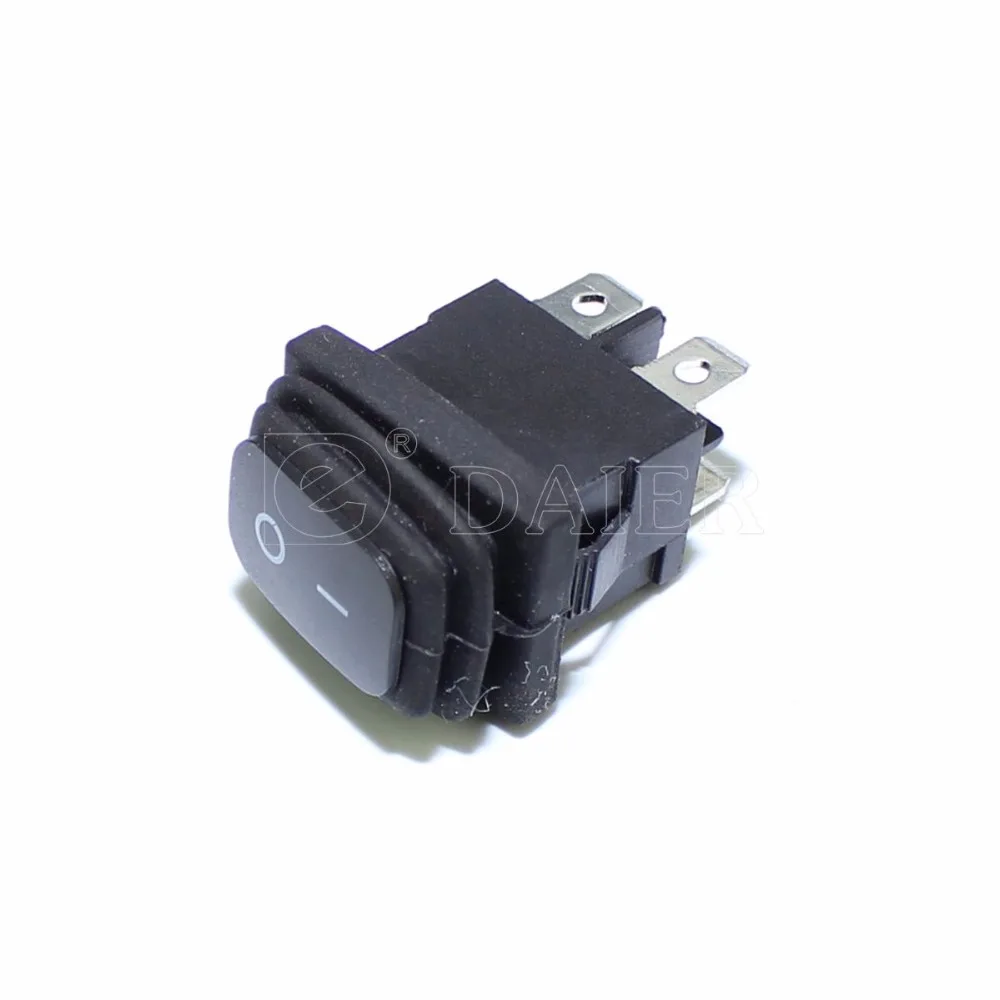

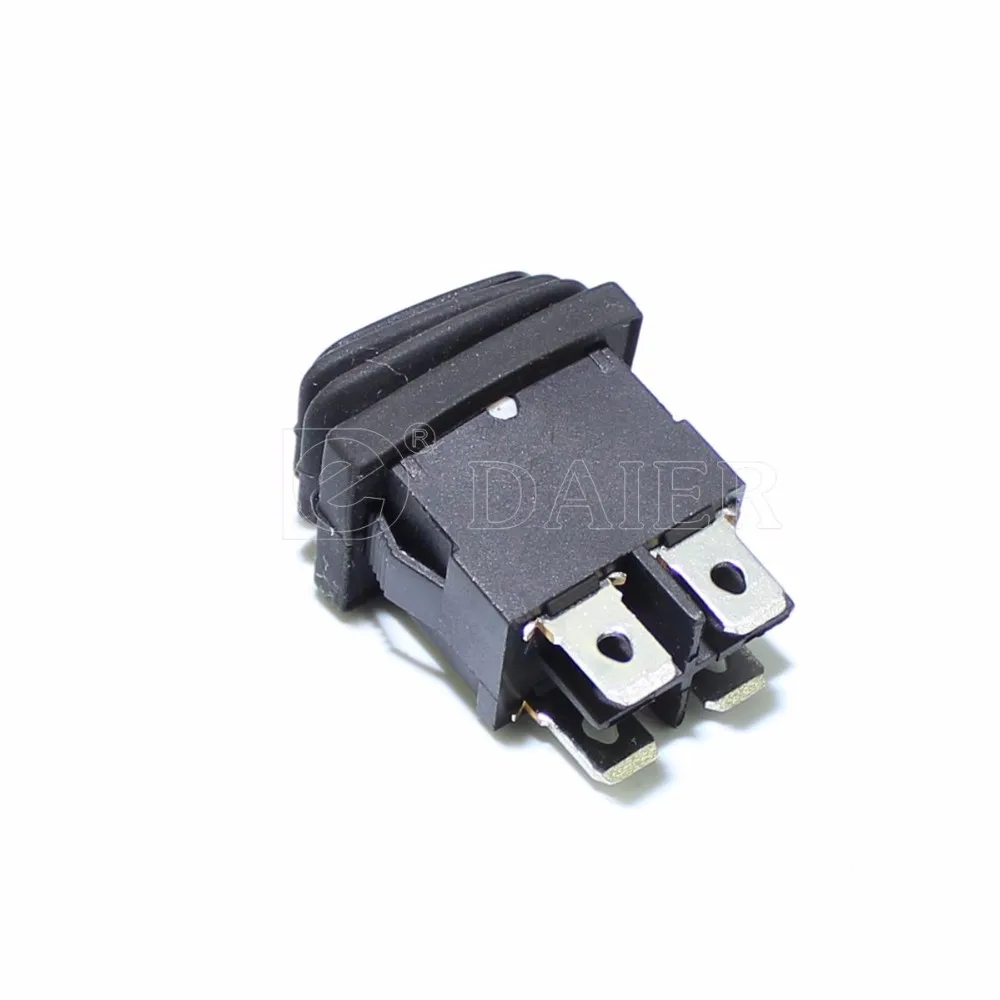

KCD1-4-201W Waterproof Rocker Switch 12V:
Daier KCD1-4-201W on off waterproof miniature rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
