DPST 4 Pin LED Wireless Push Button Switch

Click on the image to view the original image

Product：	views：2DPST 4 Pin LED Wireless Push Button Switch
Branch：	Daier
Type：	Push Button Switch
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:27

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: KD4-21N/KD4-22N

Protection Level:: IP40

Max. Current:: 15A

Max. Voltage:: 250V

Product type:: DPST 4 Pin LED Wireless Push Button Switch

Type:: Push Button Switch

Product name:: KD4-21N/KD4-22N

Rating:: 15A 250V

Function:: Latching/Momentary

Panel Size:: 22x29.4mm

Button Color:: Red/ Yellow/Green/White

Terminal:: Solder Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X5 cm

Gross weight per batch:: 0.4 kg

Package Type:: 25pcs/bag of DPST 4 Pin LED Wireless Push Button Switch

Lead Time:

Quantity(Piece)	1 - 25000	>25000
Est. Time(days)	10	To be negotiated

Product Description

Model	KD4-21N/22N
Type	DPST 4 Pin LED Wireless Push Button Switch
Rating	15A 250V
Button Size	22x29.4mm
Function	KD4-21N ON-OFF
Function	KD4-22N OFF-(ON)
Light	With Light
Terminal	4 Pin, Solder Terminal
Degree of Protection	IP40
Button Color Avaliable	Red/Green/Yellow/Blue/ Black/White
Housing Color Available	White/Black
Operating Temperature	-25°C ~+85°C
Contact Resistance	50mΩ max.
Insulation Resistance	100MΩmin. 500V DC
Dielectric Strength	AC 1500V 1 minute
Electrical Life	10,000 cycles min

Product Show

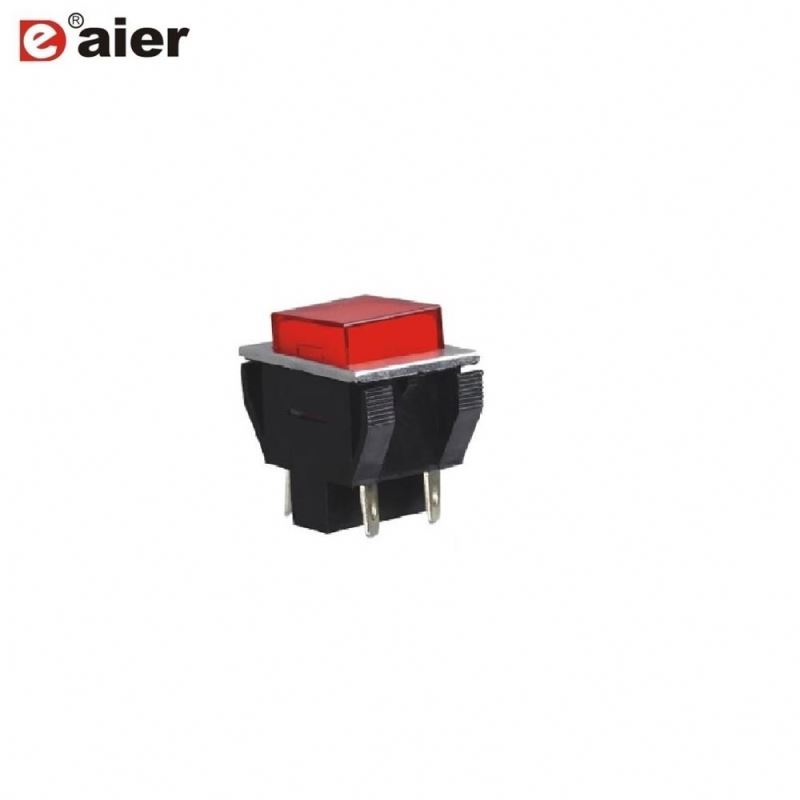

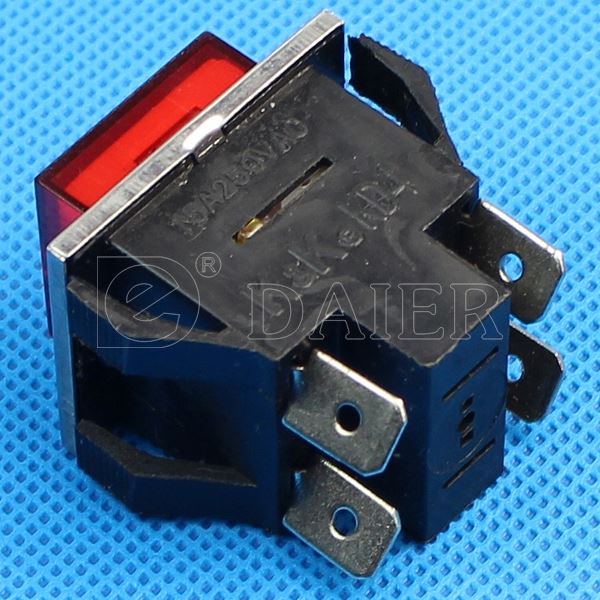

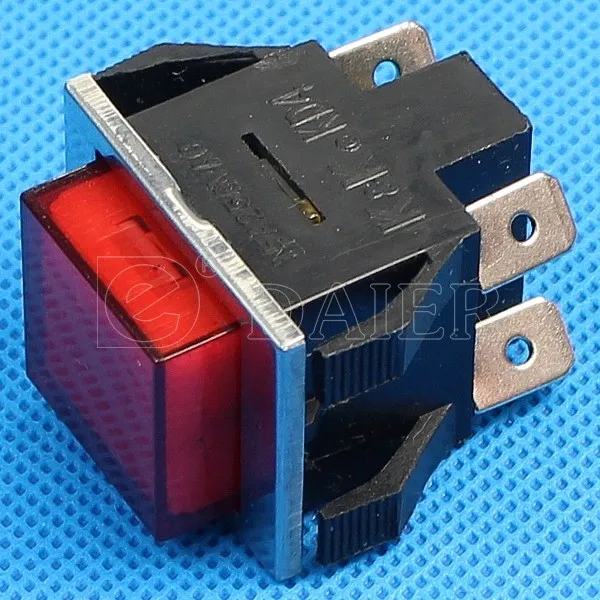

KD4-21N/KD4-22N

Specifications:
1. Rating: 15A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Momentary/Latching Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
