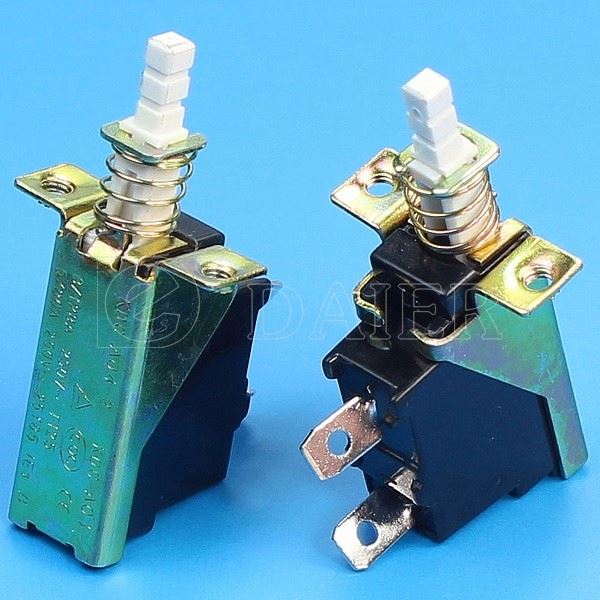

Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KDC-A04
- Protection Level:
- IP40
- Max. Current:
- 2A
- Max. Voltage:
- 250VAC
- Item:
- kdc a042 pin latchingpower switch
- Material:
- Plastic
- Function:
- Latching Push Button Switch
- Terminal Quantity:
- 2P
- IP Class:
- IP40
- Contact Resistance:
- ≤0.05MΩ
- Insulation Resistance:
- ≥100 MΩ
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 100pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- KDC-A04 is 200pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated
KDC-A04
Specifications:
1. Rating: 2A 250VAC
2. Terminal Quantity: 2Pin
3.Contact Resistance: 0.05Ω max
4. Insulation Resistance:100MΩ min
5. Dielectric Strength:1500V AC
6. Operating Temperature: T85
7. Function: Latching Push Button Switch
8. IP Class: IP40
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
