Home > Products > 50mA 12VDC 6 Pin PCB Terminal 12X12 Illuminated Tact Switch LED

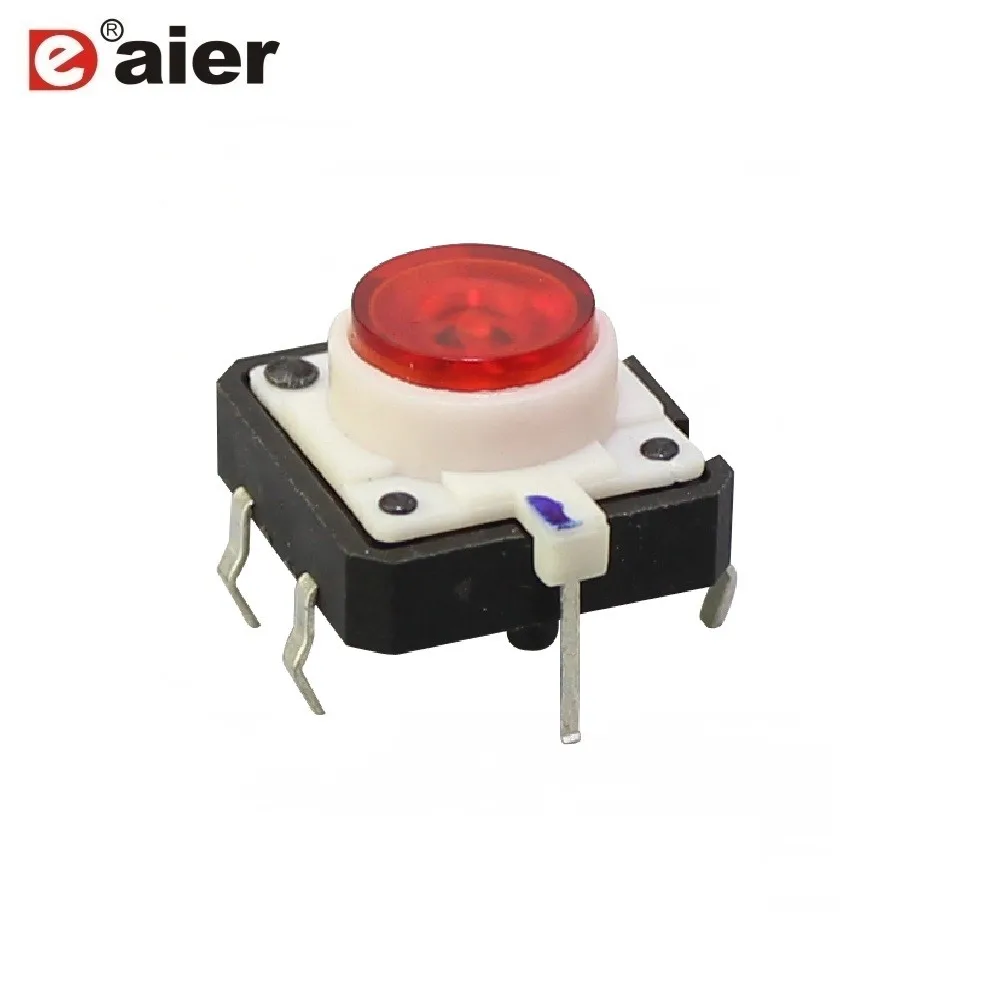

50mA 12VDC 6 Pin PCB Terminal 12X12 Illuminated Tact Switch LED
Click on the image to view the original image
Product： views：650mA 12VDC 6 Pin PCB Terminal 12X12 Illuminated Tact Switch LED
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:27
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
TSL-012
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Item:
50mA 12VDC 6 Pin PCB Terminal 12X12 Illuminated Tact Switch LED
Rating:
50mA 12VDC
Material:
Plastic
Function:
OFF-(ON)

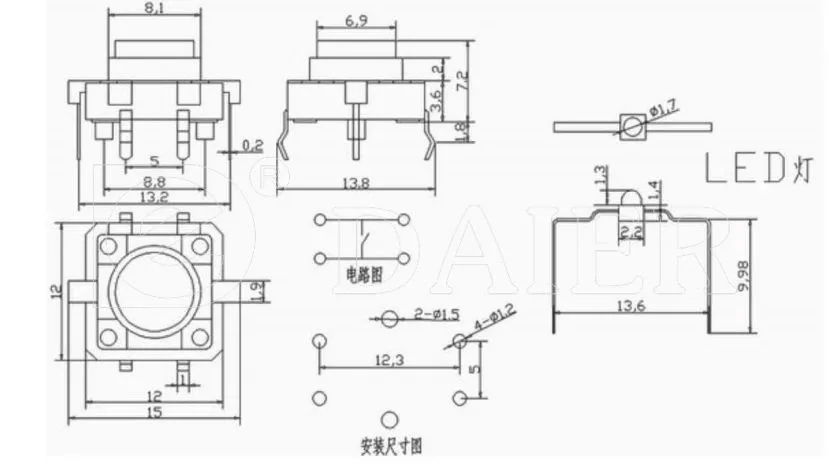

Size:
12X12X7.3 MM
LED Color:
Blue/Green/White/Red/Yellow
Button Color:
Blue/Green/Transparent/Red/Yellow
Terminal:
PCB Terminal
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
0.5 kg
Package Type:
500Pcs A Box Of 50mA 12VDC 6 Pin PCB Terminal 12X12 Illuminated Tact Switch LED
Lead Time:
Quantity(Piece)1 - 500000>500000
Est. Time(days)10To be negotiated
Product Description
Item
50mA 12VDC 6 Pin PCB Terminal 12X12 Illuminated Tact Switch LED
Rating
50mA 12VDC
LED Voltage
2-3V
Operating Direction
Top Push
Operating Life
Over 100,000 cycles
Travel
0.25mm
Operating Temperature
-40~+90  12x12 illuminated tact switch led
Product Show

TSL-012 is an on/off smd tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.

The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.

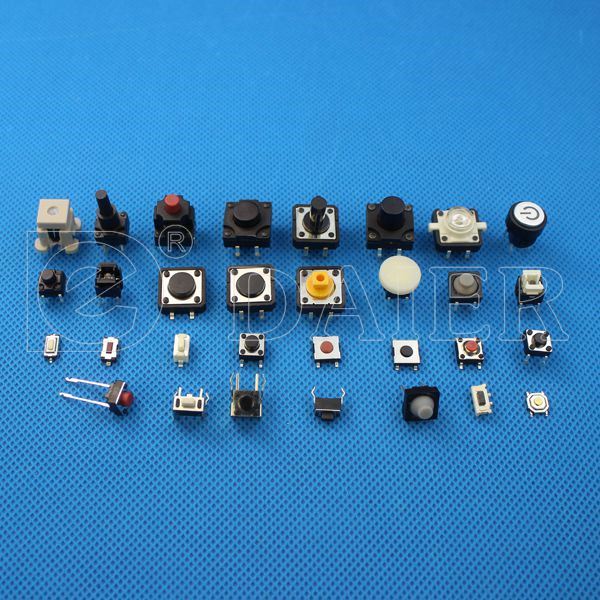

Daier offers a broad range of miniature tactile, ultra-miniature tactile and micro miniature tactile switches for printed circuit board mounting.Available in J bend, gull wing, illuminated, sealed, low-profile, low-noise, SMT and through hole versions, Daier"s tactile switches are designed for the most demanding applications.
