Home > Products > Plastic 4 Pin 12x12 Tact Switch Lever Switch SMD
Plastic 4 Pin 12x12 Tact Switch Lever Switch SMD
Click on the image to view the original image
Product： views：4Plastic 4 Pin 12x12 Tact Switch Lever Switch SMD
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:27
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KFC-012A-H
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Item:
Plastic 4 Pin 12x12 Tact Switch Lever Switch SMD
Rating:
50mA 12VDC
Material:
Metal
Function:
OFF-(ON)
Size:
12x12 MM
Height:
4.3~21 MM
Terminal:
SMD Terminal
Packing:
Carton Packing
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
1.0 kg
Package Type:
500Pcs A Box Of Plastic 4 Pin 12x12 Tact Switch Lever Switch SMD
Lead Time:
Quantity(Piece)1 - 500000>500000
Est. Time(days)10To be negotiated

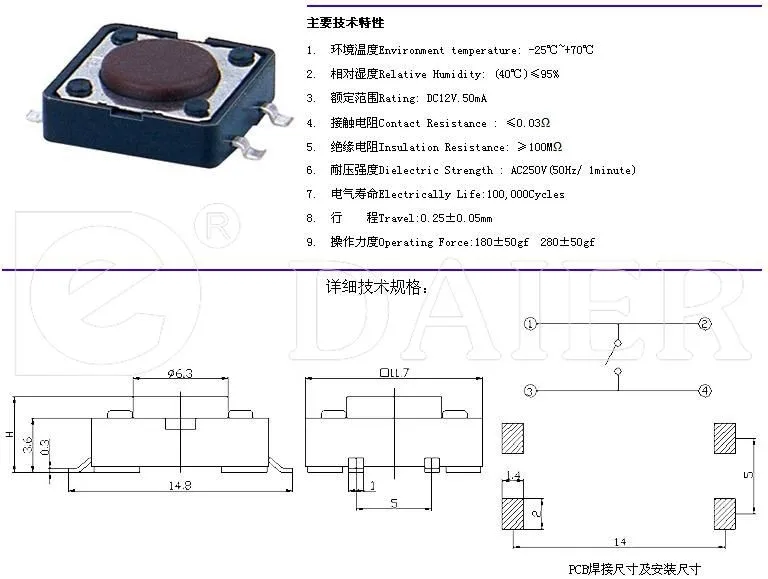

Product Description
Item
Plastic 4 Pin 12x12 Tact Switch Lever Switch SMD
Rating
50mA 12VDC
Pin
4 Pin
Operating Direction
Top Push
Operating Life
Over 100,000 cycles
Travel
0.25mm
Operating Temperature
-25℃~+70℃ lever switch smd

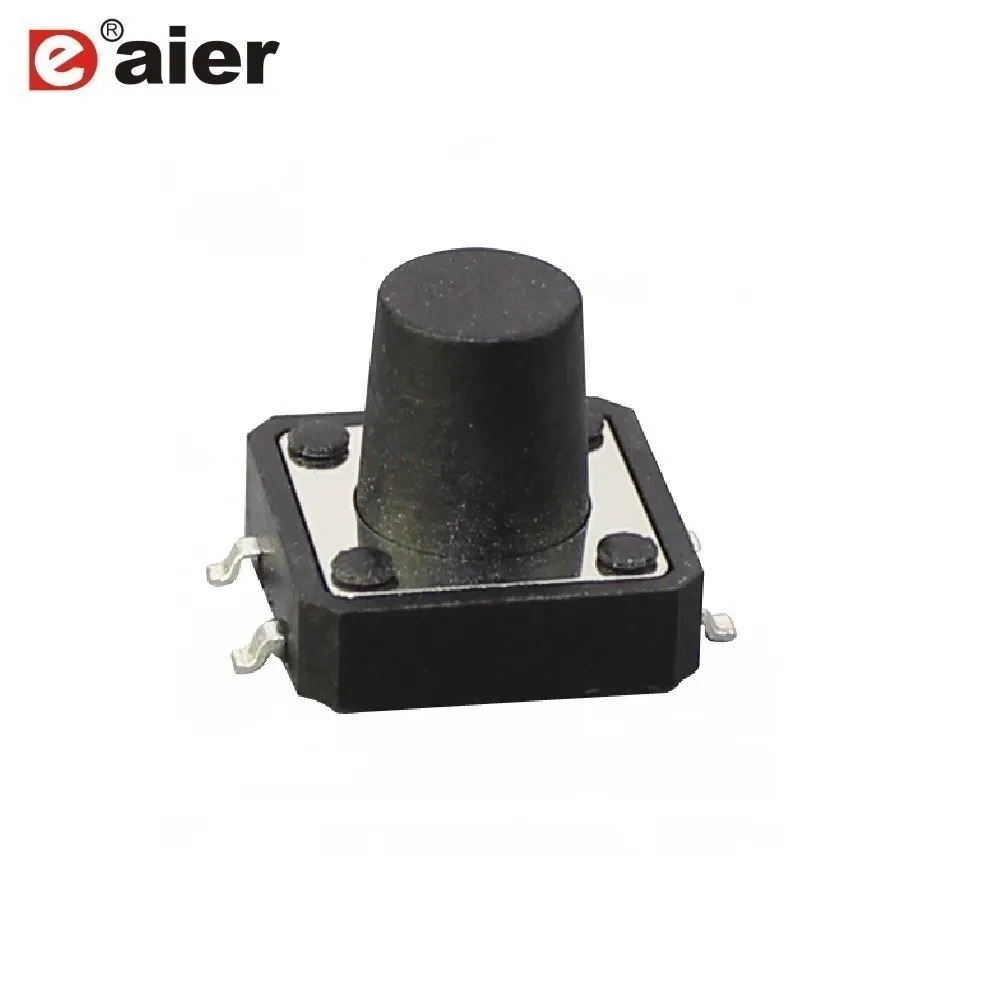

Product Show

KFC-012A-H is an on/off electronic smd button that is only on when the button is pressed or if there is a definitive change in pressure.

It was used for circuit board, there are many different kinds of height for the switch knob, the standard height range is 4.3mm to 21mm.

The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
