Home > Products > Double Action Switch Normally Closed Tact Switch
Double Action Switch Normally Closed Tact Switch
Click on the image to view the original image
Product： views：2Double Action Switch Normally Closed Tact Switch
Branch： Daier, Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:27
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier, Daier
Model Number:
KFC-A06-H, KFC-A06-H
Protection Level:
IP40, IP40
Max. Current:
50 MA, 50 MA
Max. Voltage:
12VDC, 12VDC
Switch Type:
tactile switch
Function:
Momentary
Button Color:
Black
Certificate:
CE,Rohs
Free Sample:
YES
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton box for double action momentary tact switch products
Port
shanghai/ningbo
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)10To be negotiated

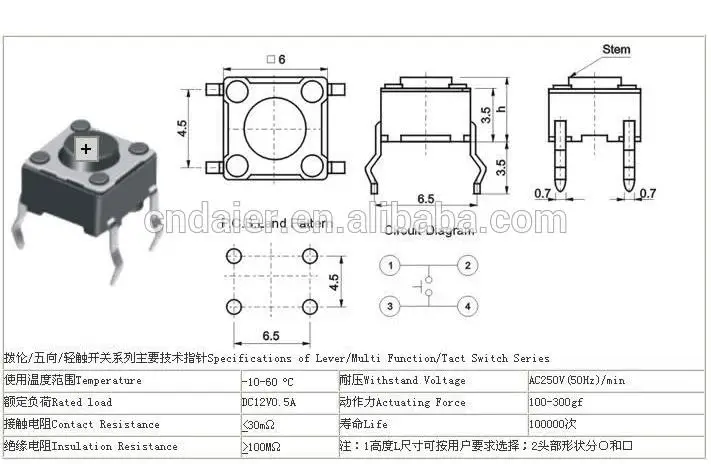

Product Description
Maximum Voltage
12VDC
Thermal Current
50 MA
Insulation Resistance
100MΩ(minDC 250V)
Dielectric Strength
AC250V(50/60Hz for 1minute)
Electrically Life
50,000cycles
Environment Temperature:
-25°C-70°C
Operating Force
180/250(±30gf)
Product Show
